13A-11
FUEL SUPPLY
Fuel flow: Check
K4M
13A
CHECK
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Switch off the ignition.

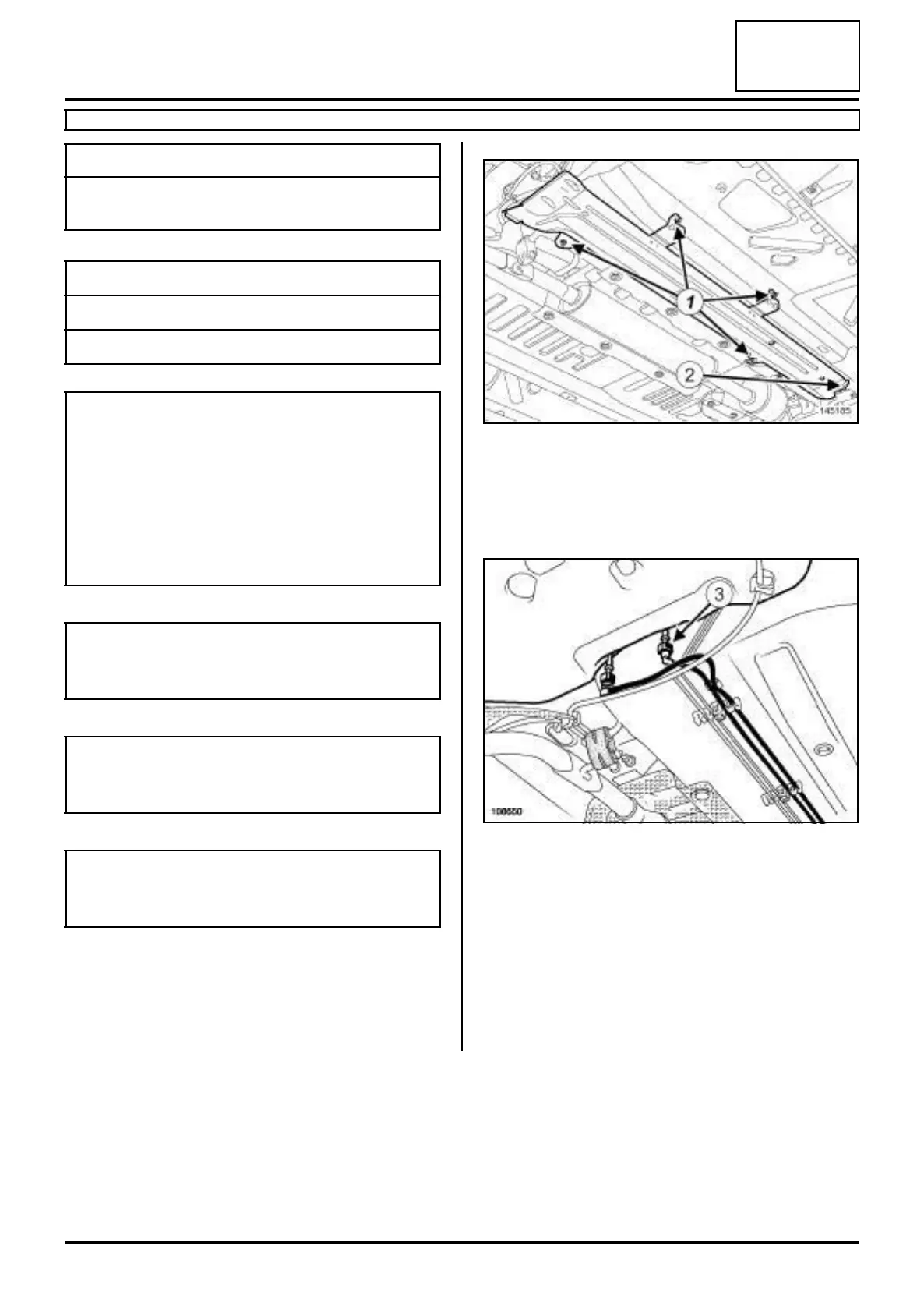

a Remove:
- the nuts (1) and the bolt (2) from the fuel pipe pro-
tector,
- the fuel pipe protector.
a Disconnect the fuel supply pipe union (3) .
Special tooling required
Mot. 1311-08 Union for taking fuel pres-
sure measurements.
Tightening torquesm
fuel pipe protector nuts 7 N.m
fuel pipe protector bolt 7 N.m
IMPORTANT
During this operation, be sure to:
- refrain from smoking or bringing red hot objects
near the working area,
-beware of fuel splashes when disconnecting the
union,
- protect sensitive areas from fuel outflow.
IMPORTANT
Wear goggles with side protectors for this opera-
tion.
IMPORTANT
Wear leaktight gloves (nitrile type) for this opera-
tion.
WARNING
To avoid any corrosion or damage, protect the
areas on which fuel is likely to run.
145185
108650
