13A-10
FUEL SUPPLY
Fuel pressure: Check
K4M
13A

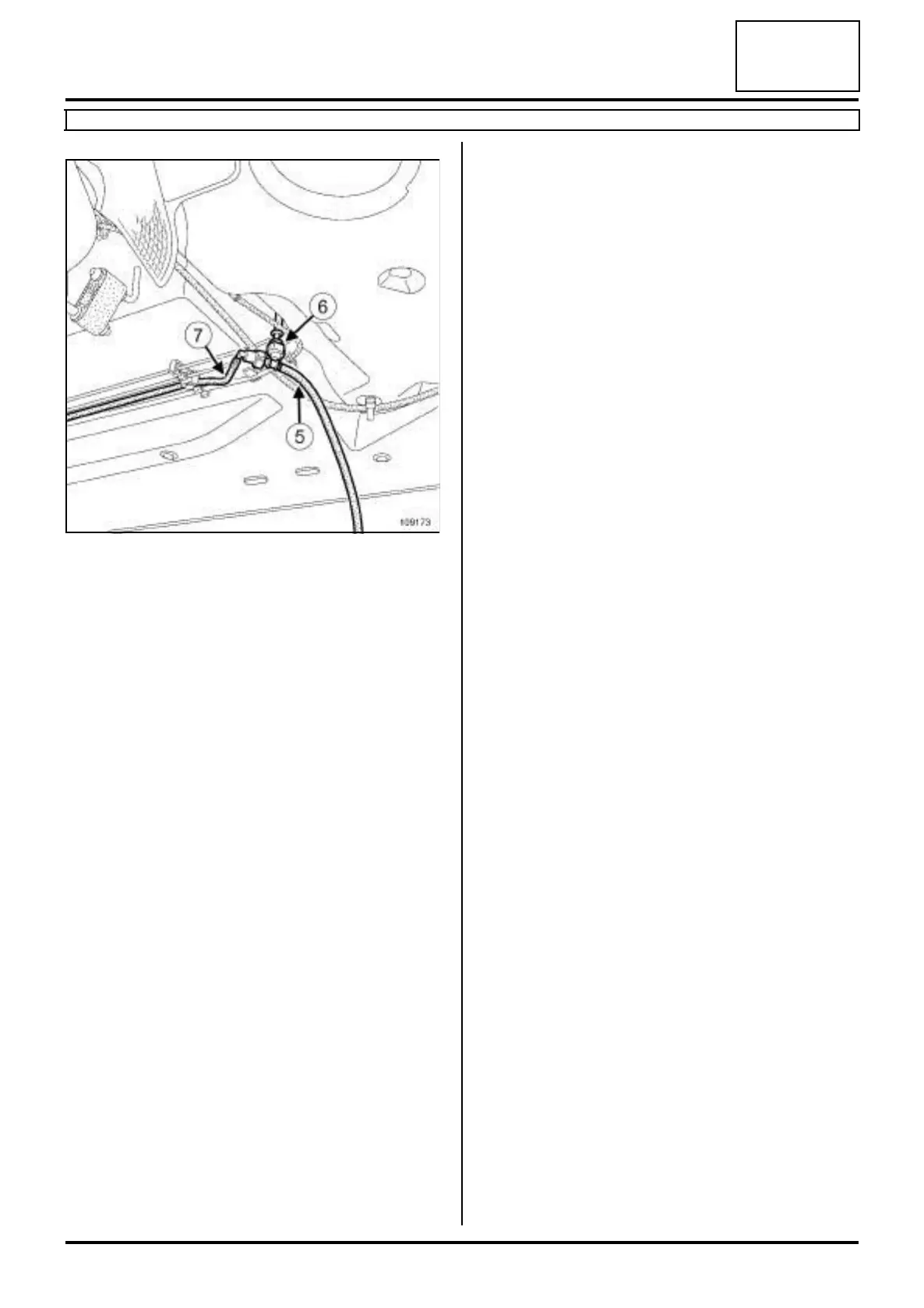

a Connect:
-the « T » union (Mot. 1311-08) (6) to the fuel tank
outlet pipe,
-the pipe (5) fitted with a pressure gauge contained
in the test kitonto the « T » union (6) ,
-the fuel supply pipe (7) to the « T » union (6) .
a Start the vehicle to run the fuel pump.
a Determine the pressure:
-the pressure must be constant (approximately 3.5
bar ±±
±±
0.2 bar),
-It may take a few seconds to obtain a correct pres-
sure reading.
a Disconnect:
-the pipe fitted with the pressure gauge contained in
the test kitfrom the « T » union,
-the « T » union (Mot. 1311-08) from the fuel tank
outlet pipe.
a Connect the fuel supply pipe union to the fuel tank
outlet pipe.
a Refit the fuel supply pipe protector.
a Torque tighten:
-the fuel pipe protector nuts (7 N.m),
-the fuel pipe protector bolt (7 N.m).
109173
