55A-11
EXTERIOR PROTECTION
Rear wheel arch liner: Removal - Refitting
55A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove the rear wheel on the side concerned (see
Wheel: Removal - Refitting) (35A, Wheels and ty-
res).
II - REMOVAL OPERATION

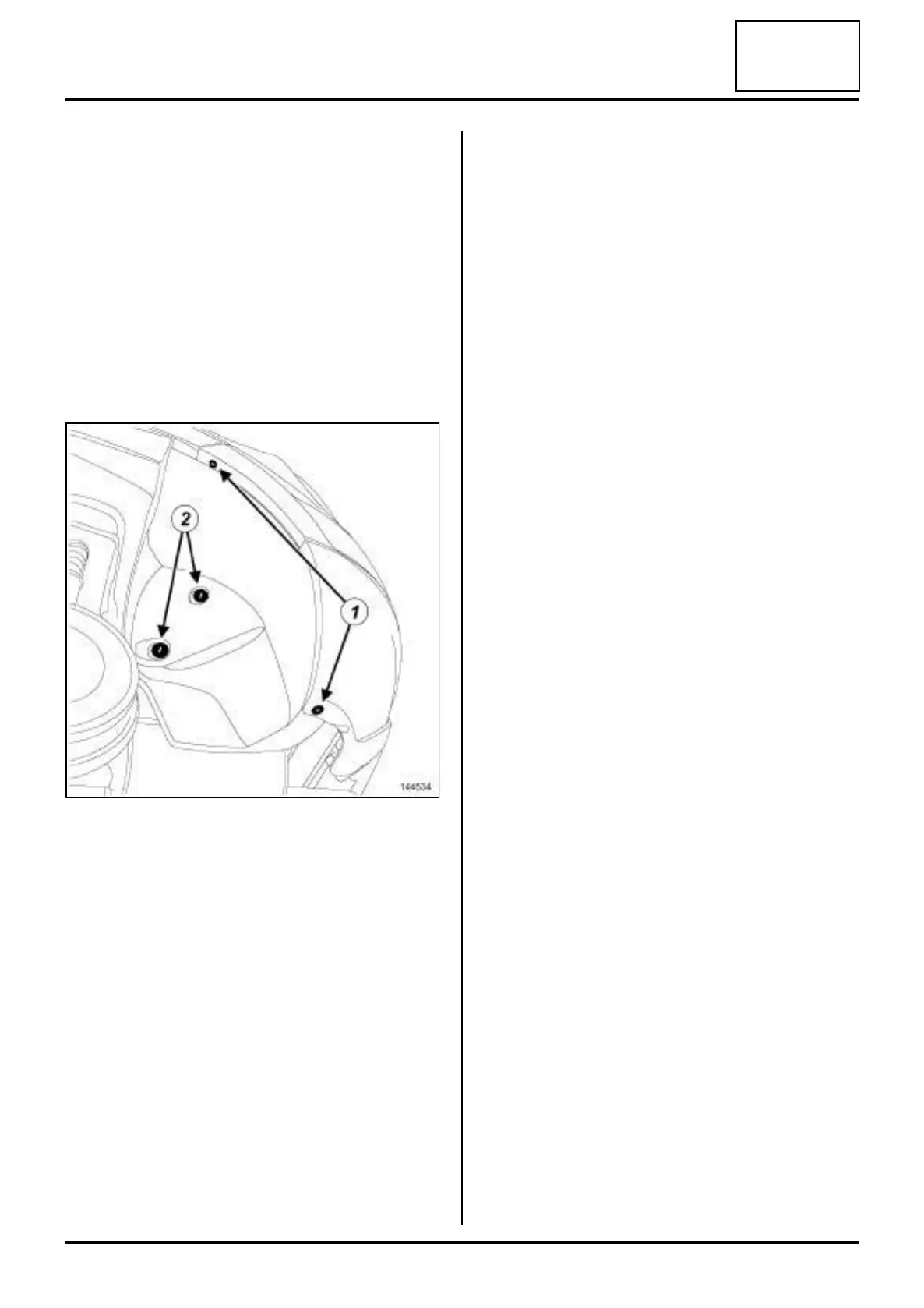

a Remove:
-the bolts (1) ,
-the clips (2) .
-the rear wheel arch liner.
REFITTING
I - REFITTING PREPARATION OPERATION
a Check the condition of the clipsand replace them if
necessary.
II - REFITTING OPERATION
a Proceed in the reverse order to removal.
144534
