37A-5
MECHANICAL COMPONENT CONTROLS
Master cylinder - front right-hand calliper brake pipe: Removal - Refitting
LEFT-HAND DRIVE, and WITHOUT ANTI-LOCK BRAKING SYSTEM
37A
REMOVAL
REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Fit a pedal press to the brake pedal to limit outflow.
a Remove:
-the front right-hand wheel (see 35A, Wheels and
tyres, Wheel: Removal - Refitting, page 35A-1) .
-the front engine cover (if fitted to the vehicle).

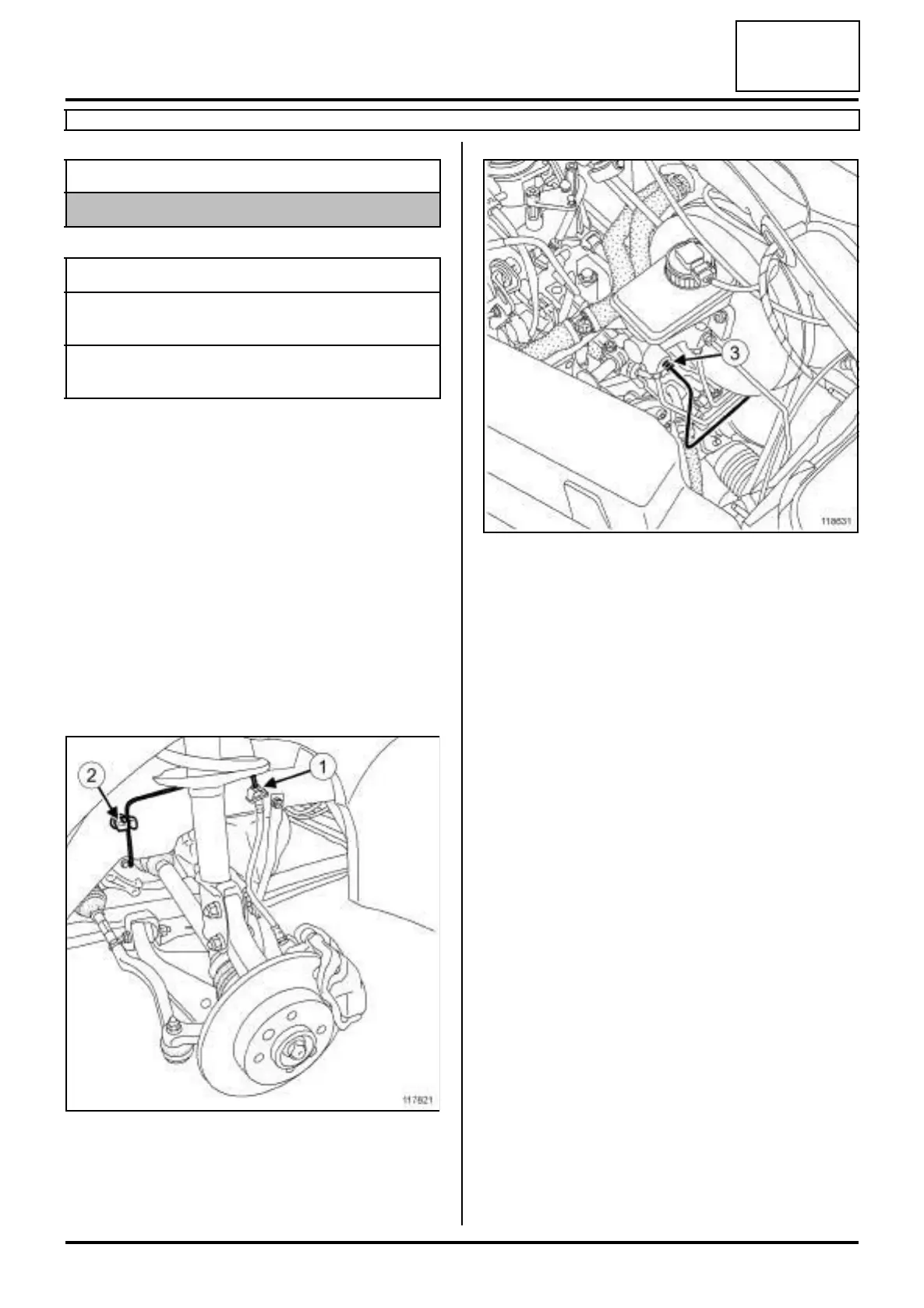

a Unscrew the brake pipe union (1) on the brake hose.
a Remove the brake pipe from the retaining bracket.
a Unclip the brake pipe from its clip (2) .
a Unscrew the brake pipe union (3) from the master
cylinder.
a Remove the soundproofing clips on the bulkhead (if
fitted to the vehicle).
a Move aside the soundproofing (if fitted to the vehi-
cle).
a Unclip the brake pipe from its clip.
a Remove the brake pipe between the master cylinder
and the front right-hand brake hose.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
a Refit the brake pipe between the master cylinder
and the front right-hand brake hose.
a Refit the brake pipe on the retaining bracket.
a Clip the brake pipe into its clip.
a Screw the brake pipe union on the front right-hand
brake hose.
a Screw the brake pipe union on the master cylinder.
a Torque tighten:
- the brake pipe union on the master cylinder (14
N.m),
- the brake pipe union on the brake hose (14
N.m).
Equipment required
pedal press
Tightening torquesm
brake pipe union on the
master cylinder
14 N.m
brake pipe union on the
brake hose
14 N.m
117821
118631
