10A-37
ENGINE AND CYLINDER BLOCK ASSEMBLY
Oil-coolant heat exchanger: Removal - Refitting
K9K, and 796
10A
a
REMOVAL
REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the engine cover,
- the engine undertray,
- the closure panel component under the diesel filter.
a Drain the cooling system (see 19A, Cooling, Cool-
ing system: Draining - Refilling, page 19A-6) .
Tightening torquesm
oil heat exchanger bolt 39 N.m
oil filter support bolt 28 N.m

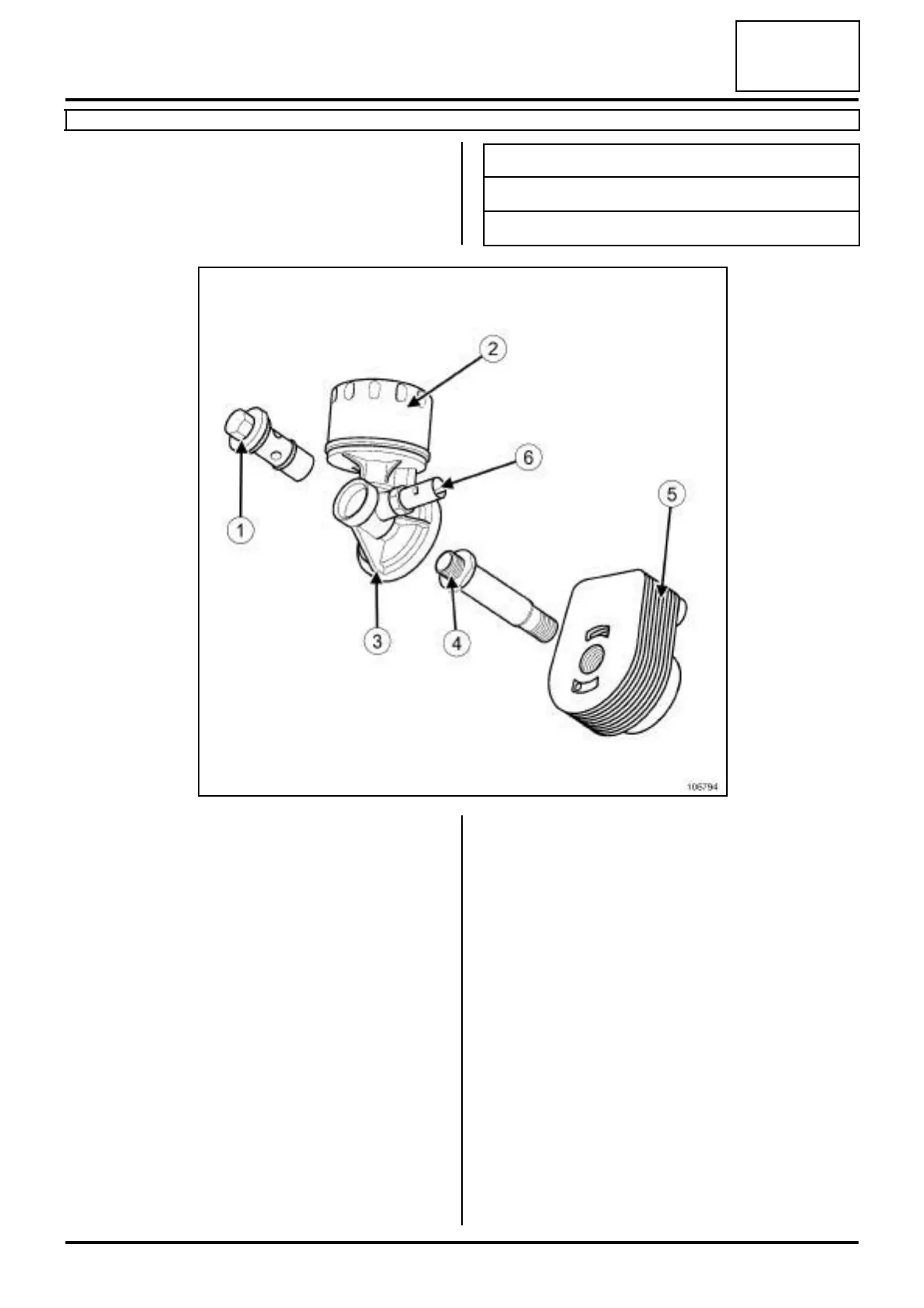

106794
(1) Oil filter holder mounting bolt
(2) Oil filter
(3) Oil filter holder
(4) Coolant - oil heat exchanger
mounting bolts
(5) Coolant - oil heat exchanger
(6) Oil pressure sensor
