10A-38
ENGINE AND CYLINDER BLOCK ASSEMBLY
Oil-coolant heat exchanger: Removal - Refitting
K9K, and 796
10A

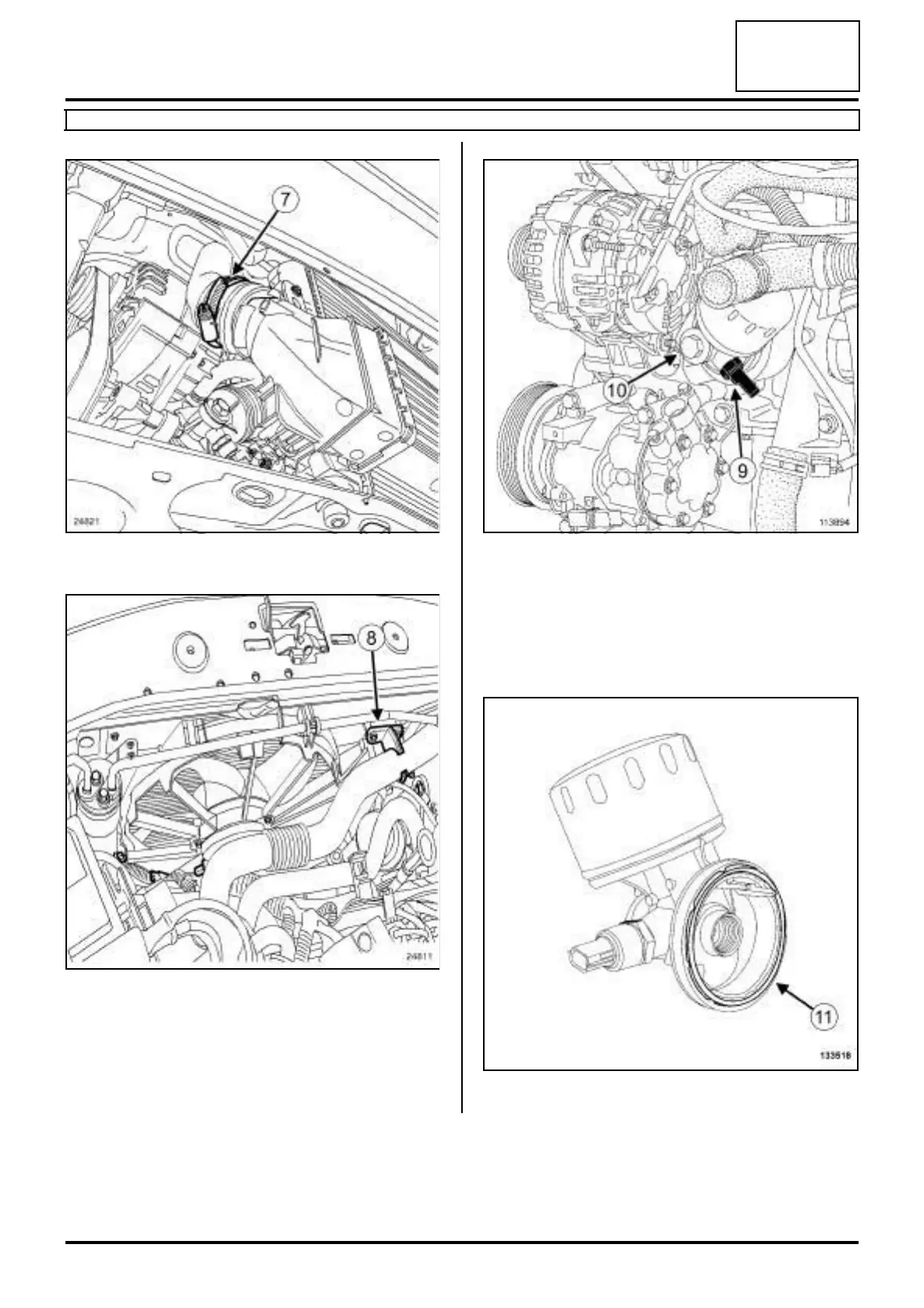

a Disconnect the air outlet duct (7) on the intercooler.
a Move aside the air outlet duct.
a Remove the air outlet duct support (8) from the fan
assembly mounting.
a Disconnect the oil pressure sensor connector (9) .
a Place a container under the engine on the oil filter
side.
a Remove the bolt (10) from the oil filter support.
a Remove the oil filter support.
a Remove the seal (11) from the oil filter support.
24821
24811
113894
133518
