10A-39
ENGINE AND CYLINDER BLOCK ASSEMBLY
Oil-coolant heat exchanger: Removal - Refitting
K9K, and 796
10A
a Remove:

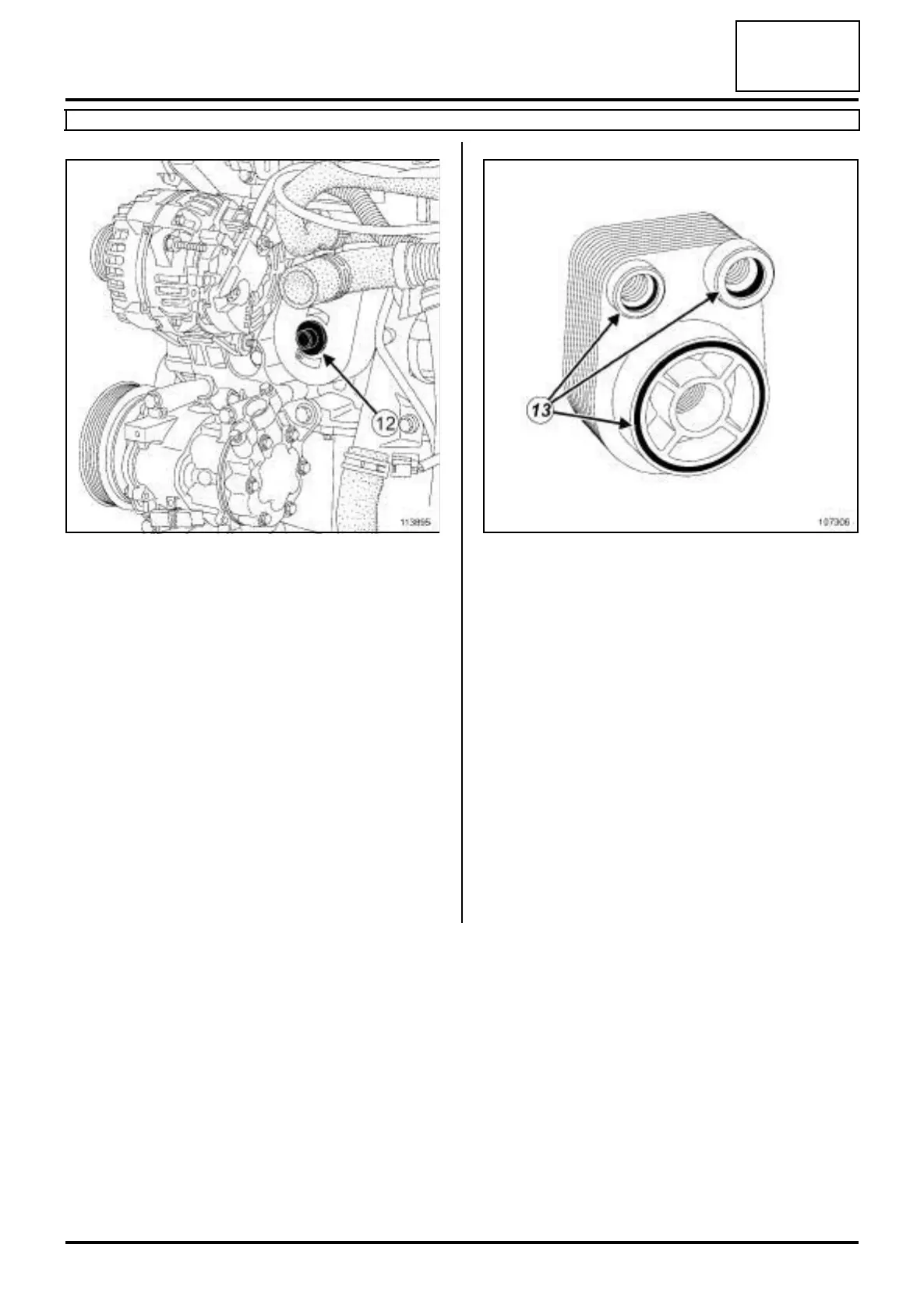

-the bolt (12) from the oil-coolant heat exchanger,
-the oil-water heat exchanger.
a Using a clean cloth, clean up any oil and coolant
runs on the cylinder block and on the oil filter sup-
port.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: coolant-engine oil
heat exchanger seal on the cylinder block.
a Always replace:
-the seals of the oil filter support bolt,
-the oil filter support seal.
a Remove the oil-water heat exchanger seals (13) .
a Use SURFACE CLEANER (see Vehicle: Parts
and consumables for the repair) (04B, Consuma-
bles - Products) to clean and degrease:
-the housing of each seal in the oil-water heat ex-
changer if it is to be reused,
-the oil-coolant heat exchanger seal face if it is to be
reused,
- the mating face of each seal on the coolant pump
inlet pipe,
- the joint face on the cylinder block,
- the housing of each oil filter support seal,
- the housing of each seal in the oil filter support.
113895 107306
