10A-40
ENGINE AND CYLINDER BLOCK ASSEMBLY
Oil-coolant heat exchanger: Removal - Refitting
K9K, and 796
10A

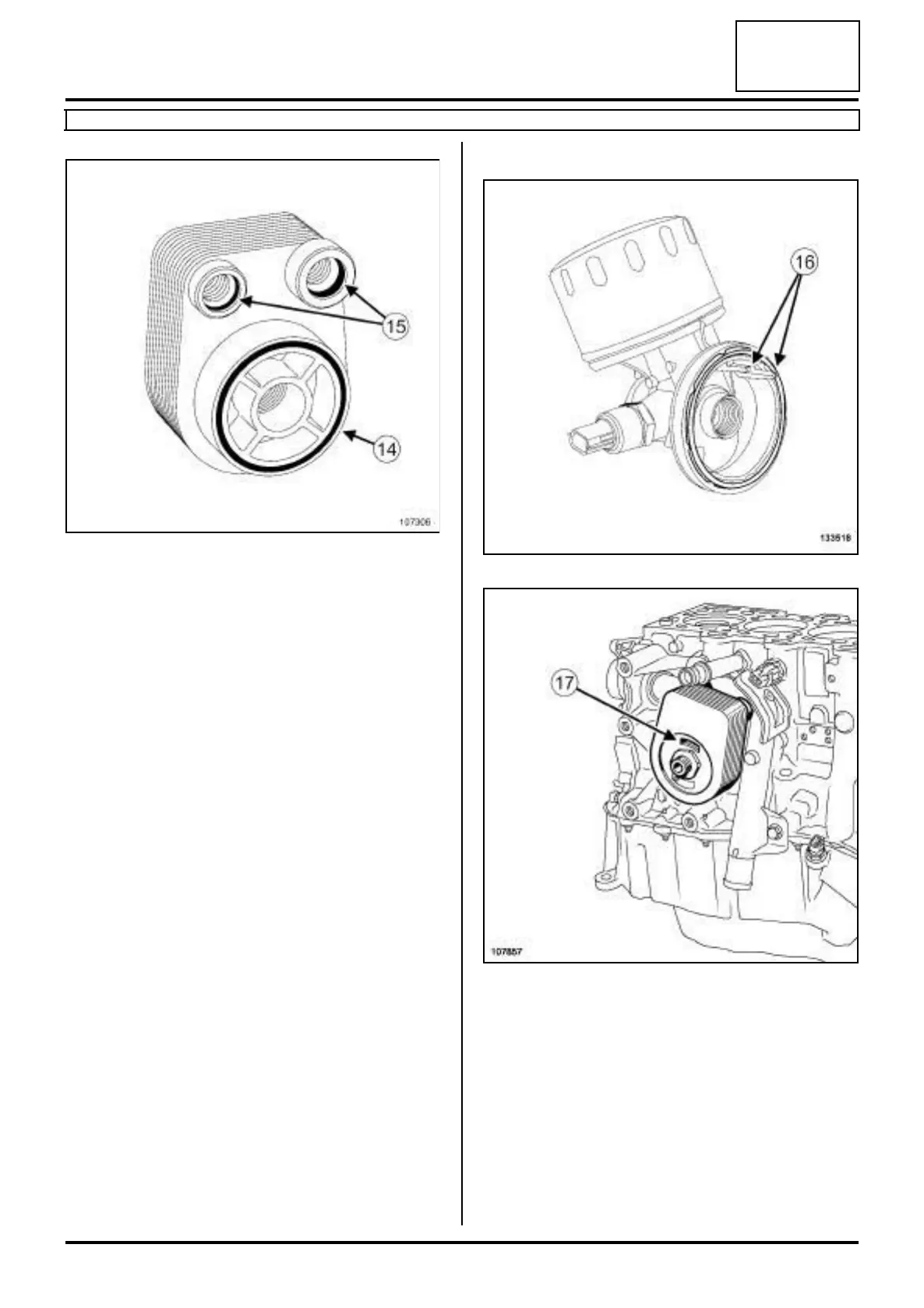

a Refit new seals (14) and (15) on the oil-water heat
exchanger.
a Apply soapy water to the two seals (15) in contact
with the coolant pump inlet pipe.
II - REFITTING OPERATION FOR PART
CONCERNED
a Refit the oil-water heat exchanger.
a Torque tighten the oil heat exchanger bolt (39
N.m).
III - FINAL OPERATION
a Refit:
-a new seal in the housing of the oil filter support,
- the oil filter support, positioning the lug (16) in the
hole (17) of the oil-water heat exchanger.
a Refit the oil filter holder bolt.
a Torque tighten the oil filter support bolt (28 N.m).
a Connect the oil pressure sensor connector.
a Refit the air outlet duct support on the fan assembly
mounting.
107306
133518
107857
