38C-9
ANTI-LOCK BRAKING SYSTEM
Rear wheel speed sensor: Removal - Refitting
ANTI-LOCK BRAKING SYSTEM
38C
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove the rear wheel (see 35A, Wheels and ty-
res, Wheel: Removal - Refitting, page 35A-1) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED

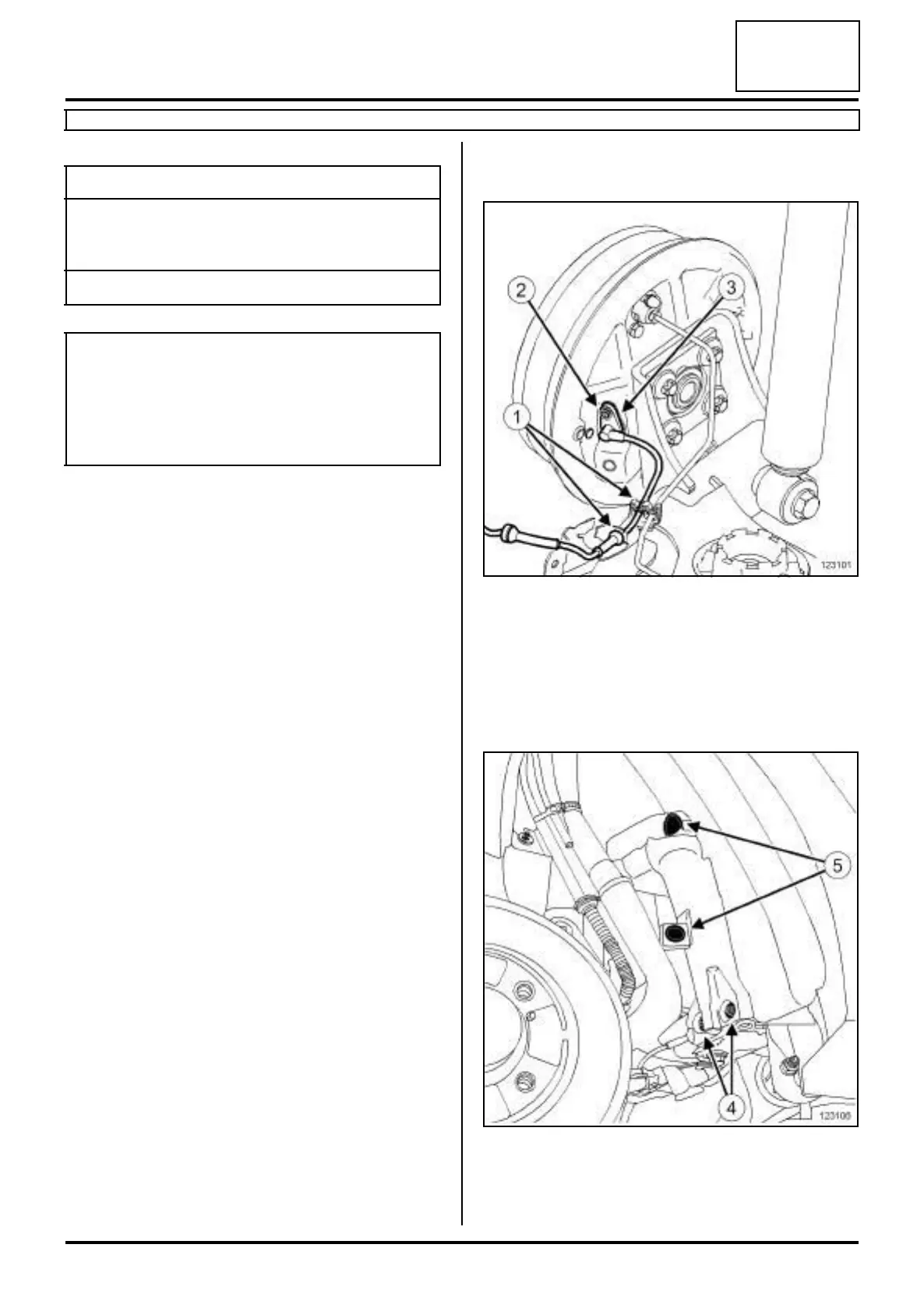

a Detach the rear wheel speed sensor at (1) .
a Remove the rear wheel speed sensor bolt (2) on the
brake back-plate.
a Disconnect the rear wheel speed sensor (3) from the
brake back-plate retaining bracket.
a Remove:
- the nuts (4) from the rear wheel speed sensor pro-
tective screen,
Tightening torquesm
rear wheel speed sen-
sor protective screen
nuts
14 N.m
wheel speed sensor bolt 7 N.m
IMPORTANT
To avoid all risk of damage to the systems, apply
the safety and cleanliness instructions and opera-
tion recommendations before carrying out any
repair (see 38C, Anti-lock braking system, ABS:
Precautions for the repair, page 38C-4) .
123101
123106
