38C-10
ANTI-LOCK BRAKING SYSTEM
Rear wheel speed sensor: Removal - Refitting
ANTI-LOCK BRAKING SYSTEM
38C
-the clips (5) from the rear wheel speed sensor pro-
tective screen.
a Pull away and slightly fold down the rear wheel
speed sensor protective screen.

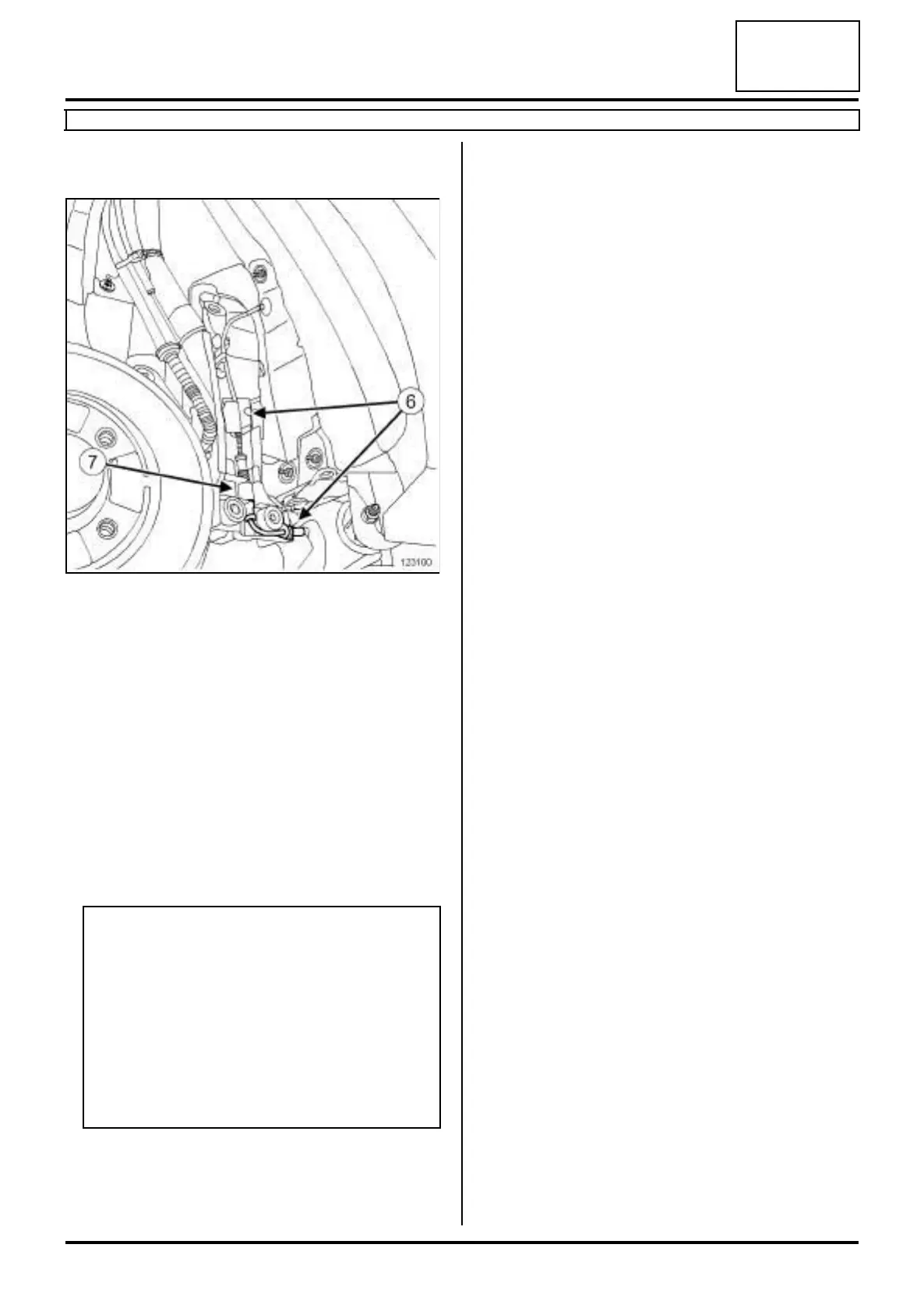

a Detach the rear wheel speed sensor at (6) .
a Disconnect the wheel speed sensor connector (7)
on the rear ABS wiring.
a Remove the rear wheel speed sensor.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
a
a Connect the wheel speed sensor connector on the
rear ABS wiring.
a Clip the wheel speed sensor onto the rear wheel
speed sensor protective screen.
a Refit:
- the rear wheel speed sensor protective screen on
the body,
- the rear wheel speed sensor protective screen
nuts,
- the rear wheel speed sensor protective screen
clips.
a Torque tighten the rear wheel speed sensor pro-
tective screen nuts (14 N.m).
a Refit the rear wheel speed sensor on the brake
back-plate retaining bracket.
a Refit the rear wheel speed sensor bolt.
a Torque tighten the wheel speed sensor bolt (7
N.m).
a Clip on the rear wheel speed sensor.
II - FINAL OPERATION
a Refit the rear wheel (see 35A, Wheels and tyres,
Wheel: Removal - Refitting, page 35A-1) .
123100
WARNING
To avoid damaging the wheel speed sensor
cable:
-Do not tension the cable,
-Do not twist the cable,
-Check that there is no contact with the sur-
rounding components,
-Do not use tools that may damage the cable.
