36B-5
POWER ASSISTED STEERING
Power-assisted steering pump: Removal - Refitting
K9K, and STANDARD HEATING RECIRCULATION
36B
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see 02A, Lift-
ing equipment, Vehicle: Towing and lifting).
a Remove:
-the front right-hand wheel (see 35A, Wheels and
tyres, Wheel: Removal - Refitting, page 35A-1) ,
-the engine undertray,
-the front right-hand wheel arch liner (see Front
wheel arch liner: Removal - Refitting) (55A, Ex-
terior protection),
-the accessories belt (see Accessories belt: Re-
moval - Refitting) (11A, Top and front of engine).
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Fit the hose clamps on the hydraulic inlet and outlet
pipes of the power assisted steering pump.
a Remove the hydraulic input hose clip on the pump
using the.

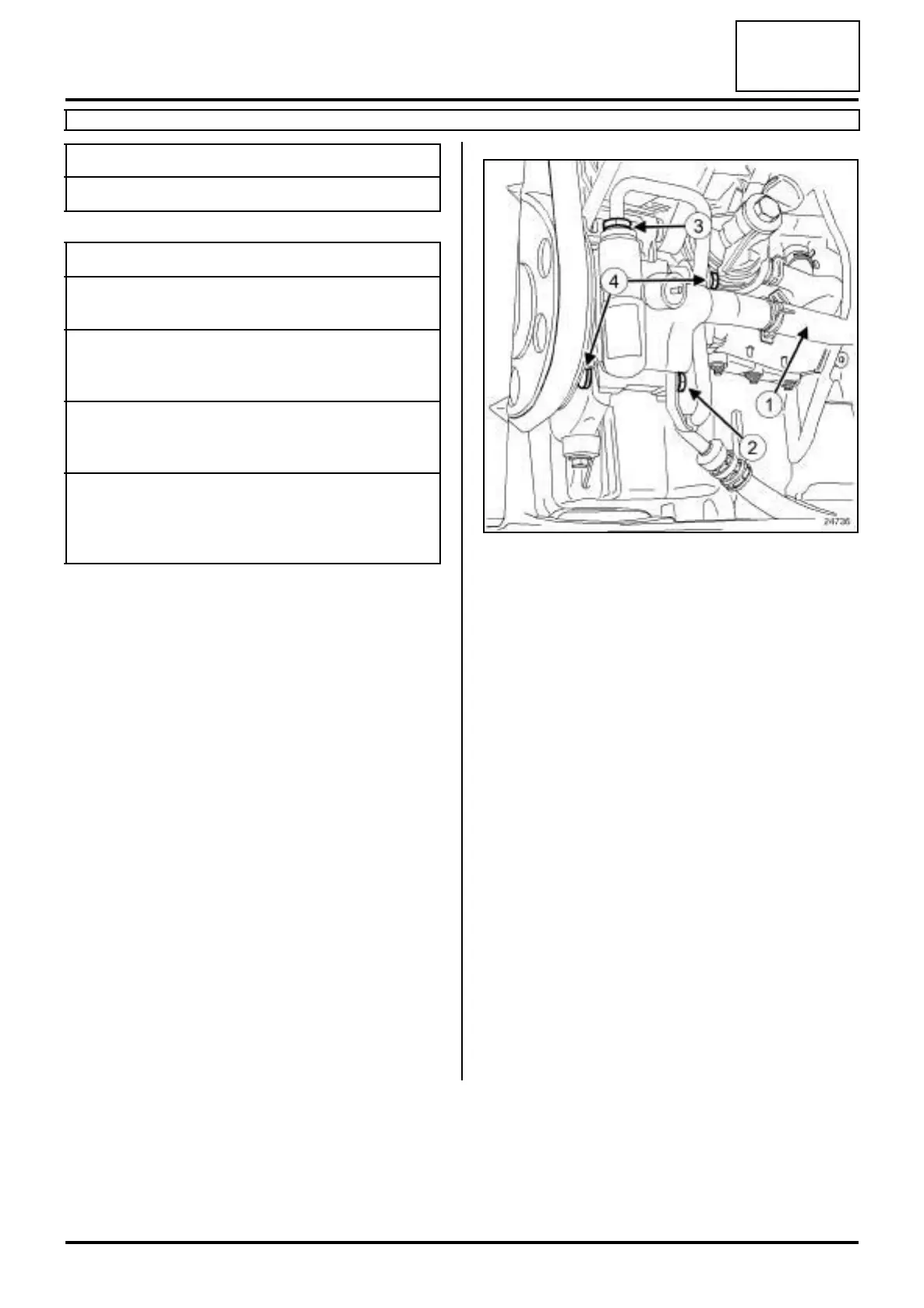

a Disconnect the inlet hose (1) .
a Remove the bolt (2) from the high pressure pipe
support on the power-assisted steering pump.
a Unscrew the power-assisted steering pump high
pressure pipe union (3) .
a Disconnect the power-assisted steering pump high
pressure pipe.
a Fit plugs to the pipe and power assisted steering
pump openings to prevent impurities from entering.
a Remove the power-assisted steering pump bolts (4)
on the multifunction support.
Special tooling required
Ms. 583 Pipe clamps.
Tightening torquesm
power-assisted steering
pump bolts
21 N.m
power-assisted steering
pump high pressure
union
21 N.m
power assisted steering
pump support bolt on
the sump
21 N.m
power-assisted steering
pump high pressure
pipe support mounting
bolt
21 N.m
24736
