Renault Duster 2007 - Page 571

36B-14
POWER ASSISTED STEERING
Power-assisted steering pump assembly: Removal - Refitting
K9K, and AIR CONDITIONING
36B

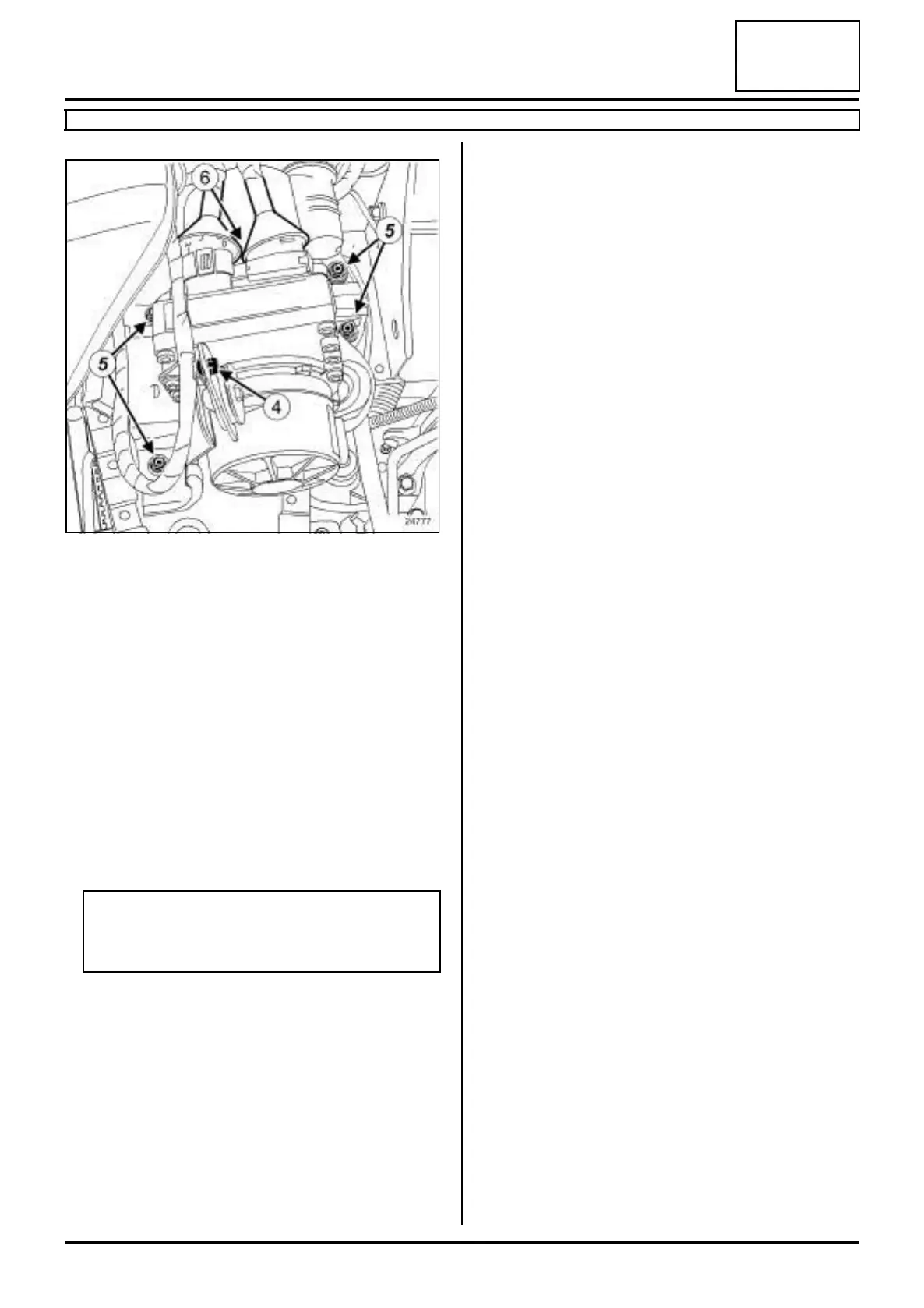

a Unclip the power-assisted steering pump assembly
wiring at (4) .
a Remove:
-the bolts (5) from the power-assisted steering
pump assembly,
-the nut (6) ,
-the pump assembly with its mounting.
REFITTING
I - REFITTING PREPARATION OPERATION
a Always replace the O-ring of the high pressure pipe.
II - REFITTING OPERATION FOR PART
CONCERNED
a Fit the pump assembly with its mounting.
a Refit the power-assisted steering pump assembly
mounting nut and bolts.
a Torque tighten:
-the pump assembly bolts (21 N.m),
-the power-assisted steering pump assembly
nut (21 N.m).
a Remove the plugs from the pipes and pump assem-
bly openings.
a Connect the high pressure pipe fitted with new seals
to the pump assembly.
a Refit the bolt securing the high pressure pipe brack-
et on the pump assembly.
a Torque tighten the high pressure pipe bracket bolt
on the pump assembly (21 N.m).
a Connect the low pressure pipe to the pump assem-
bly reservoir using theor (Mot. 1448).
a Clip the pump assembly wiring.
a Connect the pump assembly connectors.
III - FINAL OPERATION
a Fill the power-assisted steering circuit with ELF
RENAULT MATIC D2 oil (see Vehicle: Parts and
consumables for the repair) (04B, Consumables -
Products).
a Bleed the circuit by turning the steering wheel from
lock to lock with the engine stopped.
a Connect the battery (see Battery: Removal - Refit-
ting) (80A, Battery).
a Bleed the circuit by turning the steering wheel from
lock to lock with the engine running.
a Fill the oil to the correct level in the reservoir (if nec-
essary).
a Check that there are no leaks.
a Refit:
- the front left-hand wheel arch liner (see Front
wheel arch liner: Removal - Refitting) (55A, Ex-
terior protection),
- the front bumper (see Front bumper: Removal -
Refitting) (55A, Exterior protection),
- the front left-hand wheel (see 35A, Wheels and ty-
res, Wheel: Removal - Refitting, page 35A-1) .
a When replacing the pump assembly, program the
power-assisted steering pump assembly computer
(see Fault finding - Replacement of components)
(36B, Power-assisted steering).
24777
Note:
The power-assisted steering pump assembly is
sold with its mounting.
