12A-15
FUEL MIXTURE
Injector holder shim: Removal - Refitting
K4M
12A
REFITTING
I - REFITTING PREPARATION OPERATION
a The injector holder shim seal must always be re-
placed.
II - REFITTING OPERATION
a Fit:
-the injector holder shim,
-all the injector holder shim bolts.

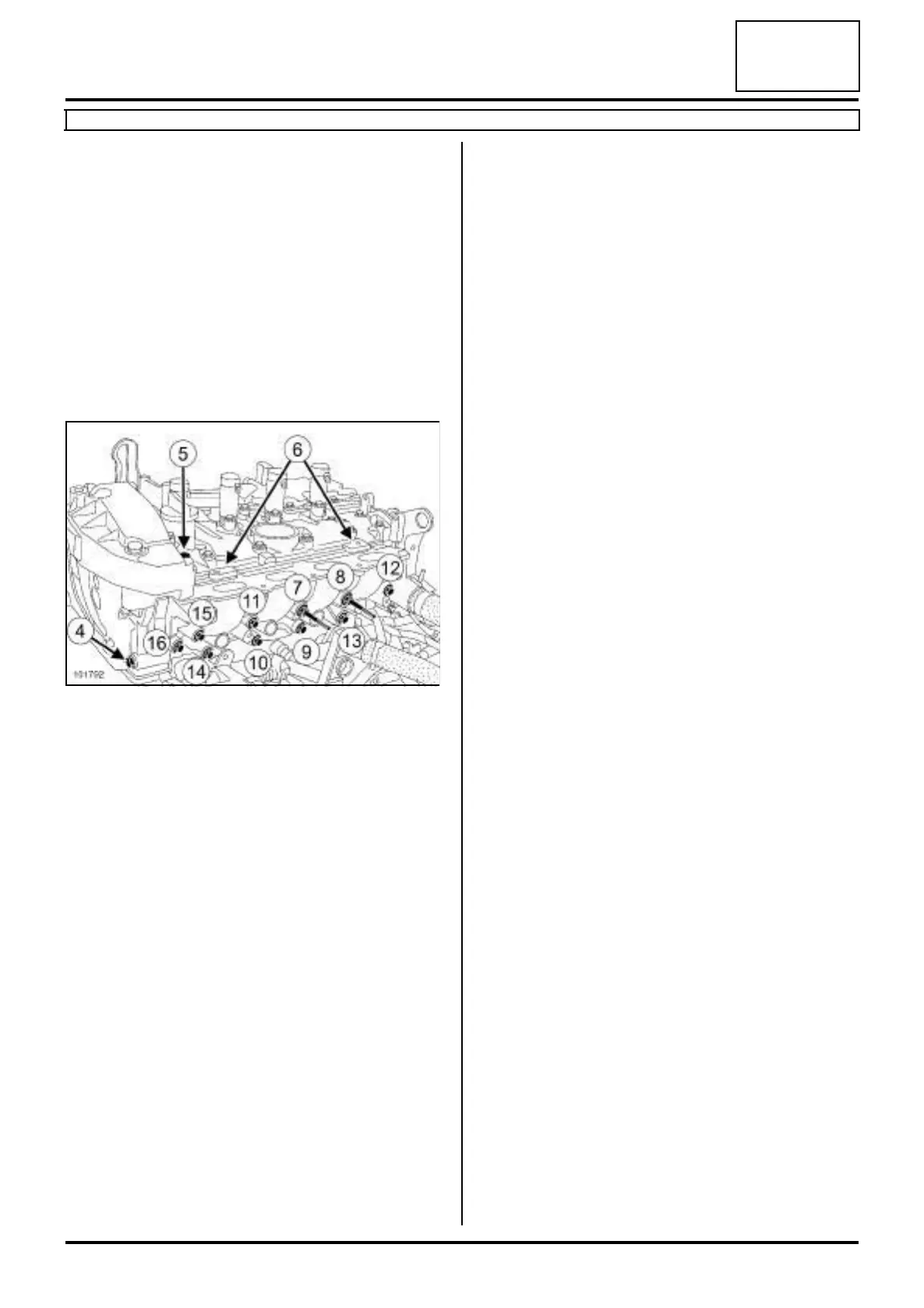

a Place the injector holder shim against:
-the upper timing cover by manually tightening the
bolt (4) ,
-the suspended engine mounting by manually tight-
ening the bolt (5) .
a Position the injector holder shim against the shims
(6) on the rocker cover.
a Tighten to torque and in order:
-the injector holder shim bolts (7) and (8) (25
N.m),
-the injector holder shim bolts 9 to 16 (21 N.m).
III - FINAL OPERATION
a Torque tighten:
-the upper timing cover bolt (41 N.m),
-the suspended mounting bolt (62N.m).
a Refit:
-the multifunction support (see 10A, Engine and
cylinder block assembly, Multifunction sup-
port: Removal - Refitting, page 10A-48) ,
- the injector rail (see 17B, Petrol injection, Injec-
tor rail - Injectors: Removal - Refitting, page
17B-10) ,
- the inlet distributor (see 12A, Fuel mixture, Inlet
distributor: Removal - Refitting, page 12A-12) .
a Connect the battery (see Battery: Removal - Refit-
ting) (80A, Battery).
101792
