Engine cooling fan assembly: Removal - Refitting
K4M
19A
a Disconnect the cooling fan assembly connector (5) .
a Unclip the engine cooling fan assembly wiring.
a Move aside the wiring of the engine cooling fan as-
sembly.
a Remove the engine cooling radiator bolts (6) .
a Disconnect:
- the engine cooling fan assembly connector (7) ,
- the engine cooling fan assembly resistor connector
(8) .
a Unclip the engine cooling fan assembly wiring.
a Move aside the wiring of the engine cooling fan as-
sembly.
a Remove the engine cooling radiator bolts (6) .

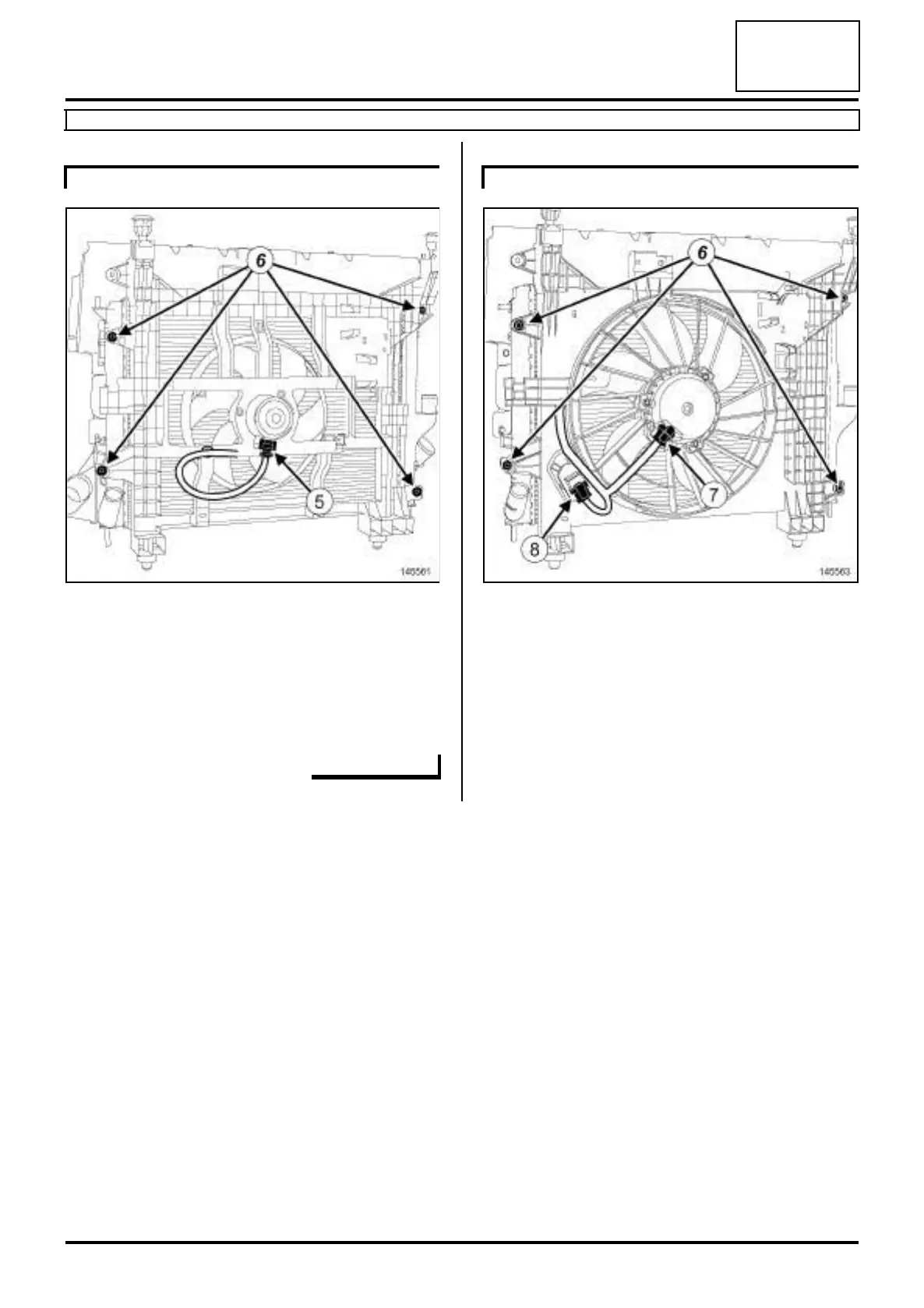

STANDARD HEATING RECIRCULATION
145561
AIR CONDITIONING
145563
