10A-6
ENGINE AND CYLINDER BLOCK ASSEMBLY
Crankshaft seal, gearbox end: Removal - Refitting
K4M or K9K
10A

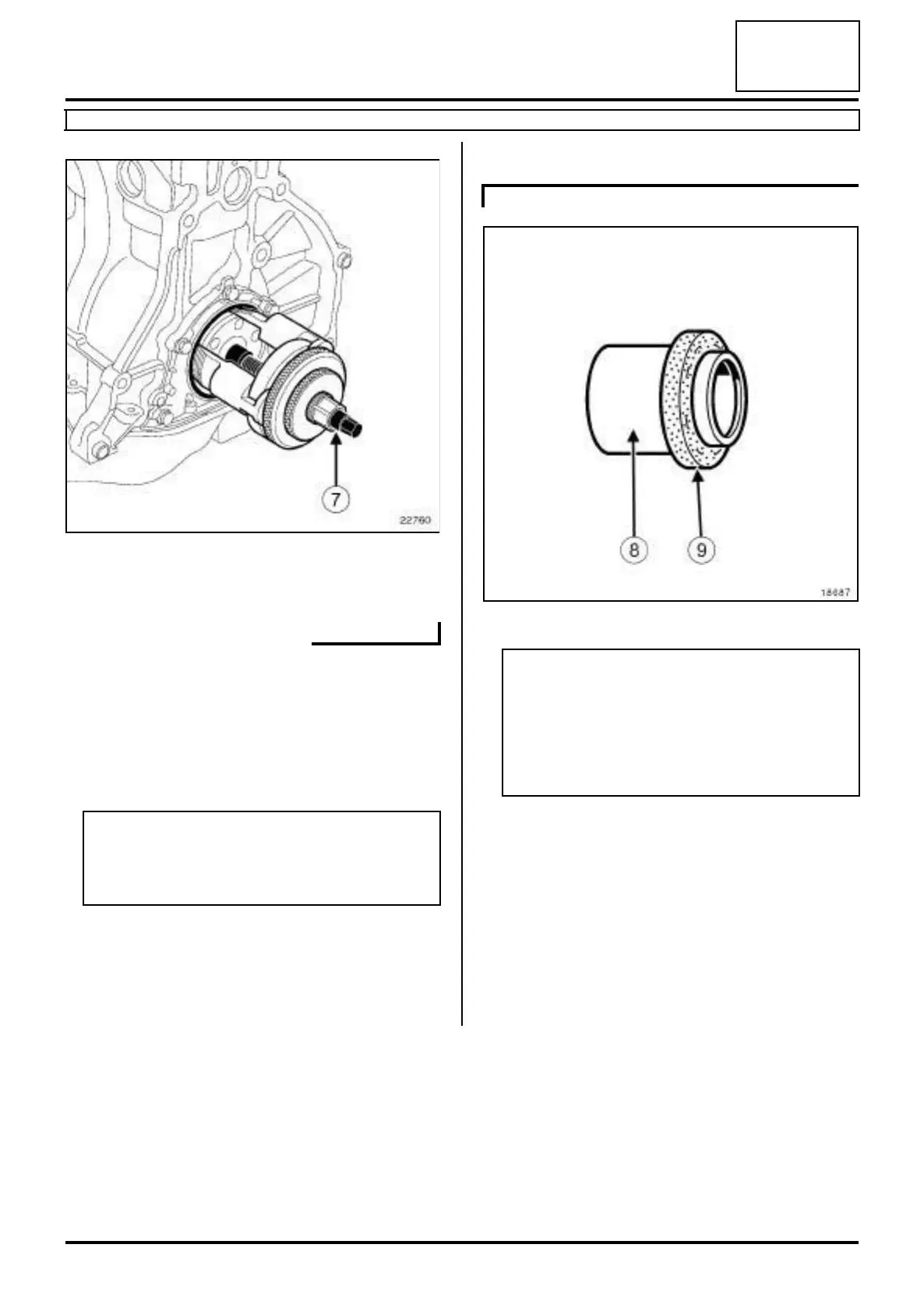

a Extract the crankshaft seal at the gearbox end by
screwing the threaded rod (7) .
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: Crankshaft seal on
gearbox end.
a Use SURFACE CLEANER (see Vehicle: Parts
and consumables for the repair) (04B, Consuma-
bles - Products) to clean and degrease:
-the crankshaft seal mating face,
-the crankshaft seal housing on the cylinder block.
II - REFITTING OPERATION
a
22760
WARNING
To ensure proper sealing, the gasket surfaces
must be clean, dry and not greasy (avoid any fin-
ger marks).
K9K
18687
Note:
This type of seal is extremely fragile.
Only touch the protective part (8) when handling
the gasket. It is strictly forbidden to touch the
seal (9) ; this is to prevent any oil leaks once the
oil seal is fitted to the engine.
