37A-45
MECHANICAL COMPONENT CONTROLS
Clutch master cylinder: Removal - Refitting
JR5, and LEFT-HAND DRIVE
37A

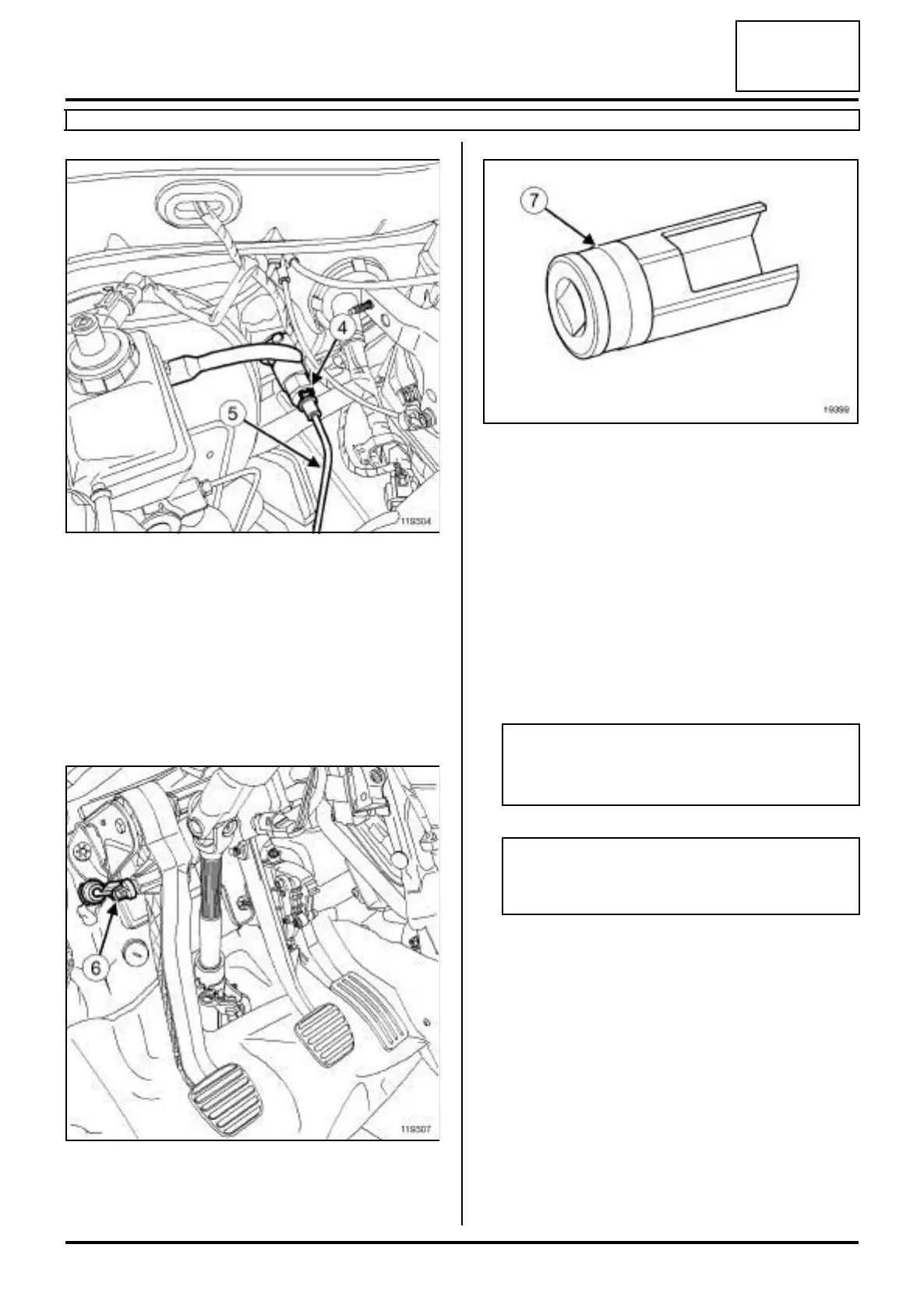

a Remove the retaining clip (4) of the clutch master
cylinder-slave cylinder connecting pipe on the clutch
master cylinder.
a Place a cloth under the clutch master cylinder.
a Disconnect the pipe (5) from the clutch master cylin-
der.
a Fit plugs into the openings.
a Disconnect the clutch master cylinder ball joint (6)
from the clutch pedal in the passenger compart-
ment.
a Remove the clutch master cylinder from the bulk-
head by turning it a quarter of a turn clockwise in the
engine compartment (bayonet type mounting) using
the tool (7) or.
REFITTING
I - REFITTING PREPARATION OPERATION
a Check the condition of the seals.
II - REFITTING OPERATION FOR PART
CONCERNED
a Refit the clutch master cylinder by turning it a quarter
of a turn anti-clockwise (bayonet type mounting) us-
ing the toolor.
a Refit the clutch master cylinder ball joint on the
clutch pedal in the passenger compartment.
a Remove the plugs from the openings.
a Refit the clutch master cylinder-slave cylinder con-
necting pipe on the clutch master cylinder.
119304
119307
19399
Note:
The clutch master cylinder has a foolproofing
device; it only fits in one position.
WARNING
Do not use the take-off pipes as a support when
fitting.
