13A-13
FUEL SUPPLY
Fuel flow: Check
K4M
13A

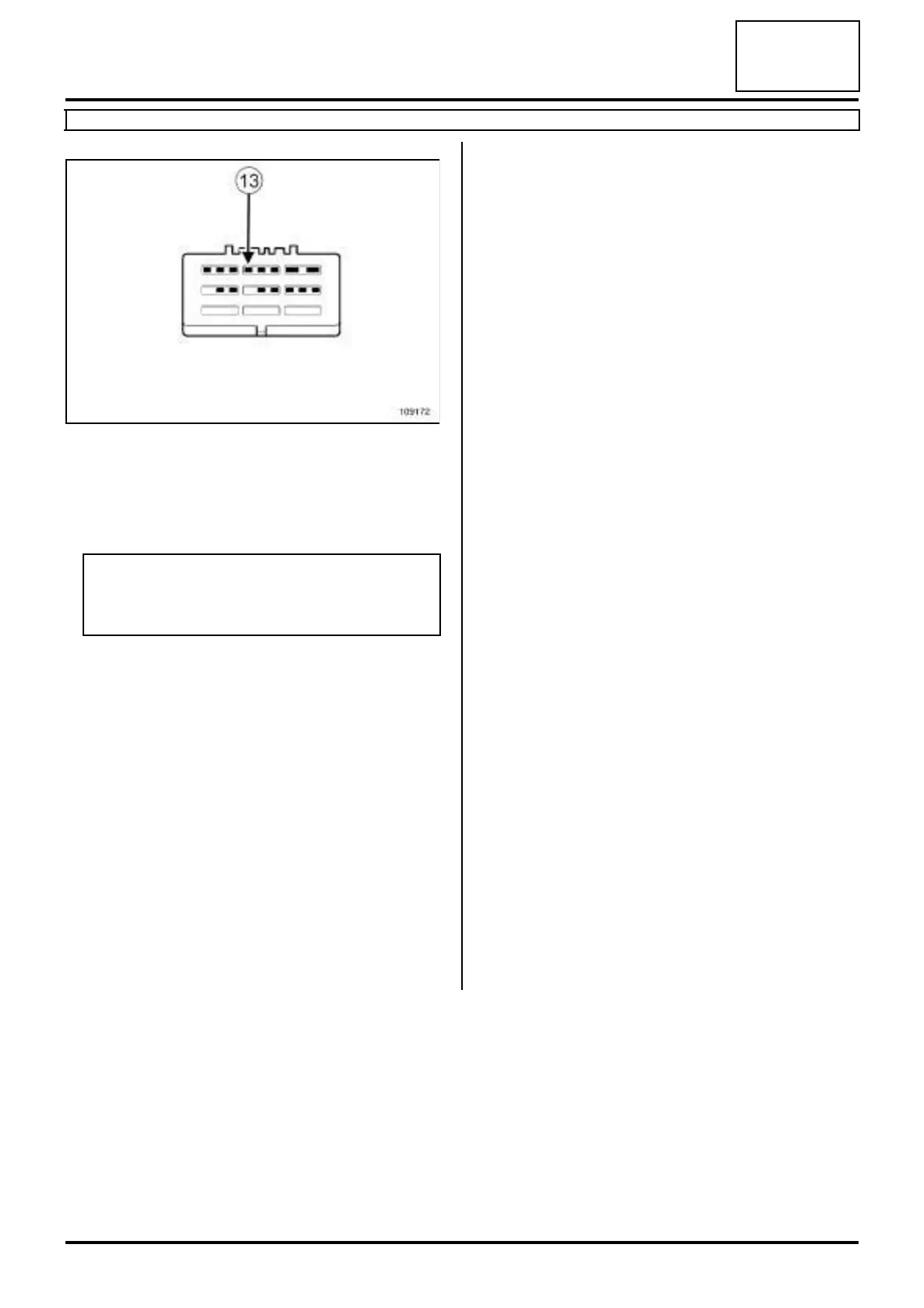

a Connect the connector terminal (13) to the + BAT-
TERY to operate the fuel pump.
a Note the time taken for the measuring cylinder to fill
up.
a Remove the terminal (13) of the + BATTERY con-
nector.
a Refit the Protection and Switching Unit cover.
a Disconnect:
-the pipe fitted with the pressure gauge contained in
the test kitfrom the « T » union,
-the « T » union (Mot. 1311-08) from the fuel tank
outlet pipe.
a Connect the fuel supply pipe union to the tank outlet
pipe.
a Refit the fuel supply pipe protector.
a Torque tighten:
-the fuel pipe protector nuts (7 N.m),
-the fuel pipe protector bolt (7 N.m).
109172
Note:
The minimum flow rate from the fuel pump is 60
l/h.
