11A-19
TOP AND FRONT OF ENGINE
Timing belt: Removal - Refitting
K4M
11A

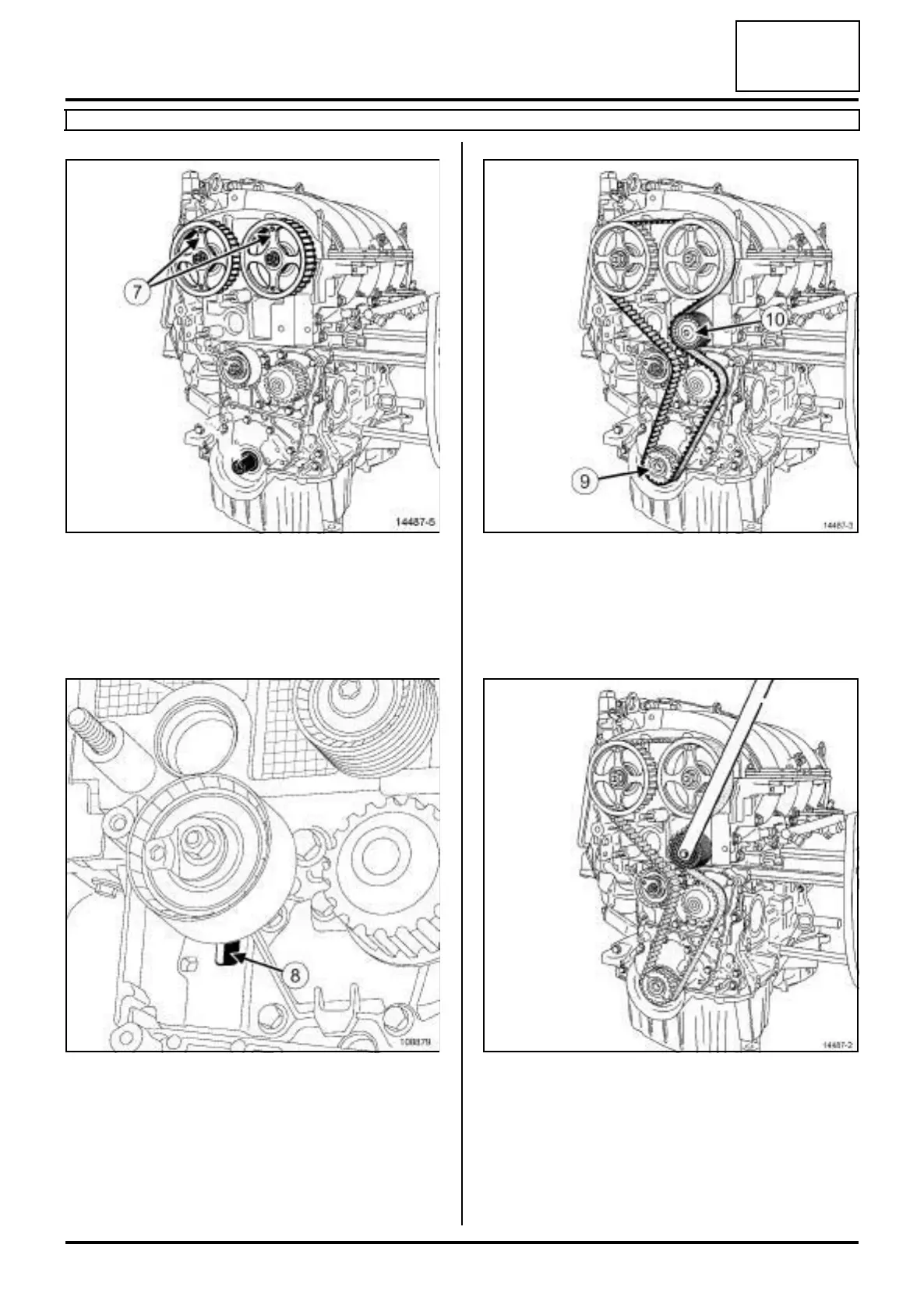

a Position the RENAULT badge (7) engraved on the
stem of each camshaft sprocket vertically and point-
ing upwards.
2 - Refitting
a Refit a new timing tensioning roller by positioning the
lug of the timing tensioning roller in the groove (8) .
a Screw on the timing tensioning roller nut without
tightening it.
a Refit:
- the crankshaft timing sprocket (9) ,
-a new timing belt,
-a new timing fixed roller (10) .
a Torque tighten the timing fixed roller bolt (50 N.m)
using the tool.
14487-5
108879
14487-3
14487-2
