11A-57
TOP AND FRONT OF ENGINE
Camshaft seal, timing end: Removal - Refitting
K4M
11A
II - REMOVAL OPERATION
a

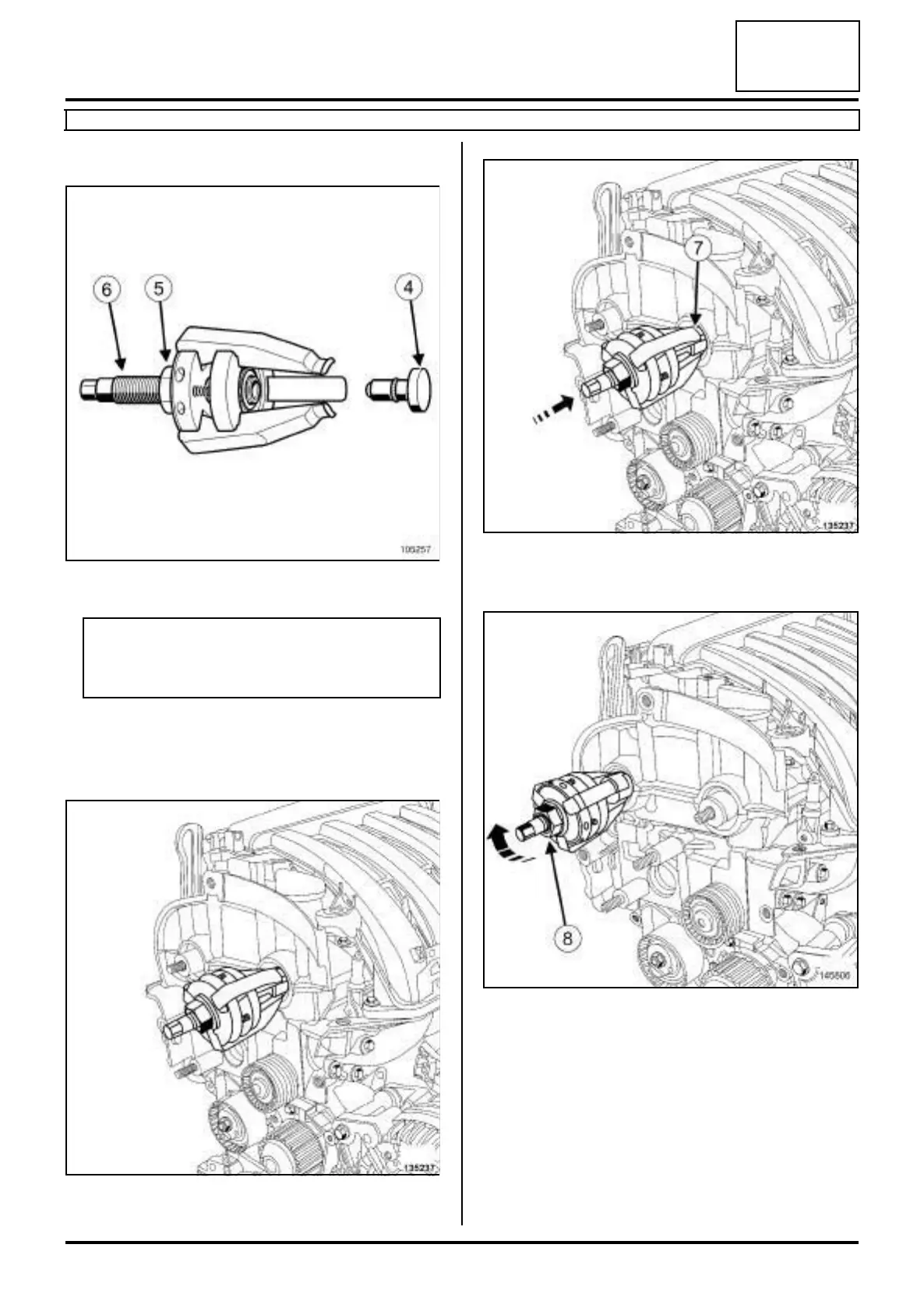

a Always remove the end piece (4) of the tool.
a Loosen bolts (5) and (6) fully from the.
a Position the claws of theon the camshaft.
a Push theuntil contact is made between the ends of
the claws (7) and the camshaft seal.
a Separate the claws by turning the nut (8) clockwise
using an open-jawed spanner.
105257
Note:
The inlet and exhaust camshaft seals are
removed using the.
135237
135237
145806
