TOP AND FRONT OF ENGINE
Camshaft seal, timing end: Removal - Refitting
K9K
11A
III - FINAL OPERATION
a Set the camshaft pulley hub using the tool (Mot.
1430).
a Refit:
-the timing belt (see 11A, Top and front of engine,
Timing belt: Removal - Refitting, page 11A-17) .
-the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-2) ,
-the camshaft position sensor (see 13B, Diesel in-
jection, Camshaft position sensor: Removal -
Refitting, page 13B-7) ,
-the right-hand suspended engine mounting (see
19D, Engine mounting, Right-hand suspended
engine mounting: Removal - Refitting, page
19D-4) ,
-the engine undertray,
-the front right-hand wheel arch liner (see Front
wheel arch liner: Removal - Refitting) (55A, Ex-
terior protection),
-the front right-hand wheel (see Wheel: Removal -
Refitting) (35A, Wheels and tyres).
a Refit the engine cover.

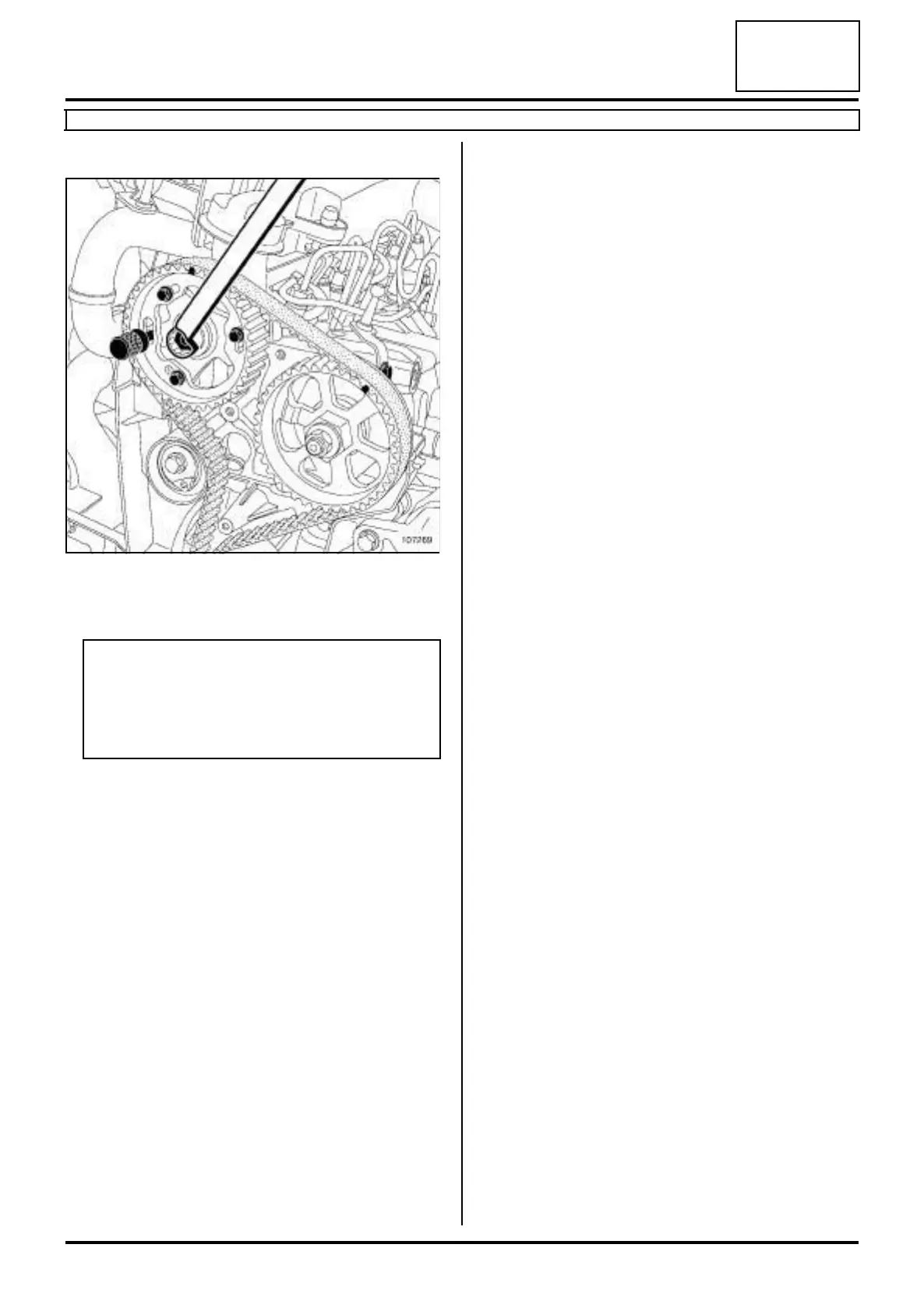

107269
Note:
If the pin (Mot. 1430) does not engage, turn the
camshaft pulley hub using an 18 mm offset
wrench to facilitate the setting of the camshaft
pulley hub.
