12A-19
FUEL MIXTURE
Exhaust manifold: Removal - Refitting
K4M
12A

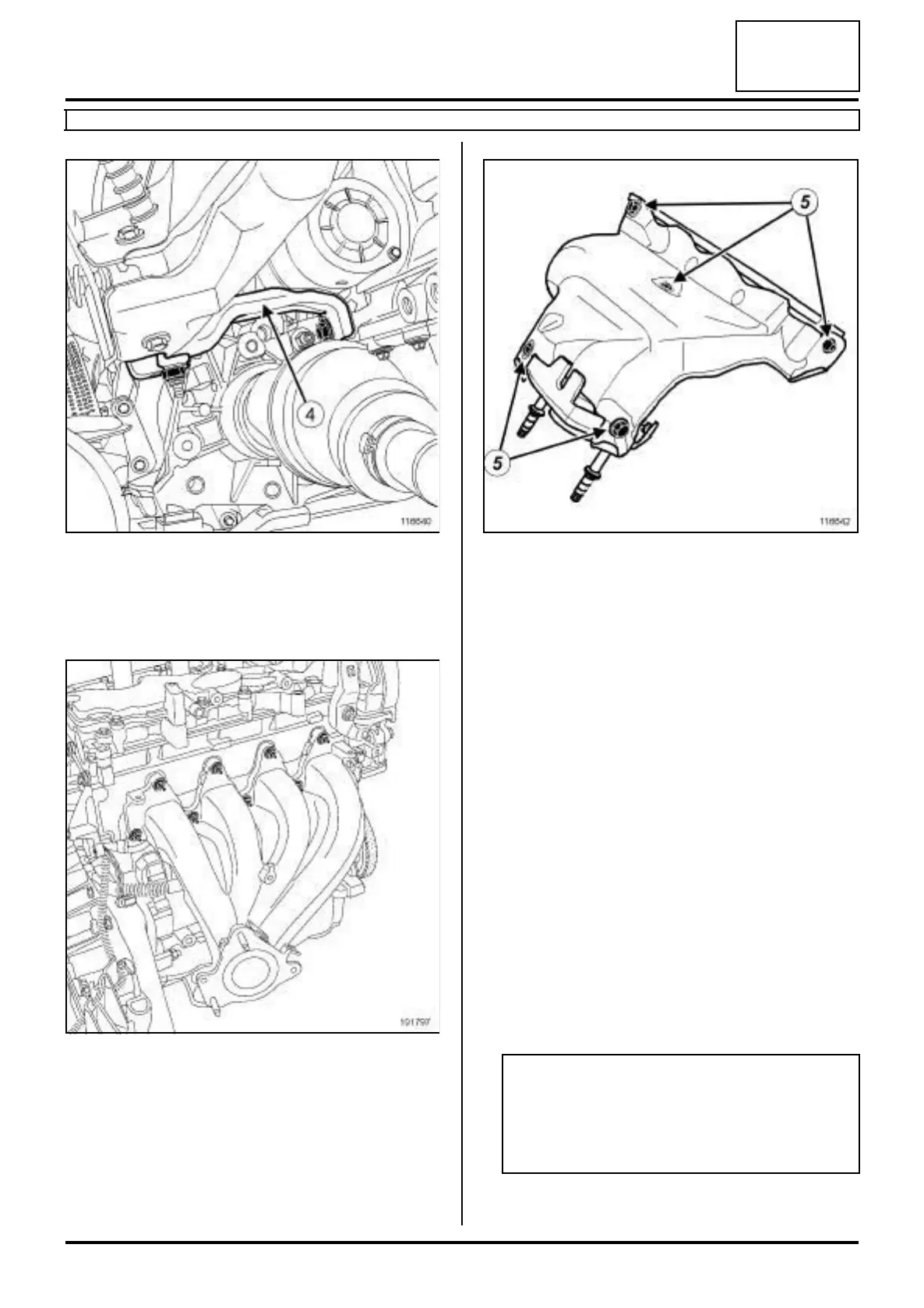

a Remove the stay (4) between the exhaust manifold
and the cylinder block.
II - REMOVAL OPERATION
a Remove:
-the exhaust manifold nuts,
-the exhaust manifold.
a Using the workbench, remove:
- the bolts (5) from the exhaust manifold lower heat
shield,
- the lower heat shield from the exhaust manifold.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: exhaust manifold
seal.
a parts always to be replaced: ring between ex-
haust manifold and catalytic converter.
a Use SURFACE CLEANER (see Vehicle: Parts
and consumables for the repair) (04B, Consuma-
bles - Products) to clean and degrease:
- the exhaust manifold joint face if it is to be re-used,
- the cylinder head joint face.
a Tighten to torque the exhaust manifold studs (8
N.m).
116640
101797
116642
Note:
If a stud loosens during removal, coat it with
HIGH RESISTANCE THREADLOCK (see Vehi-
cle: Parts and consumables for the repair)
(04B, Consumables - Products).
