13A-6
FUEL SUPPLY
Diesel filter: Removal - Refitting
K9K
13A
II - REMOVAL OPERATION

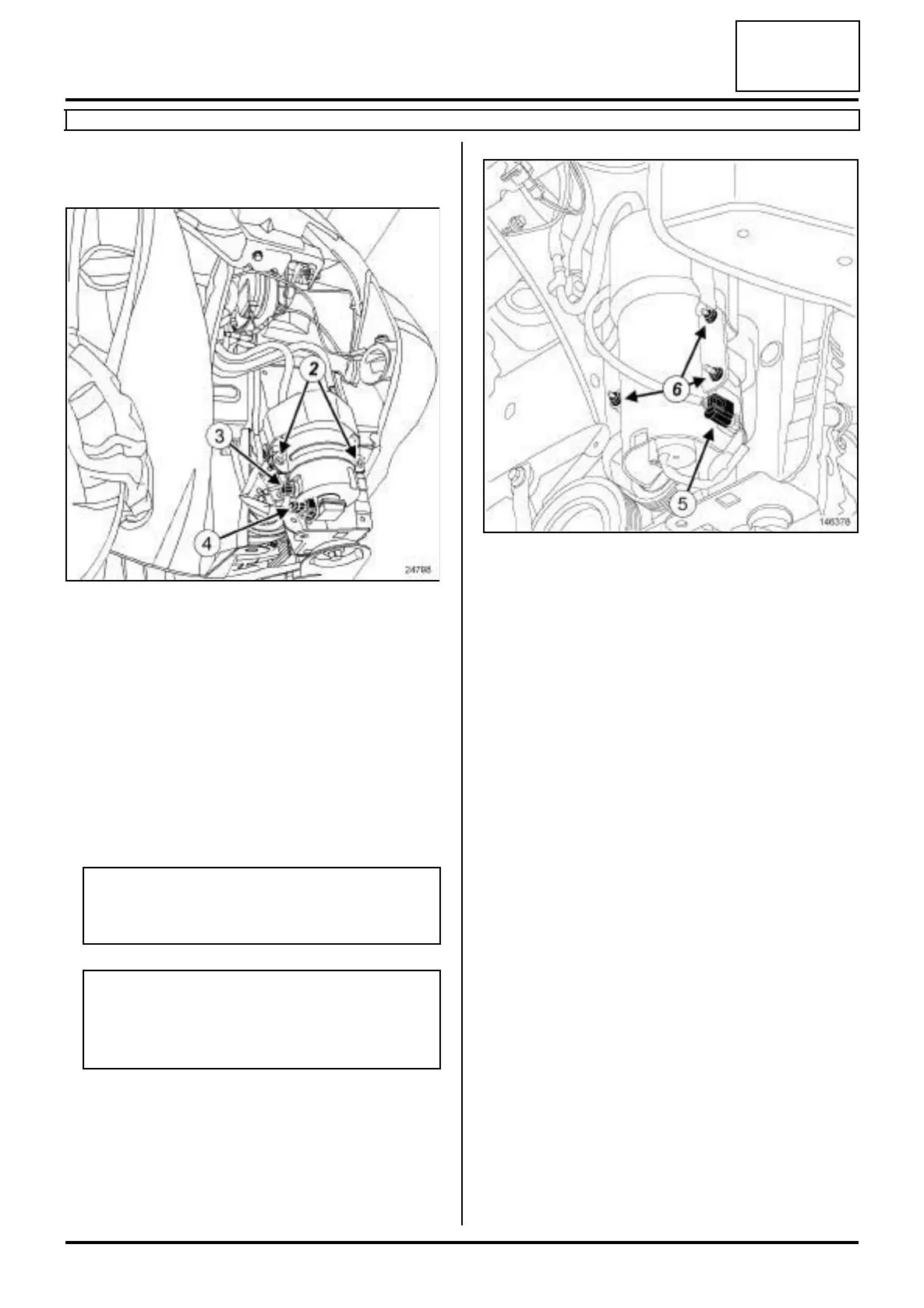

MAHLE type filter
a Remove:
-the diesel filter protection plate nuts (2) ,
-the diesel filter protection plate,
-the diesel filter from its mounting, noting its original
position.
a Disconnect the water detection sensor connector (4)
.
a Place a container under the diesel filter.
a Open the bleed screw (3) and let the diesel run out.
a Disconnect the pipe unions on the diesel filter.
a Let the diesel fuel flow out from the various pipes
into the container.
a Fit plugs into the openings.
a Remove the water detection sensor, turning it anti-
clockwise.
DELPHI type filter
a Disconnect the water detection sensor connector (5)
.
a Remove:
- the diesel filter protection plate nuts (6) ,
- the diesel filter protection plate,
- the diesel filter from its mounting, noting its original
position.
a Place a container under the diesel filter.
24798
WARNING
Keep the pipe unions away from contaminated
areas.
Note:
Mark the position of the fuel pipe unions in rela-
tion to the diesel filter before removing the diesel
filter.
146378
