13B-17
DIESEL INJECTION
Venturi: Removal - Refitting
K9K
13B
a Disconnect the return pipe (4) connecting the injec-
tor to the high pressure pump.
II - REMOVAL OPERATION
a Remove:
-the bolt (5) of the Venturi (6) ,
-the Venturi.
a Plug the openings.
REFITTING
I - REFITTING PREPARATION OPERATION
a
a Lubricate the O-ring with lubricant from the applica-
tor supplied with the new part.
II - REFITTING OPERATION
a parts always to be replaced: Venturi.
a Fit the Venturi.
a Torque tighten the Venturi bolt (6 N.m).
III - FINAL OPERATION
a Connect the return pipe connecting the injector to
the high-pressure pump.
a Connect the battery (see Battery: Removal - Refit-
ting) (80A, Battery).
a Start the engine.
a Check that there are no fuel leaks.
a Refit the engine cover.

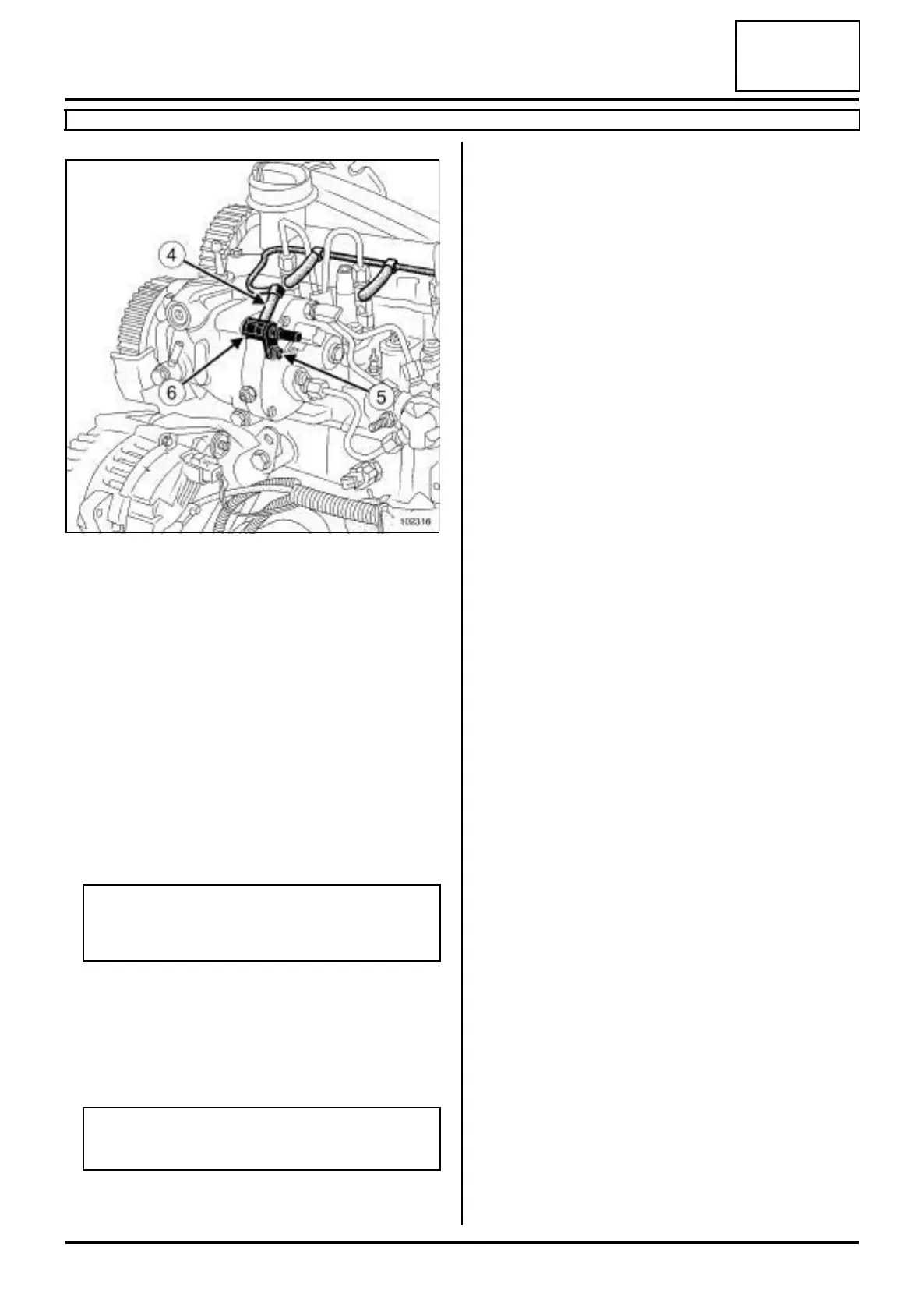

102316
WARNING
Do not remove the blanking plugs from each
component until the last moment.
Note:
Do not damage the seal when refitting.
