13B-34
DIESEL INJECTION
Diesel injector: Removal - Refitting
K9K
13B
II - OPERATION FOR REMOVAL OF PART
CONCERNED

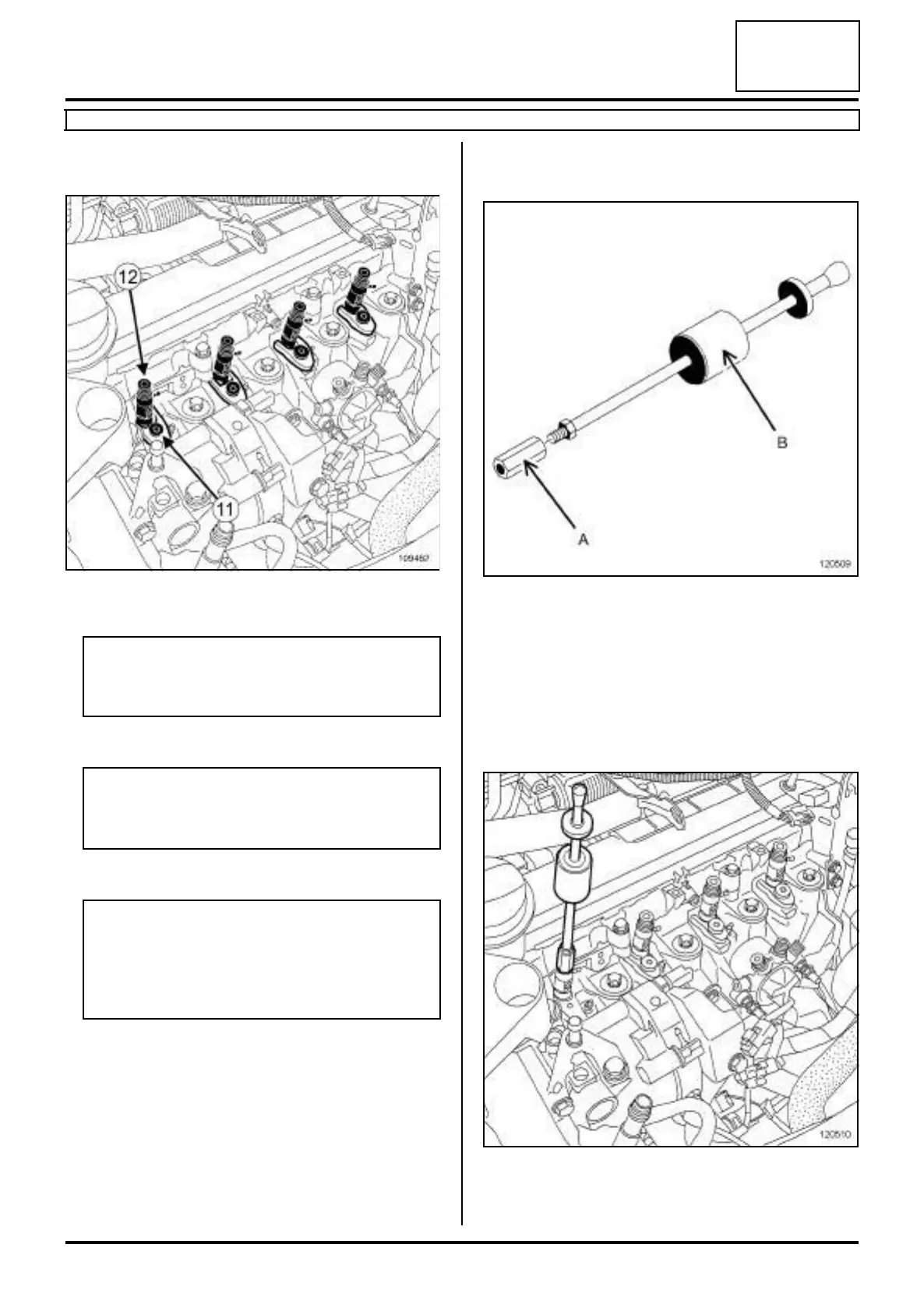

a Loosen the injector clamp bolt (11) .
a Remove the diesel injector (12) .
a Remove the heat protection washer.
REMOVING THE INJECTORS USING TOOLS (MOT.
921-01) AND (EMB. 880)
a Fit the toolon the extractor
a Apply releasing agent around the diesel injector.
a Fit the slide hammer onto the diesel injector.
a Extract the jammed injector using the slide hammer.
109462
Note:
If reusing a diesel injector, always mark the
removed diesel injector in relation to its cylinder.
Note:
If the diesel injector is jammed, remove the injec-
tor using the tooland the tool.
Note:
If the heat protection washer is stuck at the bot-
tom of the well, use the (see Injector well clean-
ing tool: Use) (Technical Note 6040A, 13B,
Diesel injection).
120509
(A) Tool for extracting injector hold-
ers (Mot. 921-01).
(B) Pin extractor (Emb. 880).
120510
