10A-14
ENGINE AND CYLINDER BLOCK ASSEMBLY
Lower cover: Removal - Refitting
K9K
10A
II - REFITTING OPERATION
a
20170
Note:

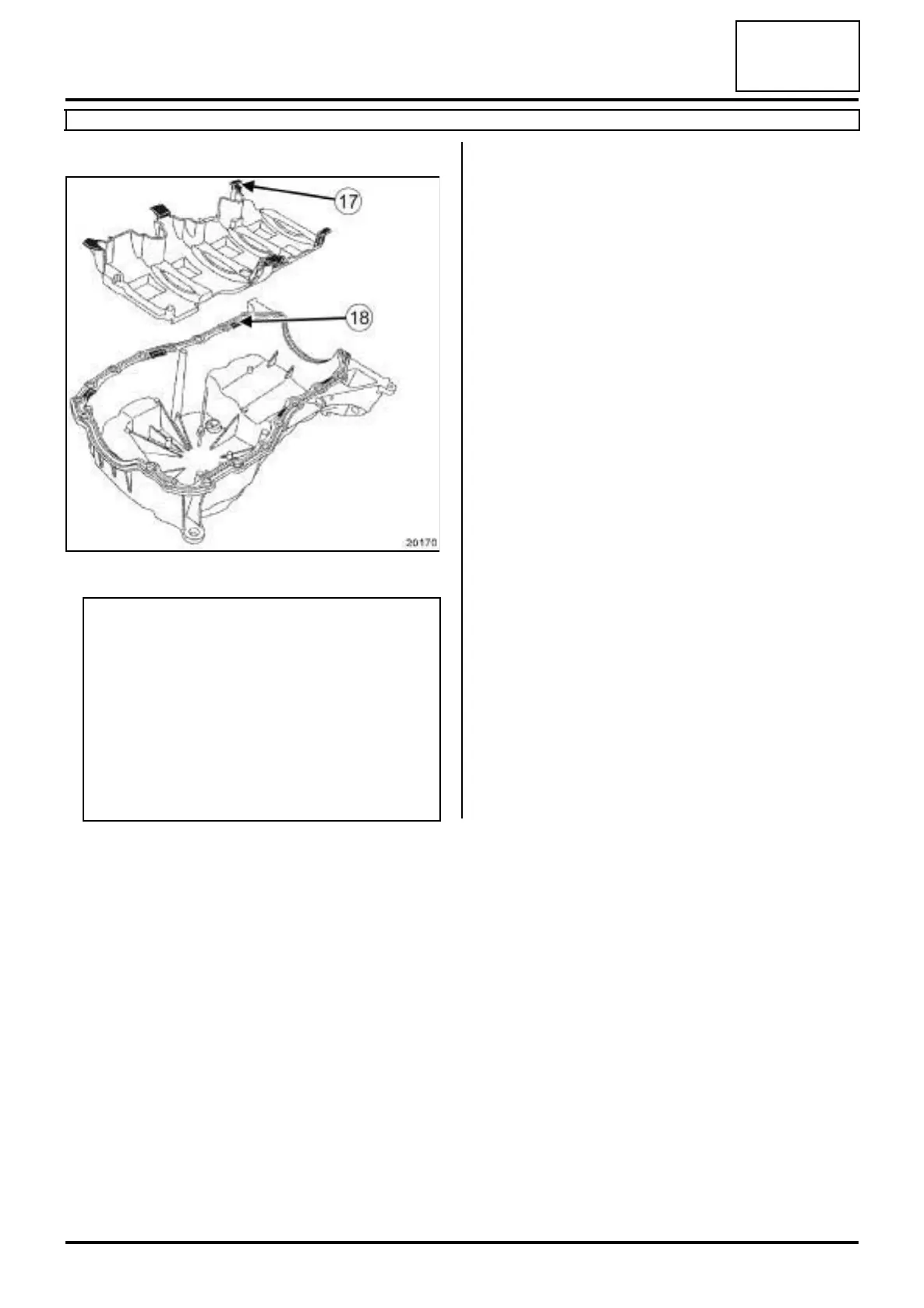

When refitting the sump, ensure that:
-the oil splash plate tabs (17) are positioned cor-
rectly in the slots (18) ,
-the coupling faces of the sump and cylinder
block are correctly aligned, to prevent the clutch
housing being deformed when fitting the gear-
box.
Refit the oil splash plate.
