30A-11
GENERAL INFORMATION
Rigid brake pipe: Repair
30A

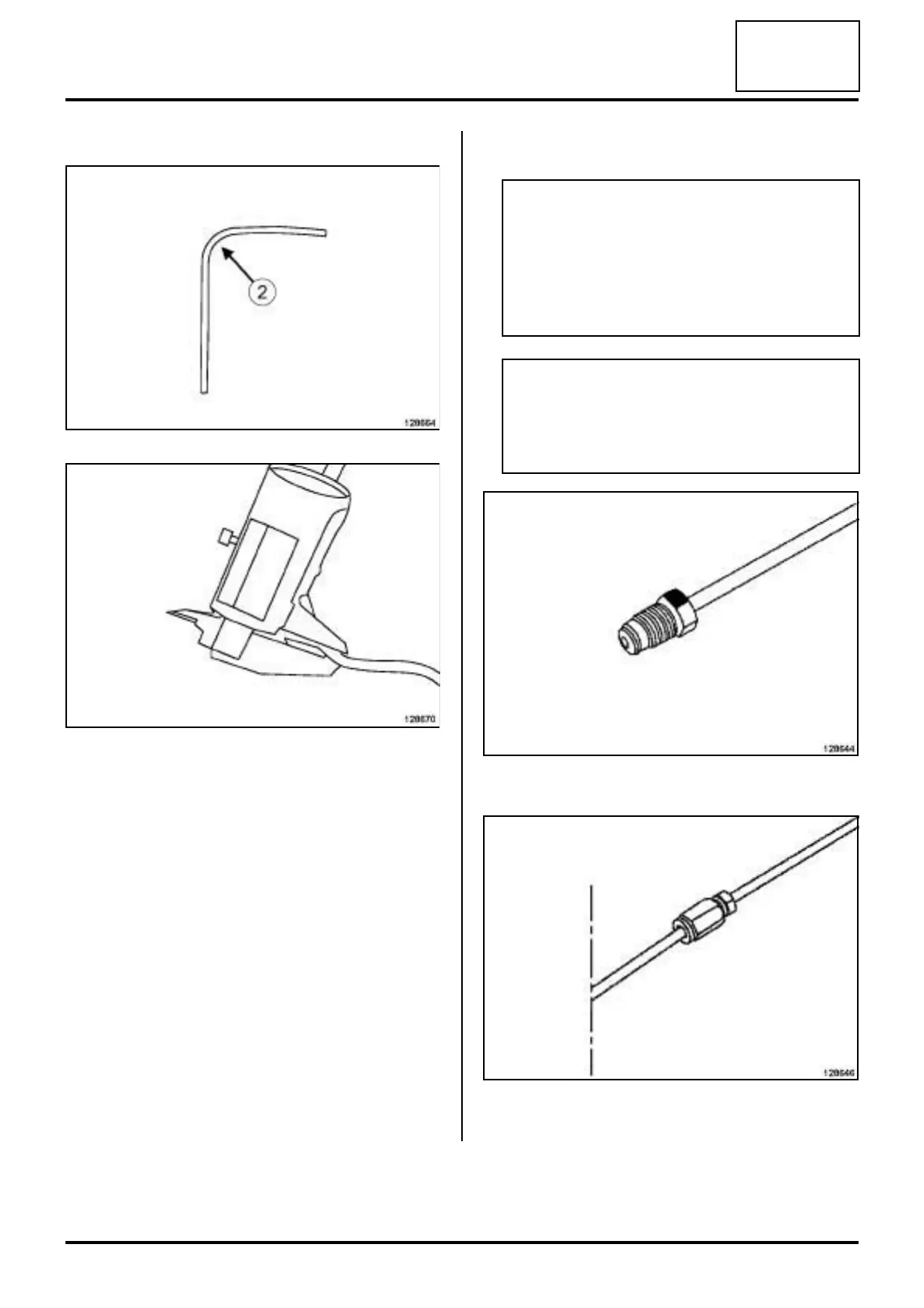

V - CHECKING BENDING
a Check the out-of-roundness of the outer diameter at
the centre of the curve radius (2) using a sliding cal-
liper (the out-of-roundness of the outer diameter is
correct if it is less than 10% flattening):
-nominal diameter of the pipe: 4.75 mm,
-minimum diameter after bending: 4.30 mm.
VI - REFITTING THE PIPE
a
a Torque tighten the brake pipe bolts (8 N.m).
a Torque tighten the underbody unions (female/
male) (6 N.m).
128664
128670
Note:
When refitting the rigid brake pipe:
- respect the original routing as much as possi-
ble,
- adjust the pipe routing by hand when fitting
inside the clips.
WARNING
Contact points between the rigid brake pipe and
the surrounding components could cause dam-
age to the pipe. In order to avoid these contacts,
adjust the pipe routing by hand.
128644
128646
