10A-20
ENGINE AND CYLINDER BLOCK ASSEMBLY
Lower cover: Removal - Refitting
K4M
10A
II - REMOVAL OPERATION
a Remove:
-the sump bolt from the multifunction support,

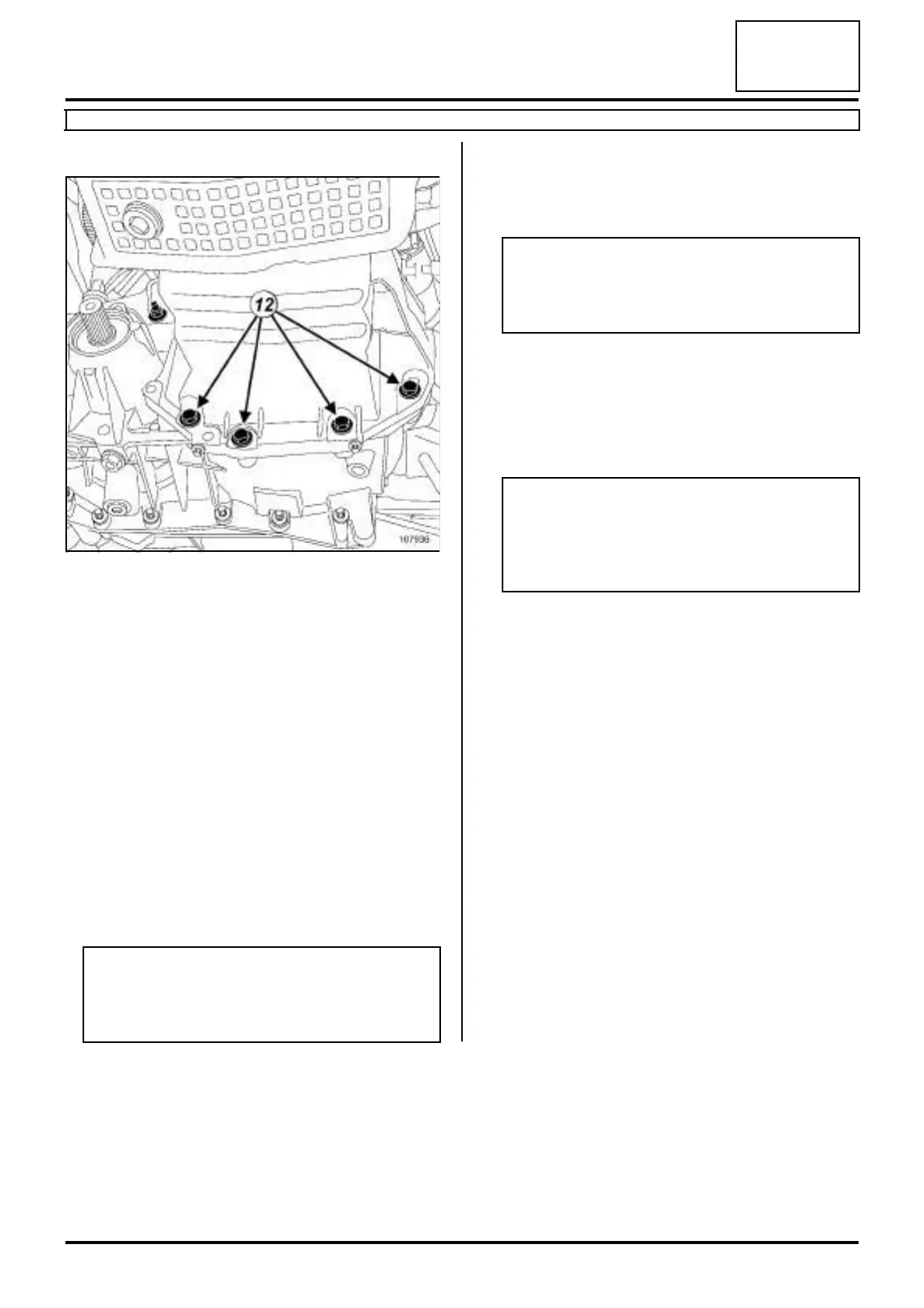

-the engine-gearbox coupling bolts (12) ,
-the sump bolts on the cylinder block,
-the sump,
-the oil splash plate.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: engine oil sump
seal.
a parts always to be replaced: Front sub-frame
bolt.
a Clean the cylinder block joint face using SUPER
CLEANING AGENT FOR JOINT FACES (see Ve-
hicle: Parts and consumables for the repair)
(04B, Consumables - Products).
a Use SURFACE CLEANER (see Vehicle: Parts
and consumables for the repair) (04B, Consuma-
bles - Products) to degrease:
- the sump joint face if it is to be reused,
- the cylinder block gasket face.
107936
WARNING
Do not scrape the joint faces of the aluminium,
any damage caused to the joint face will result in
a risk of leaks.
WARNING
To ensure proper sealing, the gasket surfaces
must be clean, dry and not greasy (avoid any fin-
ger marks).
WARNING
Applying excess sealant could cause it to be
squeezed out when parts are tightened. A mix-
ture of sealant and fluid could damage certain
components (engine, radiator, etc.).
