Hydraulic unit - master cylinder brake pipe: Removal - Refitting
ANTI-LOCK BRAKING SYSTEM
31A

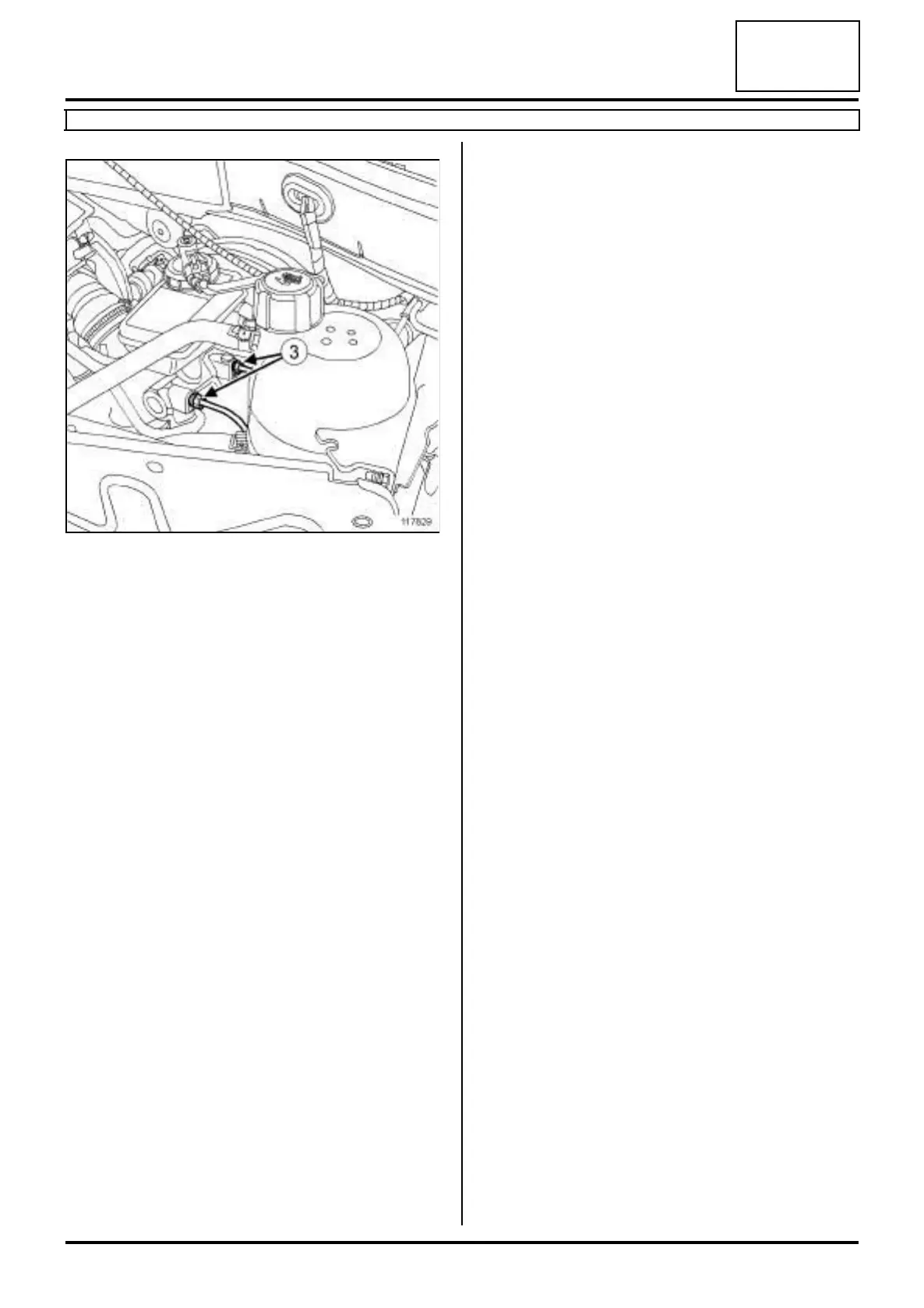

a Undo the brake pipe unions (3) on the master cylin-
der.
a Remove the brake pipes between the hydraulic unit
and master cylinder.
REFITTING
I - REFITTING OPERATION
a Refit the brake pipes between the hydraulic unit and
master cylinder.
a Clip the brake pipes onto the bulkhead.
a Screw on:
-the brake pipe unions on the hydraulic unit,
-the brake pipe unions on the master cylinder.
a Torque tighten:
-the brake pipe unions on the hydraulic unit (14
N.m),
-the brake pipe unions on the master cylinder
(14 N.m).
II - FINAL OPERATION
a Refit:
-the soundproofing on the bulkhead (if fitted to the
vehicle),
-the soundproofing mounting clips,
-the front engine cover (if fitted to the vehicle).
a Remove the pedal press.
a Bleed the brake circuit (see 30A, General informa-
tion, Braking circuit: Bleed, page 30A-4) .
