FRONT AXLE COMPONENTS
Hydraulic unit - front left-hand calliper brake pipe: Removal - Refitting
ANTI-LOCK BRAKING SYSTEM
31A

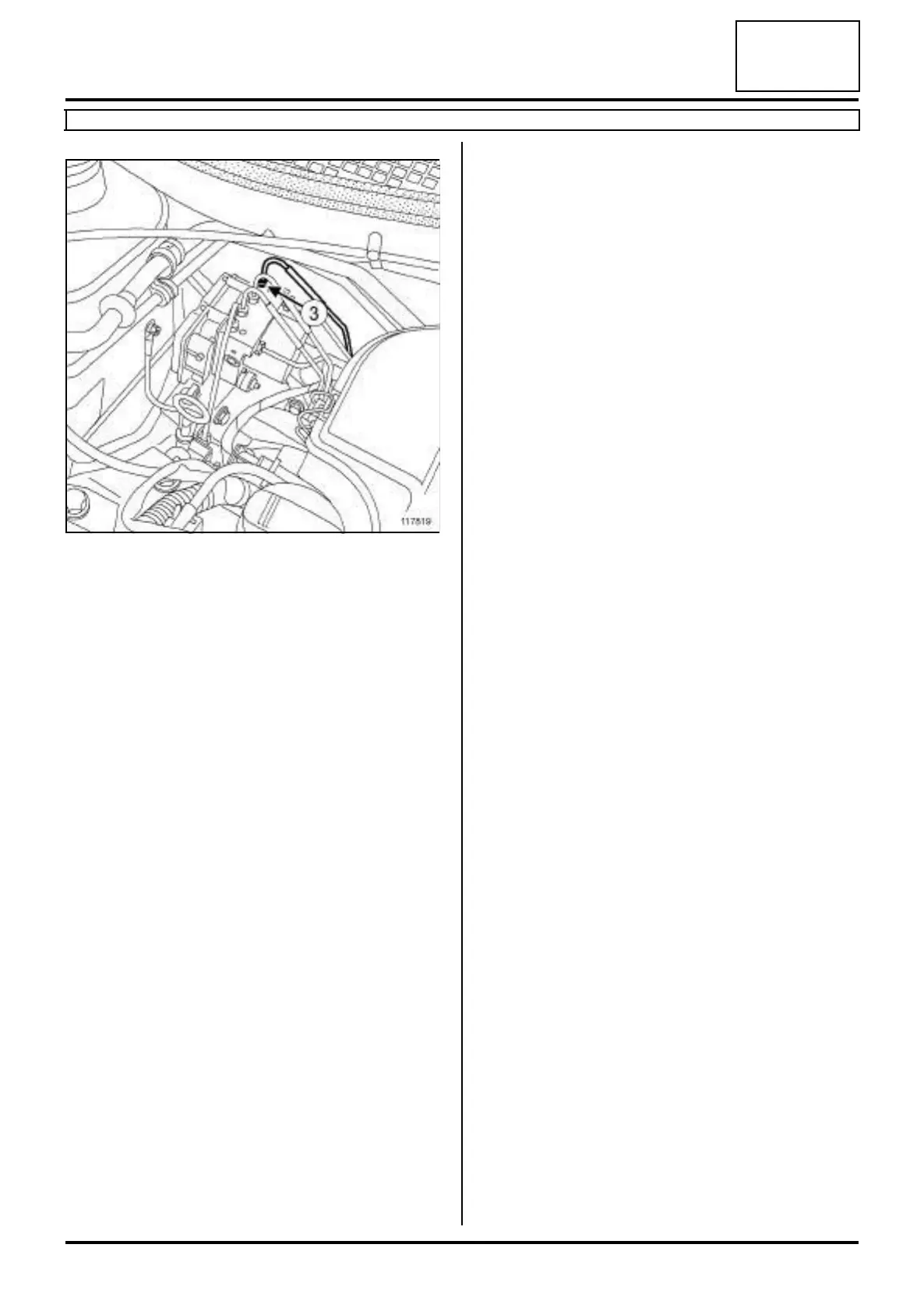

a Undo the brake pipe union (3) on the hydraulic unit.
a Remove the brake pipes between the hydraulic unit
and front left-hand brake hose.
REFITTING
I - REFITTING OPERATION
a Refit the brake pipe between the hydraulic unit and
front left-hand brake hose.
a Attach the brake pipe.
a Refit:
-the brake pipe union on the front left-hand brake
hose,
-the brake pipe union on the hydraulic unit.
a Torque tighten:
-the brake pipe union on the hydraulic unit (14
N.m),
-the brake pipe union on the brake hose (14
N.m).
II - FINAL OPERATION
a Refit the bulkhead soundproofing.
a Refit:
-the soundproofing clips (if fitted to the vehicle),
-the front engine cover (if fitted to the vehicle).
a Remove the pedal press.
a Bleed the brake circuit (see 30A, General informa-
tion, Braking circuit: Bleed, page 30A-4) .
a Refit the front left-hand wheel (see 35A, Wheels
and tyres, Wheel: Removal - Refitting, page 35A-
1)
