36A-12
STEERING ASSEMBLY
Steering column adjustment handle: Removal - Refitting
36A
REFITTING
I - REFITTING PREPARATION OPERATION
a
II - REFITTING OPERATION FOR PART
CONCERNED
a Refit:
-the « adjustment handle shaft - locking
mechanism » assembly,
-the needle bearing,
-the nut of the adjustment handle shaft,
-the adjustment handle,
-the bolt of the adjustment handle.
III - FINAL OPERATION
a Connect the various connectors.
a Refit:
- the immobiliser ring,
- the half covers under the steering wheel (see In-
strument panel: Removal - Refitting) (83A, In-
strument panel),
- the bolts on the steering wheel lower cover.
a Connect the battery (see ) (80A, Battery).

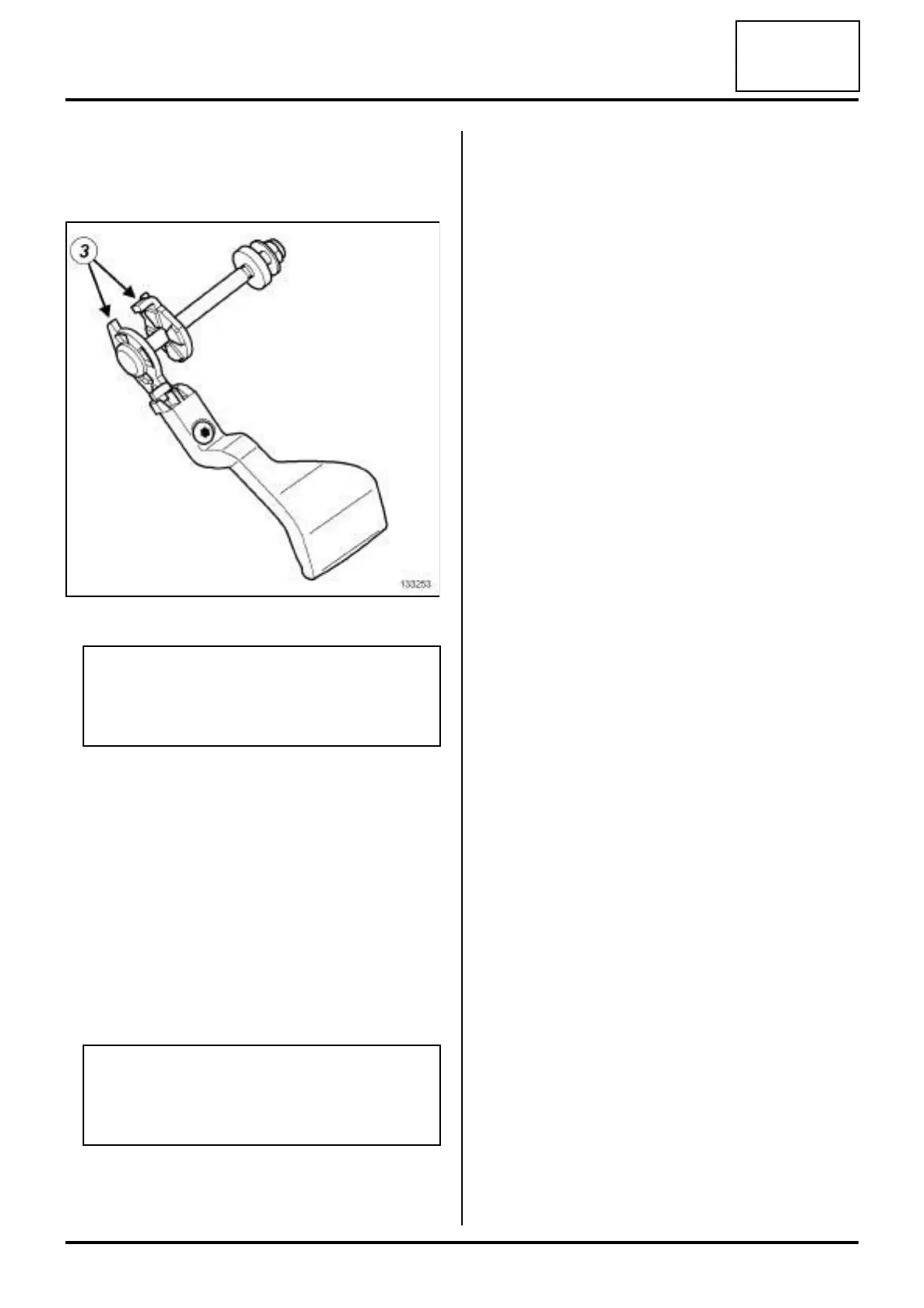

133253
Note:
When refitting the handle shaft, ensure that the
two notched segments (3) are correctly posi-
tioned.
Note:
The amount of effort required to operate the han-
dle shaft is determined by how much it is tight-
ened. Test to determine the correct tightening.
