36B-7
POWER ASSISTED STEERING
Power-assisted steering pump: Removal - Refitting
K4M, and AIR CONDITIONING
36B
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see 02A, Lift-
ing equipment, Vehicle: Towing and lifting).
a Remove:
-the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting),
-the injector rail protector.
a Drain the power-assisted steering fluid reservoir us-
ing a syringe.
II - OPERATION FOR REMOVAL OF PART
CONCERNED

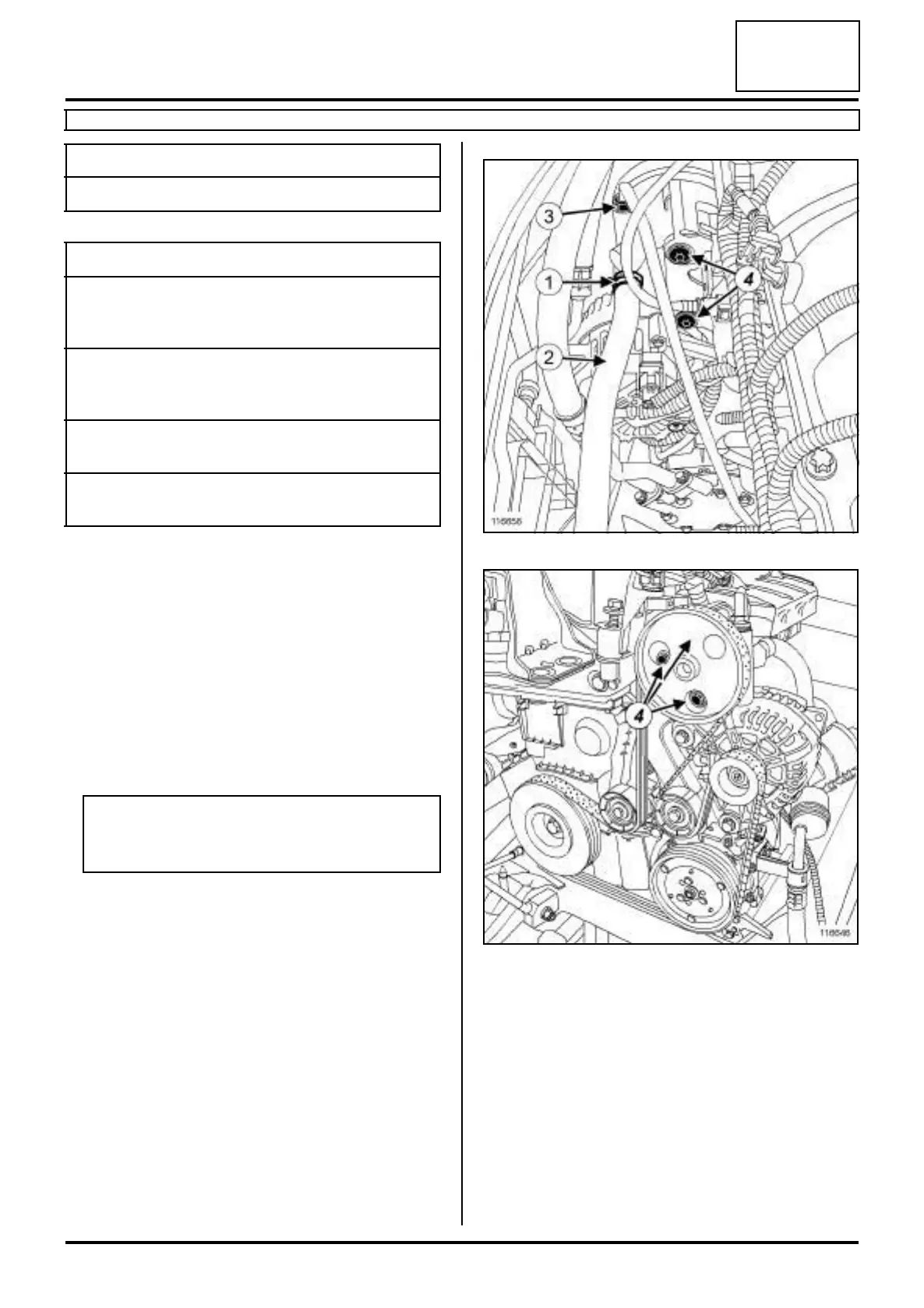

a Fit hose clamps (Ms. 583) on the hydraulic inlet and
outlet pipes of the power-assisted steering pump.
a Remove the hydraulic inlet hose clip (1) on the pow-
er-assisted steering pump using the tool.
a Disconnect the inlet hose (2) .
a Disconnect the pipe connecting the « dehydrator
reservoir and the expansion valve » on the motor-
driven fan assembly.
a Remove:
- the high pressure pipe bolt on the cylinder block,
- the power-assisted steering pump high pressure
pipe union (3) .
Special tooling required
Ms. 583 Pipe clamps.
Tightening torquesm
power-assisted steering
pump bolts on the multi-
function support
21 N.m
high pressure union on
the power-assisted
steering pump
21 N.m
high pressure pipe bolt
on the cylinder block
21 N.m
injector rail protector
nuts
21 N.m
WARNING
Protect the alternator from escaping power
assisted steering fluid.
116658
116646
