36B-10
POWER ASSISTED STEERING
Power-assisted steering pump: Removal - Refitting
K4M, and STANDARD HEATING RECIRCULATION
36B
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Disconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).
a Remove:
-the front right-hand wheel (see 35A, Wheels and
tyres, Wheel: Removal - Refitting, page 35A-1) ,
-the accessories belt (see Accessories belt: Re-
moval - Refitting) (11A, Top and front of engine),
-the engine undertray.
a Fit a hose clamp (Ms. 583) to the power-assisted
steering pump inlet low pressure pipe.
II - OPERATION FOR REMOVAL OF PART
CONCERNED

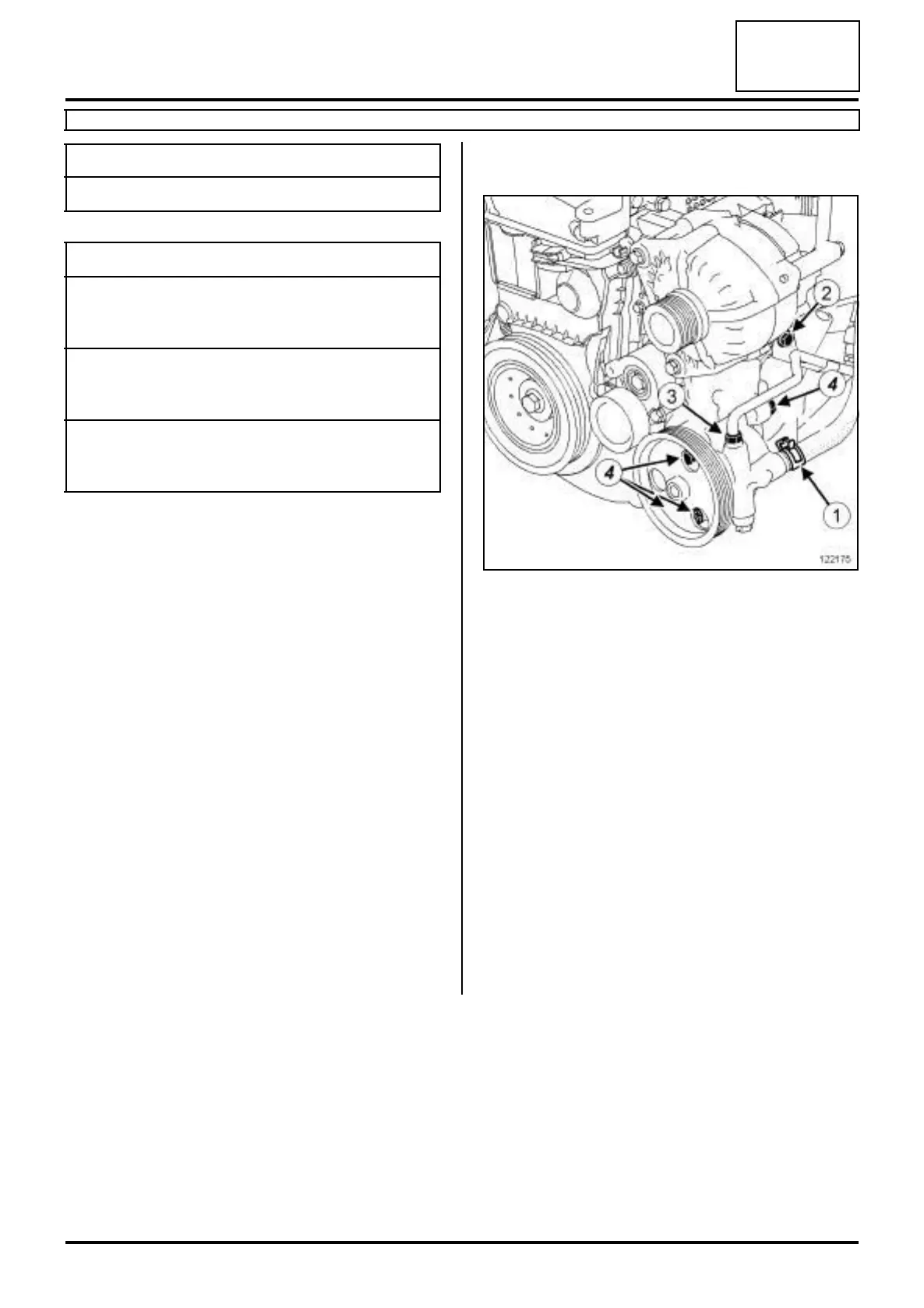

a Remove the clip (1) from the power-assisted steer-
ing pump low pressure pipe using the.
a Disconnect the low pressure hydraulic pipe from the
power-assisted steering pump.
a Remove:
- the high pressure pipe bracket bolt (2) on the cylin-
der block,
-the high pressure pipe union (3) from the power-as-
sisted steering pump.
a Detach the high pressure pipe from the power-as-
sisted steering pump.
a Fit plugs to the pipe and power-assisted steering
pump openings to prevent impurities from entering.
a Remove:
- the bolts (4) from the power-assisted steering
pump on the multifunction support,
- the power-assisted steering pump.
Special tooling required
Ms. 583 Pipe clamps.
Tightening torquesm
power-assisted steering
pump bolts on the multi-
function support
21 N.m
high pressure pipe
union on the power-
assisted steering pump
21 N.m
high pressure pipe
bracket bolt on the cylin-
der block
21 N.m
122175
