ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine oil: Draining - Refilling
K4M or K9K
10A

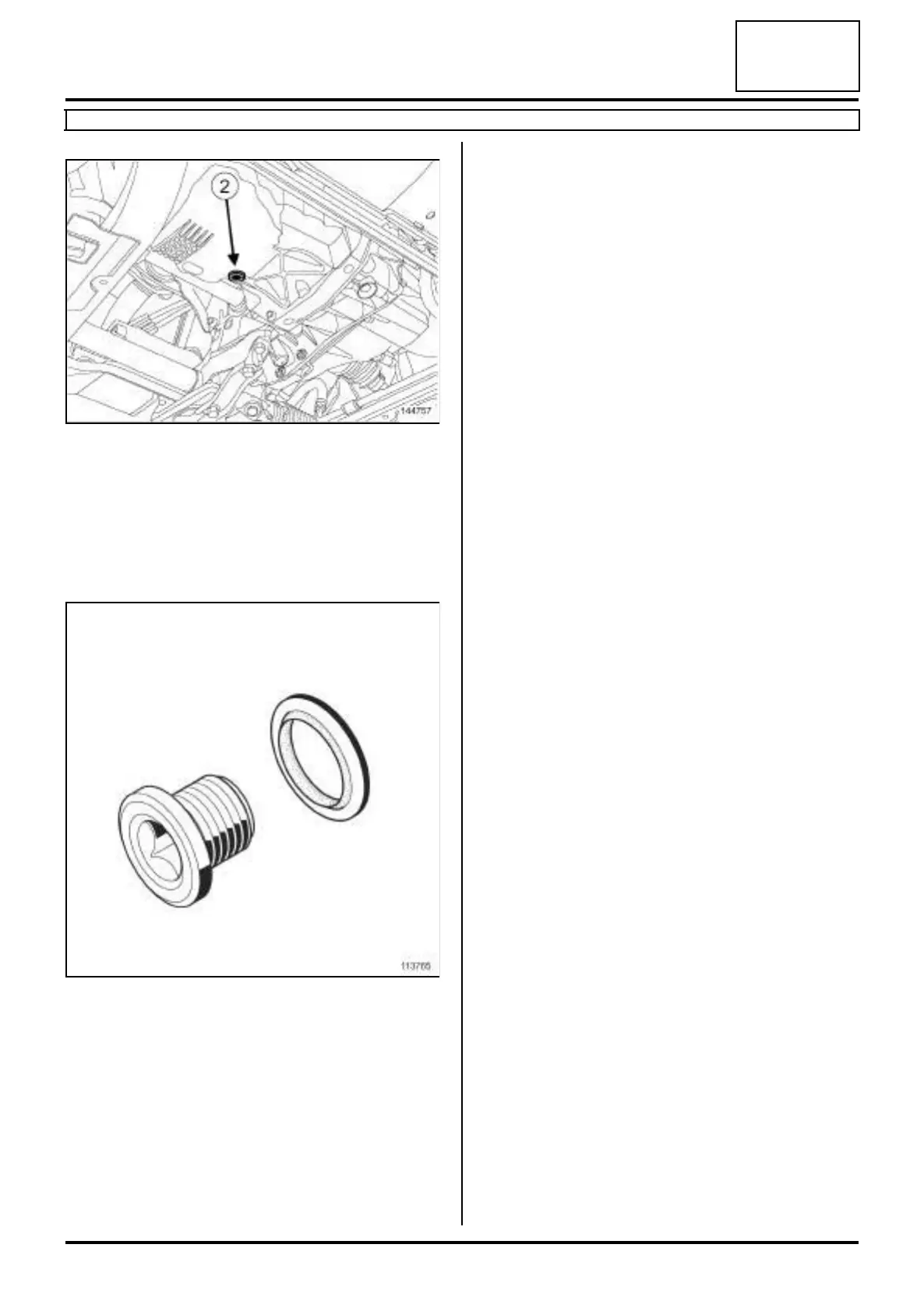

a Remove the drain plug (2) using theor a oil change
wrench.
a Let the engine oil flow out completely.
a Remove the drain plug seal.
Rubber-lipped seal
a Refit a new seal to the drain plug (no direction of fit-
ting).
a Refit the drain plug.
a Torque tighten the drain plug (20 N.m) using a
torque wrench fitted with a oil change end piece
with an 8 mm square drive.
a Clean any oil run-off from the engine oil sump using
a cloth.
a Remove the oil recovery tray.
V - FILLING
a Fill the engine with oil, respecting the recommended
quantity.
a Wait at least 10 minutes.
a Check the oil level using the dipstick.
a Top up the engine oil level if necessary.
a Refit:
- the engine oil filler cap,
- the dipstick.
