37A-36
MECHANICAL COMPONENT CONTROLS
Clutch pedal switch: Removal - Refitting
37A
REFITTING
I - REFITTING PREPARATION OPERATION
a

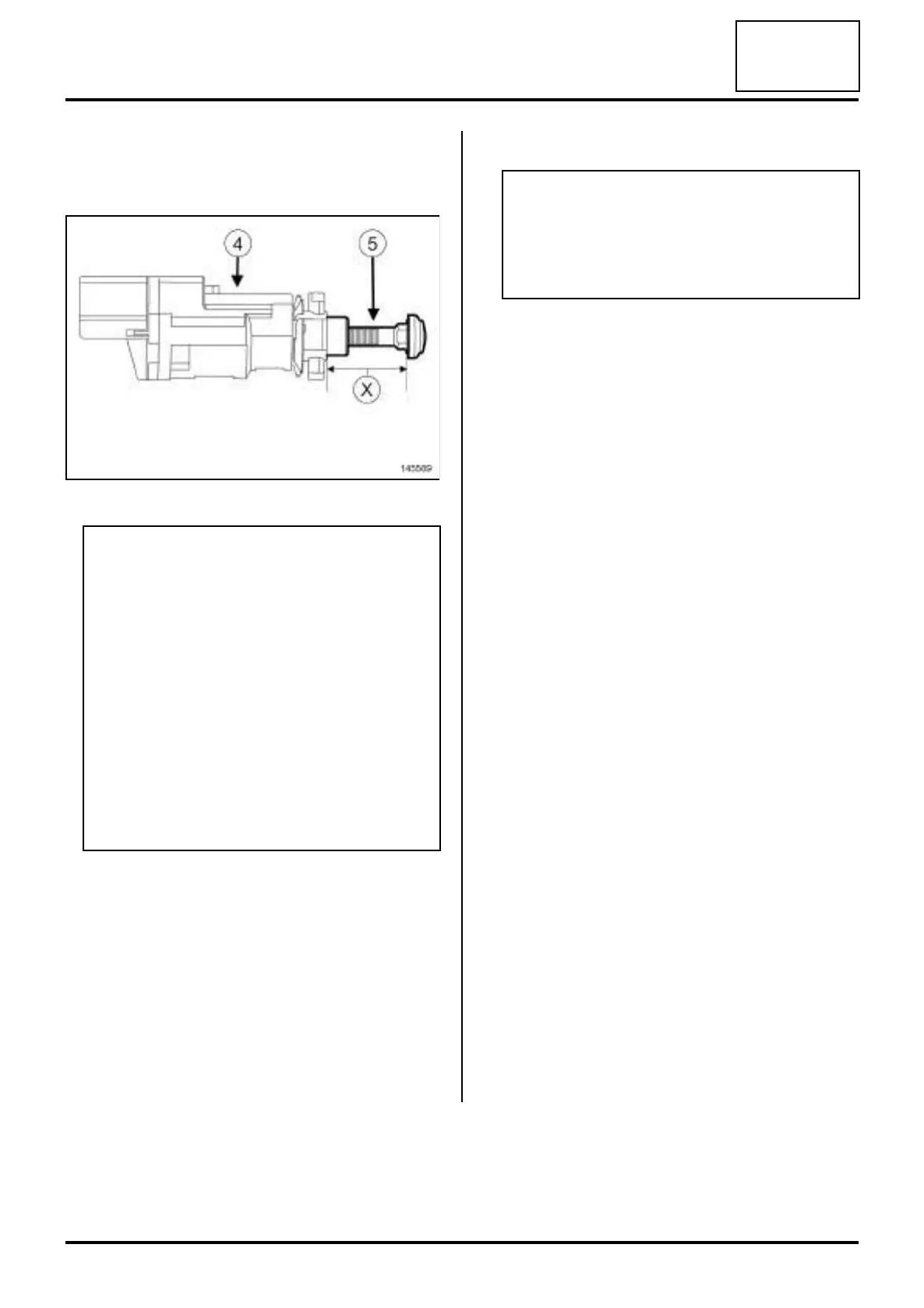

a Measure dimension (X) of the piston (5) . If the di-
mension is less than 20 mm, carefully pull on the
end of the piston to adjust the dimension between 20
mm minimum and 22 mm maximum.
II - REFITTING OPERATION
a Depress the clutch pedal by hand.
a Position the clutch pedal switch on the pedal assem-
bly.
a Lock the clutch pedal switch by turning it a quarter of
a turn clockwise.
a At the same time, carefully return the clutch pedal.
a Connect clutch switch connector.
III - FINAL OPERATION
a Refit the driver side dashboard lower trim.
145589
WARNING
To avoid damaging the clutch switch (4) :
-handle the switch with care,
-only activate the piston during the adjustment
phase,
-do not perform more than 3 adjustments to
dimension (X),
-do not separate the piston from the switch.
Replace the switch:
-if the piston is separated from the switch
-if more than 3 consecutive adjustments to
dimension (X) have been performed.
Note:
The clutch pedal switch has an automatic adjust-
ment feature, adapting to the pedal position.
The automatic adjustment makes a clicking noise
when in operation.
