37A-52
MECHANICAL COMPONENT CONTROLS
Gear control unit: Removal - Refitting
JR5
37A
-the heat shield.
a Remove the centre console (see Centre console:
Removal - Refitting) (57A, Interior equipment).

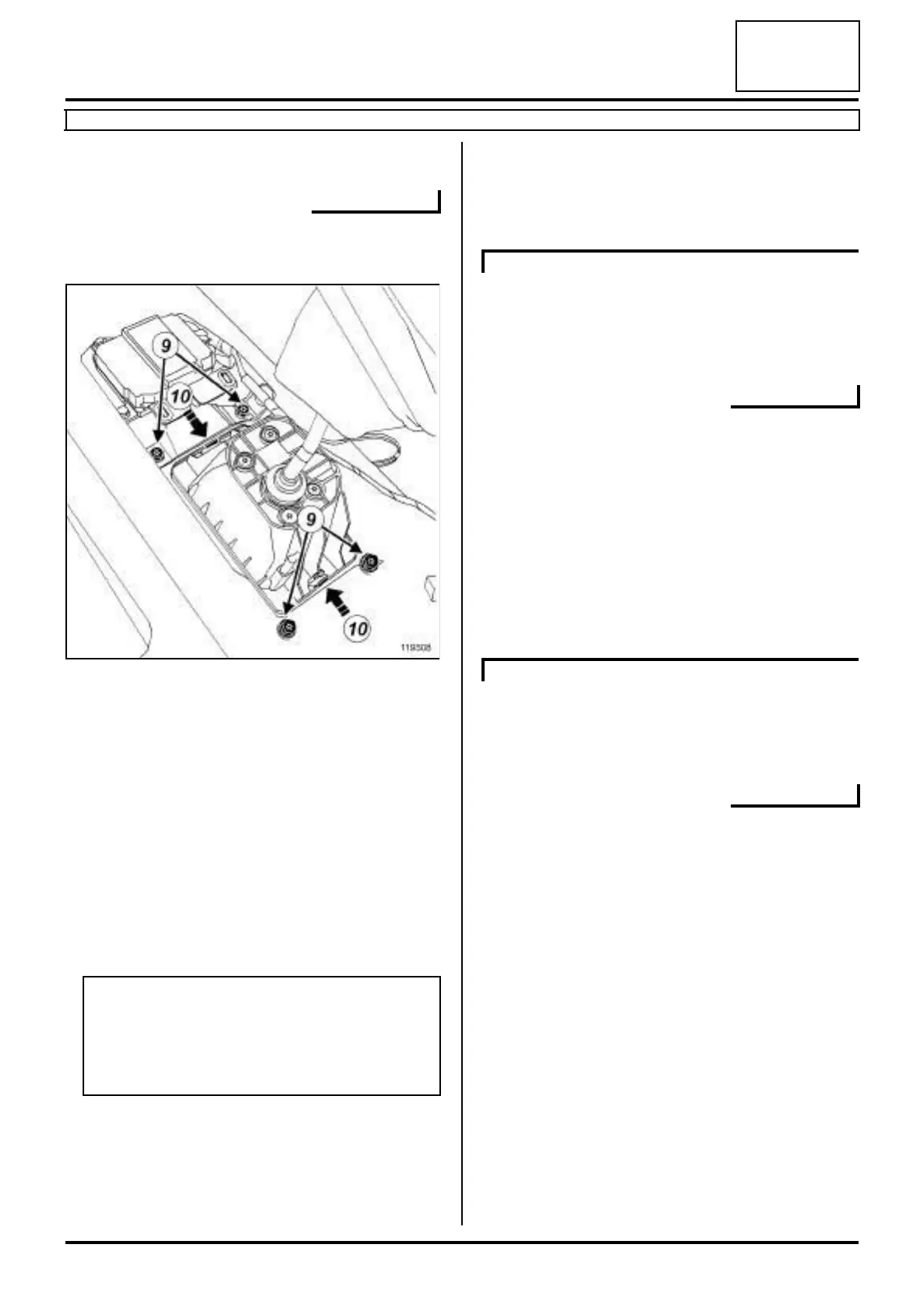

a Remove the gear control unit bolts (9) .
a Unclip the gear selection unit from the floor at (10) .
a Lower the gearbox control unit so it is resting on the
exhaust.
a Remove the gear control unit by feeding it out be-
tween the exhaust and the tunnel.
REFITTING
I - REFITTING PREPARATION OPERATION
a
II - REFITTING OPERATION FOR PART
CONCERNED
a Position the gear control unit.
a Clip the gear control unit onto the floor.
a Torque tighten the gear control unit bolts (21
N.m).
a Refit the centre console (see Centre console: Re-
moval - Refitting) (57A, Interior equipment).
a Refit:
- the heat shield,
- the heat shield nuts,
a Refit the exhaust pipe mountings on the catalytic
converter.
a Torque tighten the exhaust pipe mountings (21
N.m).
a Clip:
- the gear control cable sheath stops on the gearbox,
- the control cables to the gearbox.
III - FINAL OPERATION
a Refit the air duct nut on the gearbox.
a Connect the air duct between the turbocharger and
the intercooler at (1) .
a Refit the expansion bottle on its support.
a Torque tighten the expansion bottle nuts (8 N.m).
a Connect the battery (see Battery: Removal - Refit-
ting) (80A, Battery).
119308
Note:
The external control unit and the control levers
on the gearbox must be in the neutral position to
facilitate attachment of the control cables to the
gearbox.
K4M
K9K
