37A-54
MECHANICAL COMPONENT CONTROLS
Parking brake cables: Removal - Refitting
37A
a Reattach the parking brake cable sheath onto the
drum back-plate.
a Refit the parking brake cable back into the lever
housing using a pair of pliers and a screwdriver.

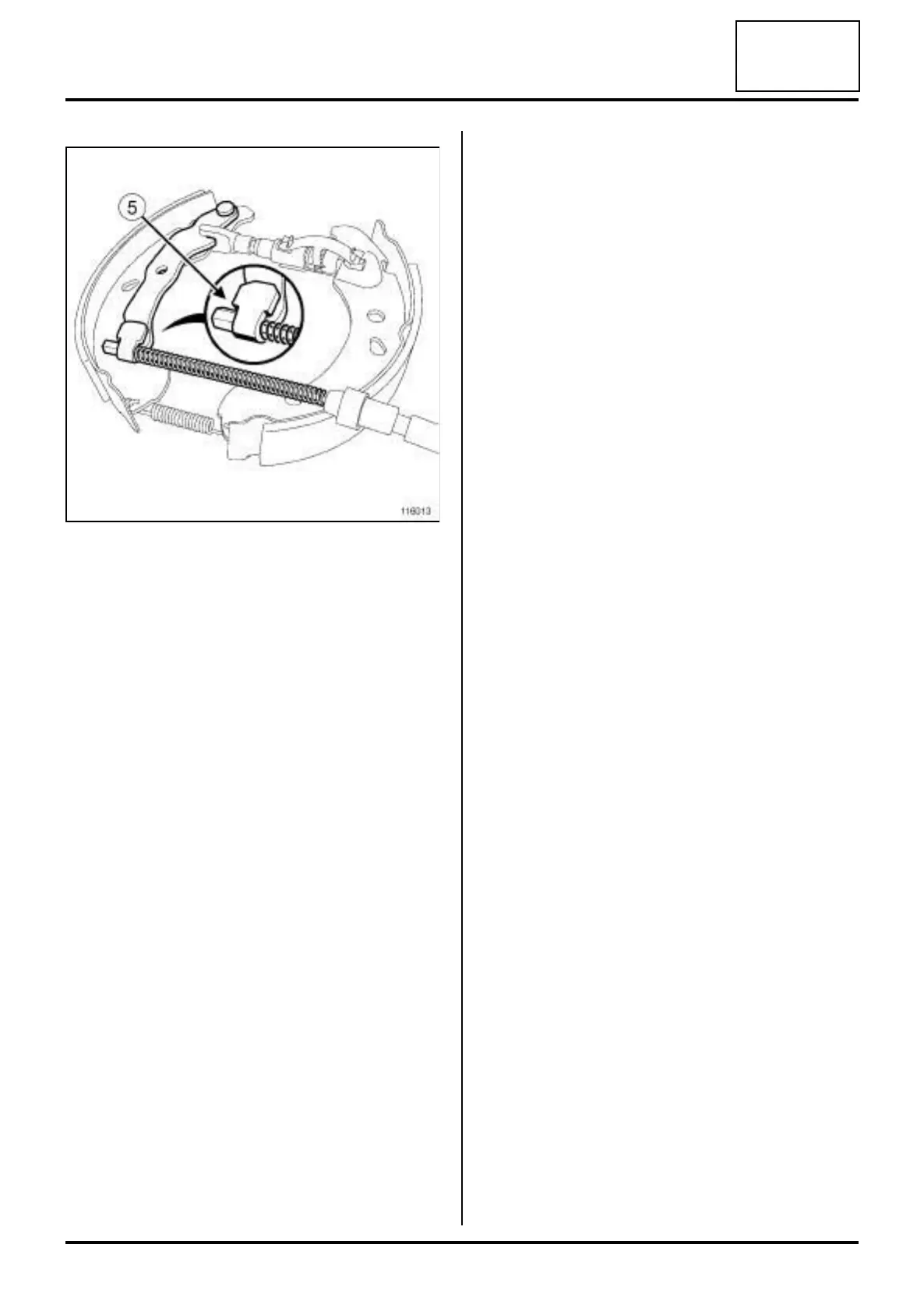

a Check that the cables (5) are correctly positioned on
the levers.
a Reattach the sheath to its stop on the bodywork.
a Clip on:
-the cables (3) to the control lever,
-the sheaths to their stop on the body (4) .
a Adjust the parking brake cables (see 37A, Mechan-
ical component controls, Parking brake lever:
Adjustment, page 37A-30) .
II - FINAL OPERATION
a Refit:
-the rear brake drums (see 33A, Rear axle compo-
nents, Rear brake drum: Removal - Refitting,
page 33A-7) ,
-the rear wheels (see 35A, Wheels and tyres,
Wheel: Removal - Refitting, page 35A-1) ,
-the central console (see Centre console: Remov-
al - Refitting) (57A, Interior equipment).
116013
