57A-2
INTERIOR EQUIPMENT
Dashboard: Removal - Refitting
57A

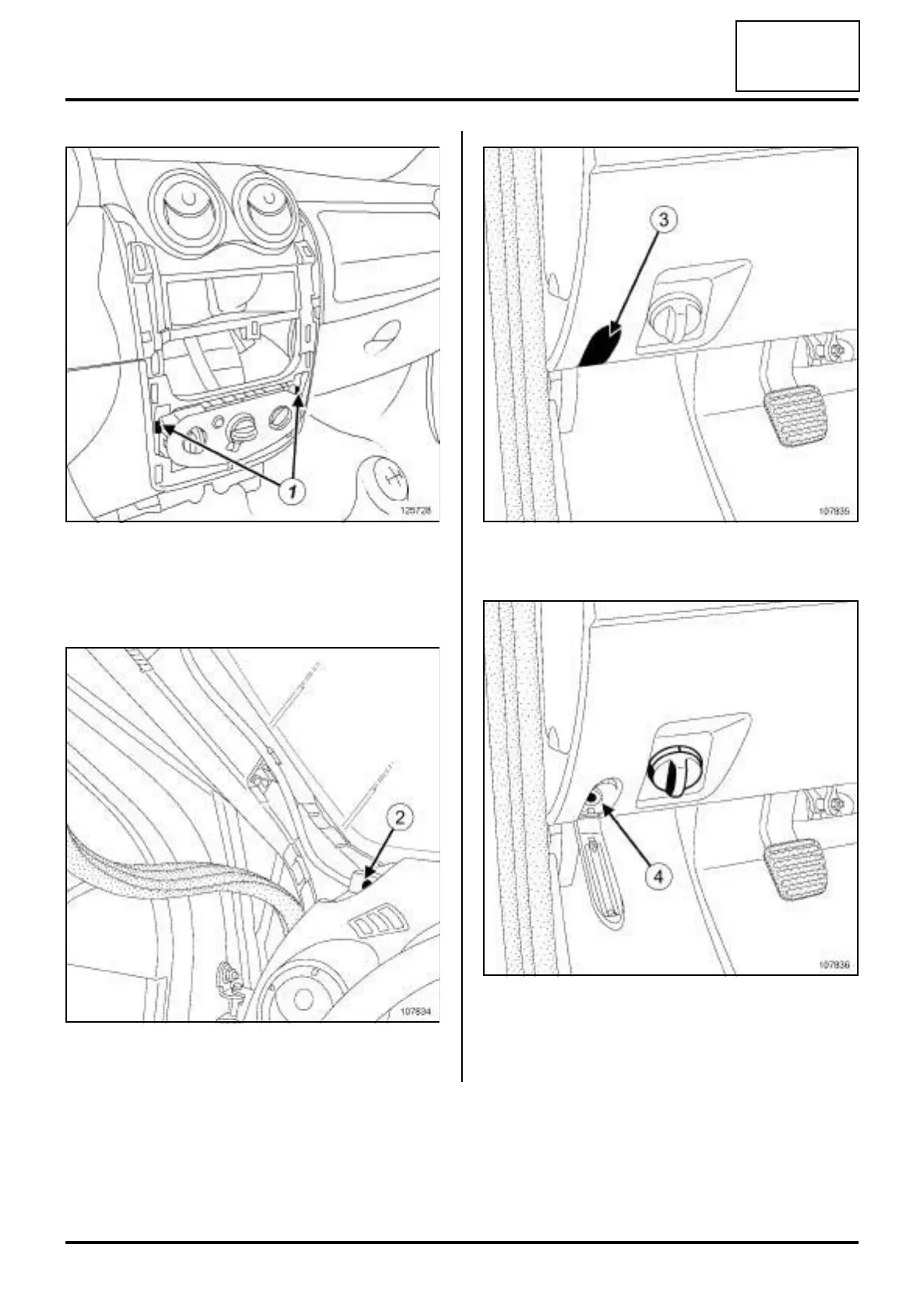

a Unclip the (1) control panel on the dashboard.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove the bolts (2) from both sides of the dash-
board.
a Unclip the covers (3) on both sides of the dash-
board.
a Remove the bolts (4) from both sides of the dash-
board.
125728
107834
107835
107836
