61A-18
HEATING
Distribution unit: Removal - Refitting
61A
a Remove:
-the driver's front airbag (see Driver's frontal air-
bag: Removal - Refitting) (88C, Airbags and pre-
tensioners),
-the steering wheel (see Steering wheel: Removal
- Refitting) (36A, Steering assembly),
-the steering column switch assembly (see Steer-
ing column switch assembly: Removal - Refit-
ting) (84A, Control - Signals),
-the instrument panel (see Instrument panel: Re-
moval - Refitting) (83A, Instrument panel),
-the storage compartment,
-the radio (see Radio: Removal - Refitting) (86A,
Radio),
-the dashboard (see Dashboard: Removal - Refit-
ting) (57A, Interior equipment),
-the front air distribution ducts (see 61A, Heating,
Front air distribution duct: Removal - Refitting,
page 61A-9) ,
-the steering column (see Steering column: Re-
moval - Refitting) (36A, Steering assembly).
a Unclip:

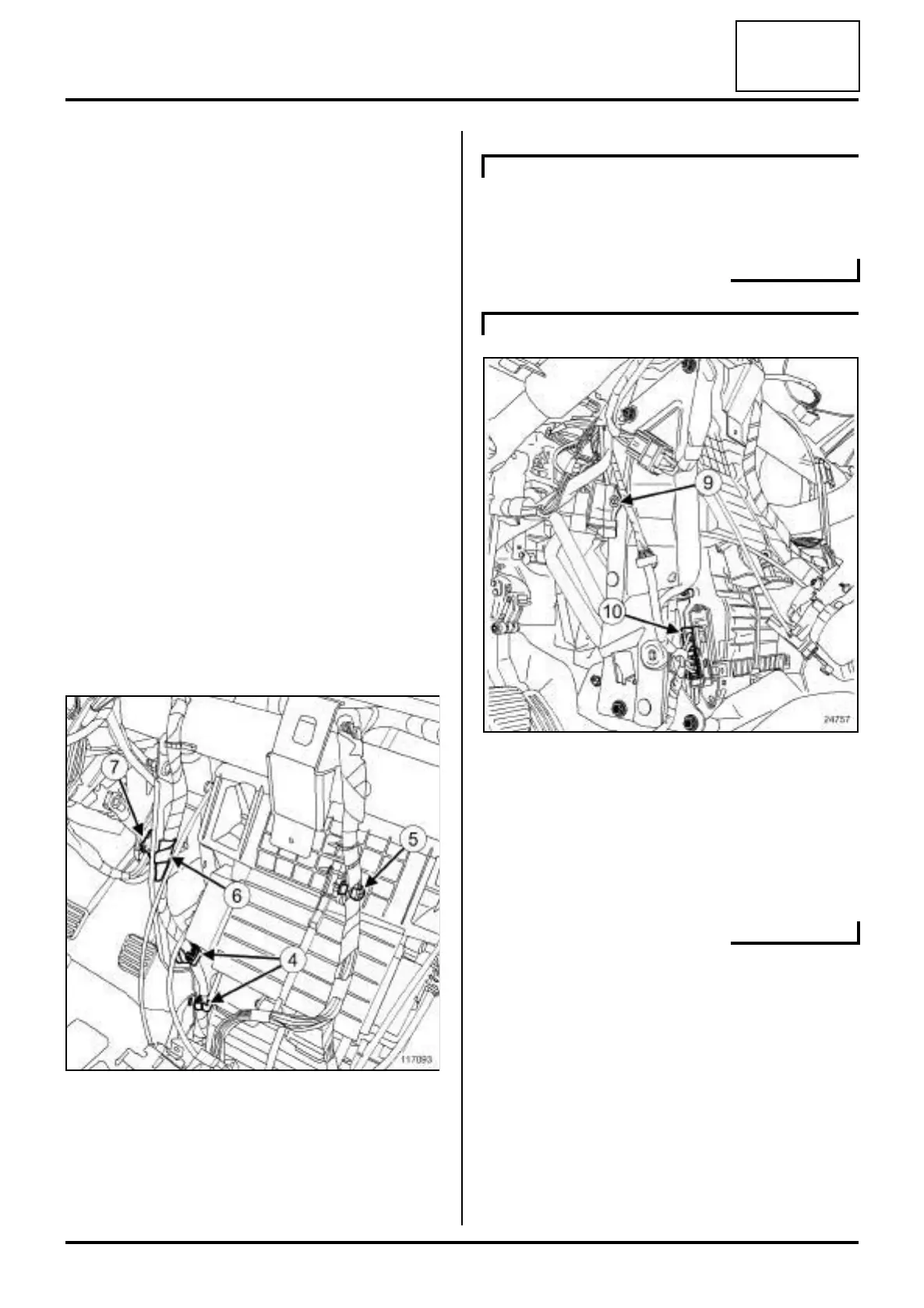

-the wiring at (4) ,
-the wiring on the distribution unit at (5) .
a Unclip the wiring at (6) .
a Unclip the ignition switch connector (7) from its
mounting.
a Remove:
- the heating resistor relay mounting bolt (9) ,
- the heating resistor relay mounting.
a Disconnect the connector (10) from the heating re-
sistor unit.
a Remove the dashboard cross member (see Dash-
board cross member: Removal - Refitting) (42A,
Upper front structure).
II - REMOVAL OPERATION
a Disconnect:
- the air conditioning control panel connector,
- the passenger compartment fan assembly connec-
tor,
- the passenger compartment fan assembly resistor
unit connector.
117093
LEFT-HAND DRIVE
DIESEL VEHICLE
24757
