10A-51
ENGINE AND CYLINDER BLOCK ASSEMBLY
Multifunction support: Removal - Refitting
K4M, and STANDARD HEATING RECIRCULATION
10A
REFITTING
I - REFITTING OPERATION
a Refit the multifunction support.

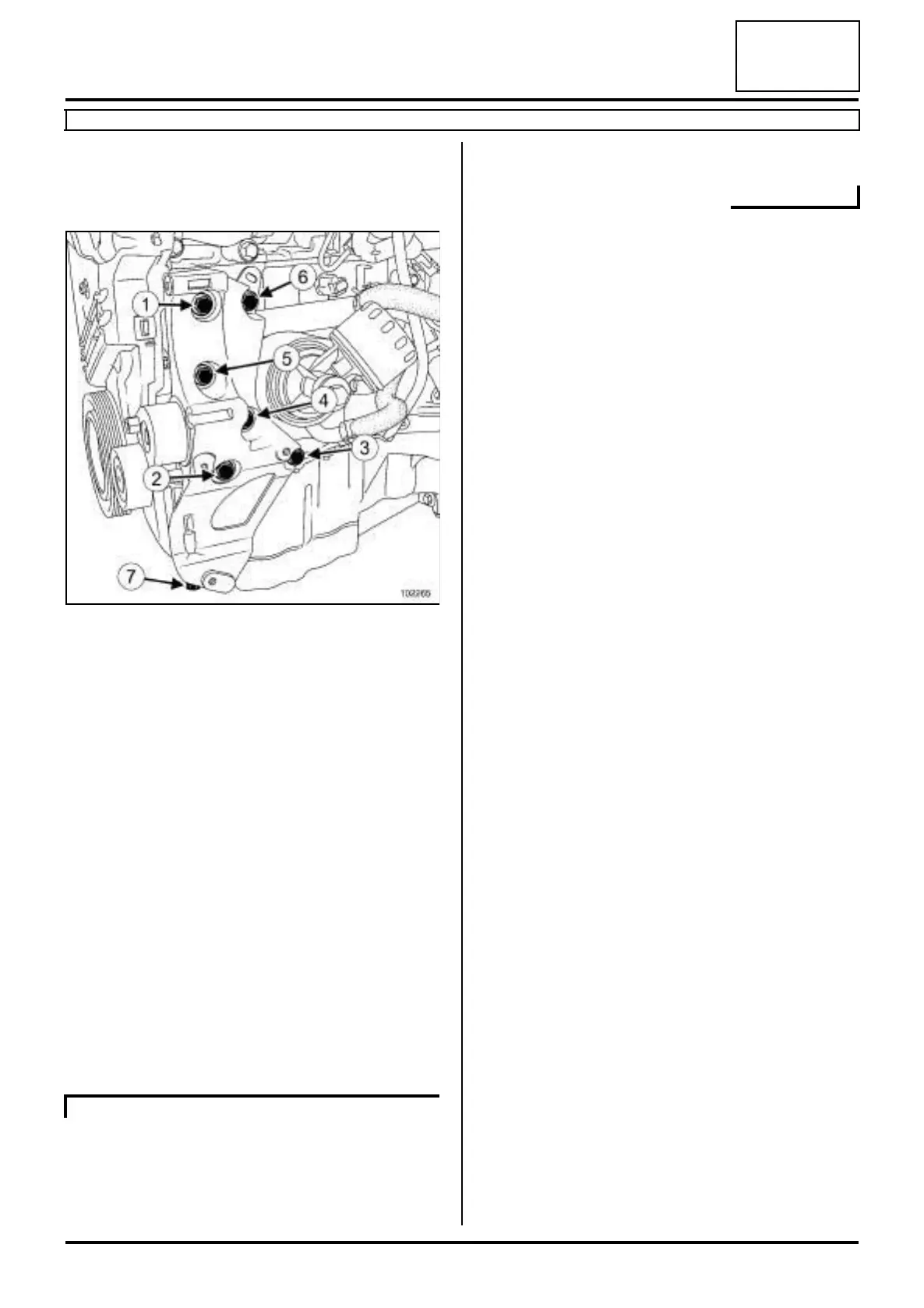

a Position bolts (1) to (7) without tightening them.
a Pretighten the multifunction support bolts (1) and (2)
on the cylinder block 5 N.m.
a Loosen bolts (1) and (2) a half-turn.
a Pretighten the multifunction support bolt (7) on the
sump 5 N.m.
a Pretighten the multifunction support bolts (1) and (2)
on the cylinder block 5 N.m.
a Pretighten the multifunction support bolts (3) , (4) ,
(5) , (6) on the cylinder block 5 N.m.
a Torque tighten in order (1), (2), (3), (4), (5), (6) the
multifunction support bolts on the cylinder
block (44 N.m).
a Torque tighten the multifunction support bolt on
the sump (25 N.m) (7) .
II - FINAL OPERATION
a Refit (see Power-assisted steering pump: Remo-
val - Refitting) (36B, Power-assisted steering):
-the power-assisted steering pump,
-the power-assisted steering pump bolts,
- the high pressure pipe bolt on the cylinder block.
a Refit:
-the alternator (see 16A, Starting - Charging, Al-
ternator: Removal - Refitting, page 16A-1) ,
- the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-2) .
a Refit the front bumper (see Front bumper assem-
bly: Exploded view) and (see Exterior body front
trim assembly: Exploded view) (55A, Exterior pro-
tection).
a Refit the front right-hand wheel (see Wheel: Re-
moval - Refitting) (35A, Wheels and tyres).
a Connect the battery (see Battery: Removal - Refit-
ting) (80A, Battery).
102265
