62C-12
V1
MR-453-X79-62C000$030.mif
CLIMATE CONTROL
Fault finding – Role of components
62C
Figure 1: System assembly

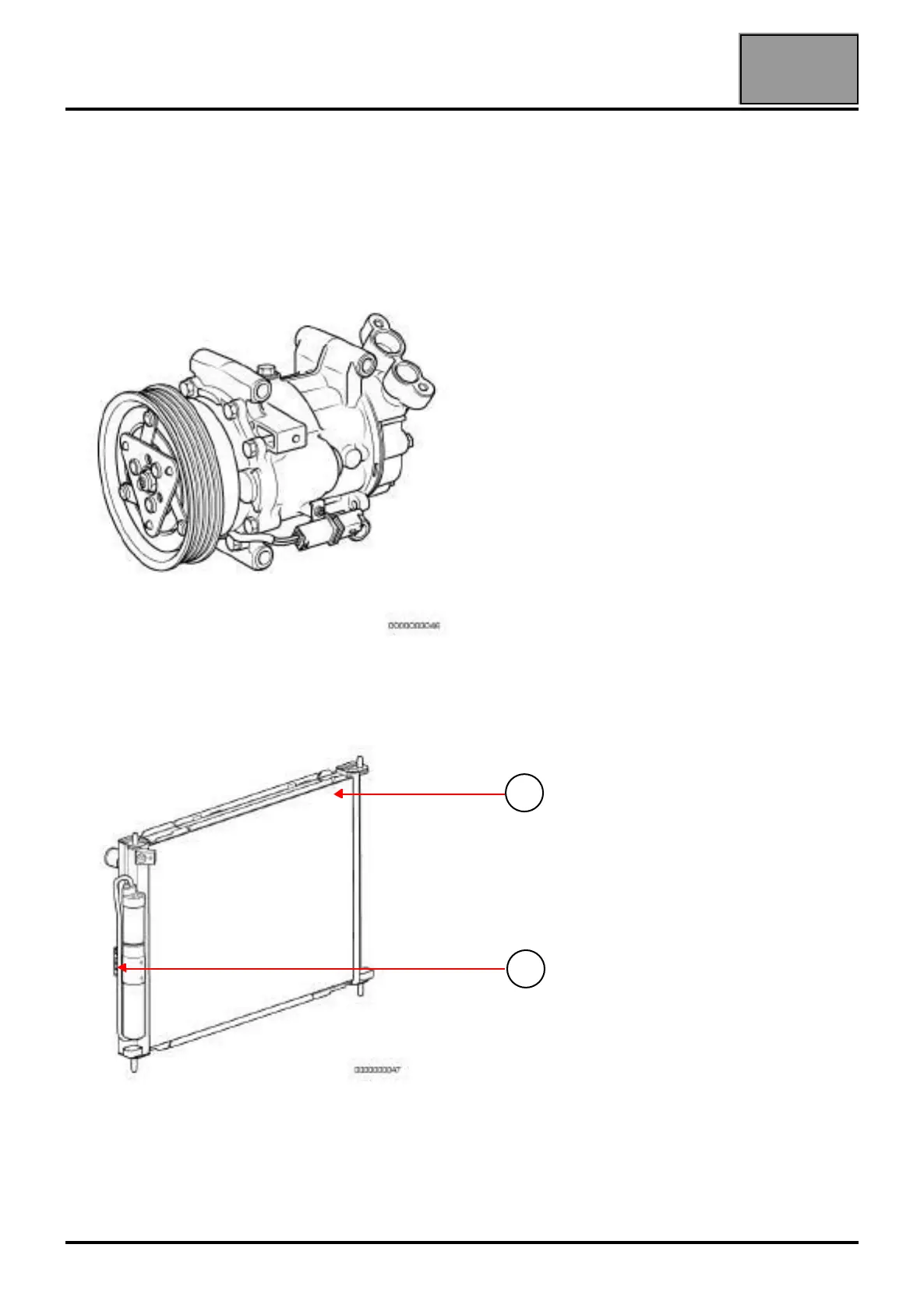

– Compressor:
The compressor is not activated when the exterior temperature is less than 3˚C, it is used to compress
the refrigerant into gas. The pressure can reach up to 28 bar.
– Condenser:
The condenser is composed of flat horizontal aluminium tubes. The pipes are divided by the vanes in order
to increase the air heat exchange and therefore cool the refrigerant fluid to produce condensation.
1) Condenser
2) Dehydrator reservoir
1
2
