CLIMATE CONTROL
Fault finding – Role of components
62C
–High and low pressure pipes:
• The High Pressure and Low Pressure pipes are composed of rigid aluminium pipes and flexible pipes which
enable engine-related movements to be absorbed.
• Two filler valves (on the High Pressure pipe and on the Low Pressure pipe) can be accessed in order to fill
(or drain) the refrigerant loop.
• The connections must be checked in the event of a refrigerant fluid leak.

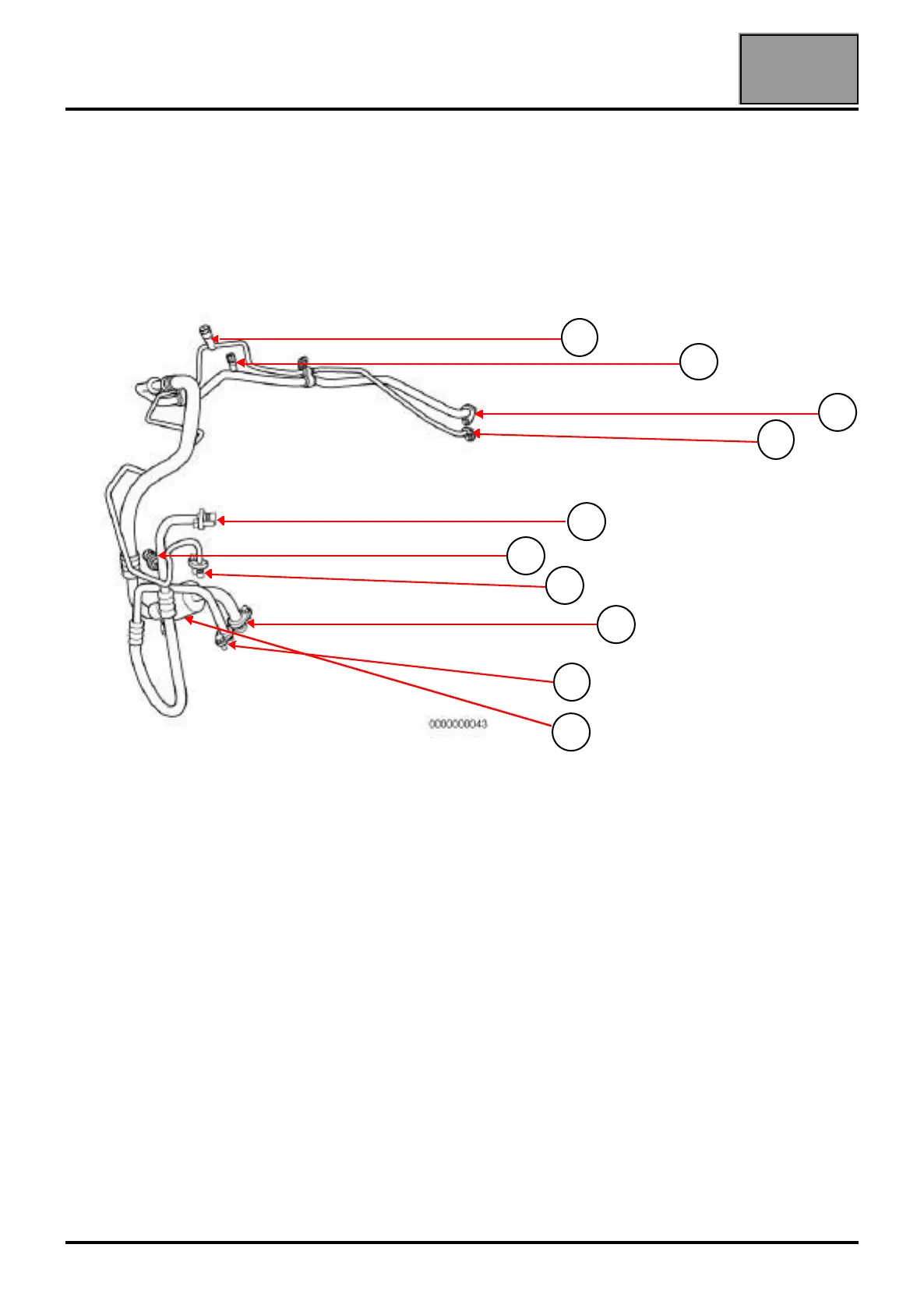

1) Buffering capacity
2) Expansion valve outlet
3) Expansion valve inlet
4) High pressure filler valve
5) Low pressure filler valve
6) Condenser inlet
7) Condenser outlet
8) Pressure sensor
9) Compressor inlet
10) Compressor outlet
Figure 6: Cold loop pipes
• HEATING COMPONENTS
– Heater matrix:
The external air entering the heating and air conditioning system (HVAC) is heated by the heater matrix.
1
4
5
2
3
6
8
7
9
10
