ENGINE AND CYLINDER BLOCK ASSEMBLY
Multifunction support: Removal - Refitting
K9K
10A
REFITTING
REFITTING OPERATION

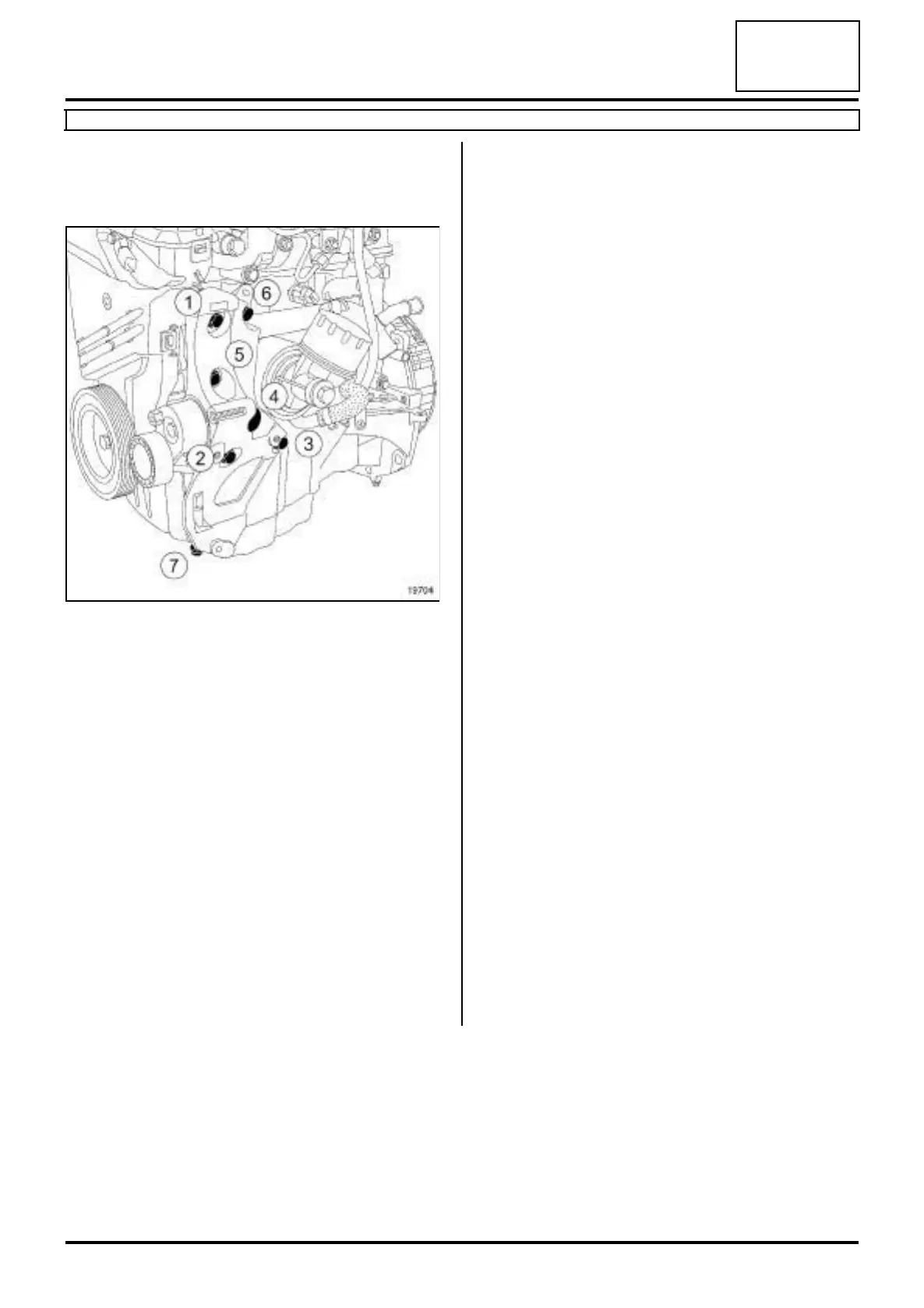

a Refit the multifunction support.
a Position bolts (1) to (7) without tightening them.
a Pretighten the multifunction support bolts (1) and (2)
on the cylinder block 5 N.m.
a Loosen bolts (1) and (2) a half-turn.
a Pretighten the multifunction support bolt (7) on the
sump 5 N.m.
a Pretighten the multifunction support bolts (1) and (2)
on the cylinder block 5 N.m.
a Pretighten the multifunction support bolts (3) , (4) ,
(5) , (6) on the cylinder block 5 N.m.
a Torque tighten in order (1) , (2) , (3) , (4) , (5) , (6) the
multifunction support bolts on the cylinder
block (44 N.m).
a Torque tighten the multifunction support bolt on
the sump (25 N.m) (7) .
a Proceed in the reverse order to removal.
