71A-6
BODY INTERNAL TRIM
Floor carpet: Removal - Refitting
71A
II - OPERATION FOR REMOVAL OF PART
CONCERNED

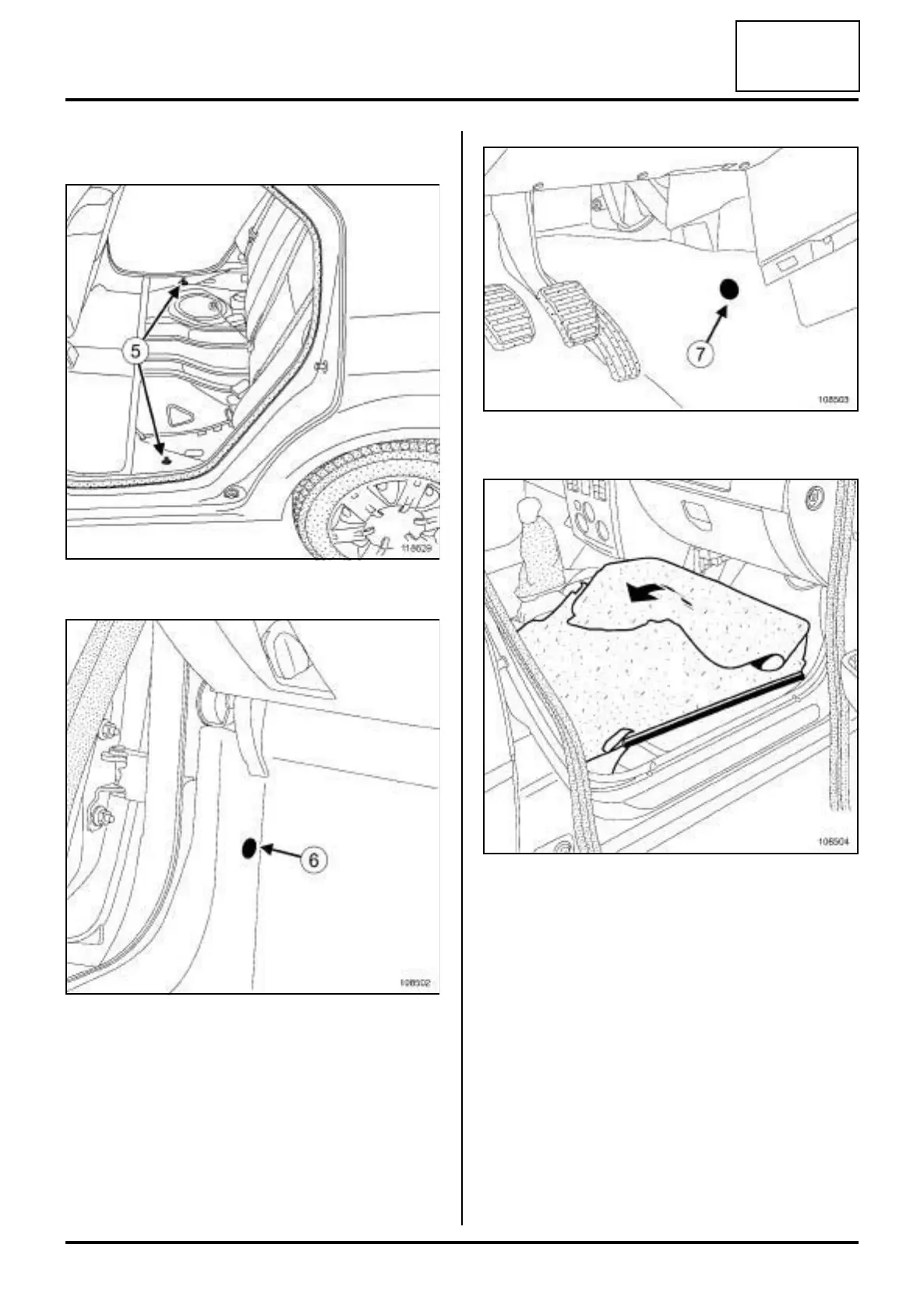

a Remove the retaining clips (5) .
a Remove clip (6) .
a Remove clip (7) .
a Pull away the carpet.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
a Refit:
- the floor carpet,
- the clips (6) and (7) .
a Refit the retaining clips (5) .
II - FINAL OPERATION
a Refit the rear bench seat base.
118629
108502
108503
108504
