84A-2
CONTROL - SIGNALS
Steering column switch assembly: Removal - Refitting
84A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Set the wheels straight ahead.
a Lock the airbag computer (see Fault finding - Re-
placement of components) (88C, Airbags and pre-
tensioners).
a Switch off the ignition.
a Disconnect the battery (see 80A, Battery, Battery:
Removal - Refitting, page 80A-2) .
a Remove:
-the driver's frontal airbag (see 88C, Air bag and
Pretensioners, Driver's frontal airbag: Removal
- Refitting, page 88C-6) ,
-the steering wheel (see Steering wheel: Removal
- Refitting) (36A, Steering).

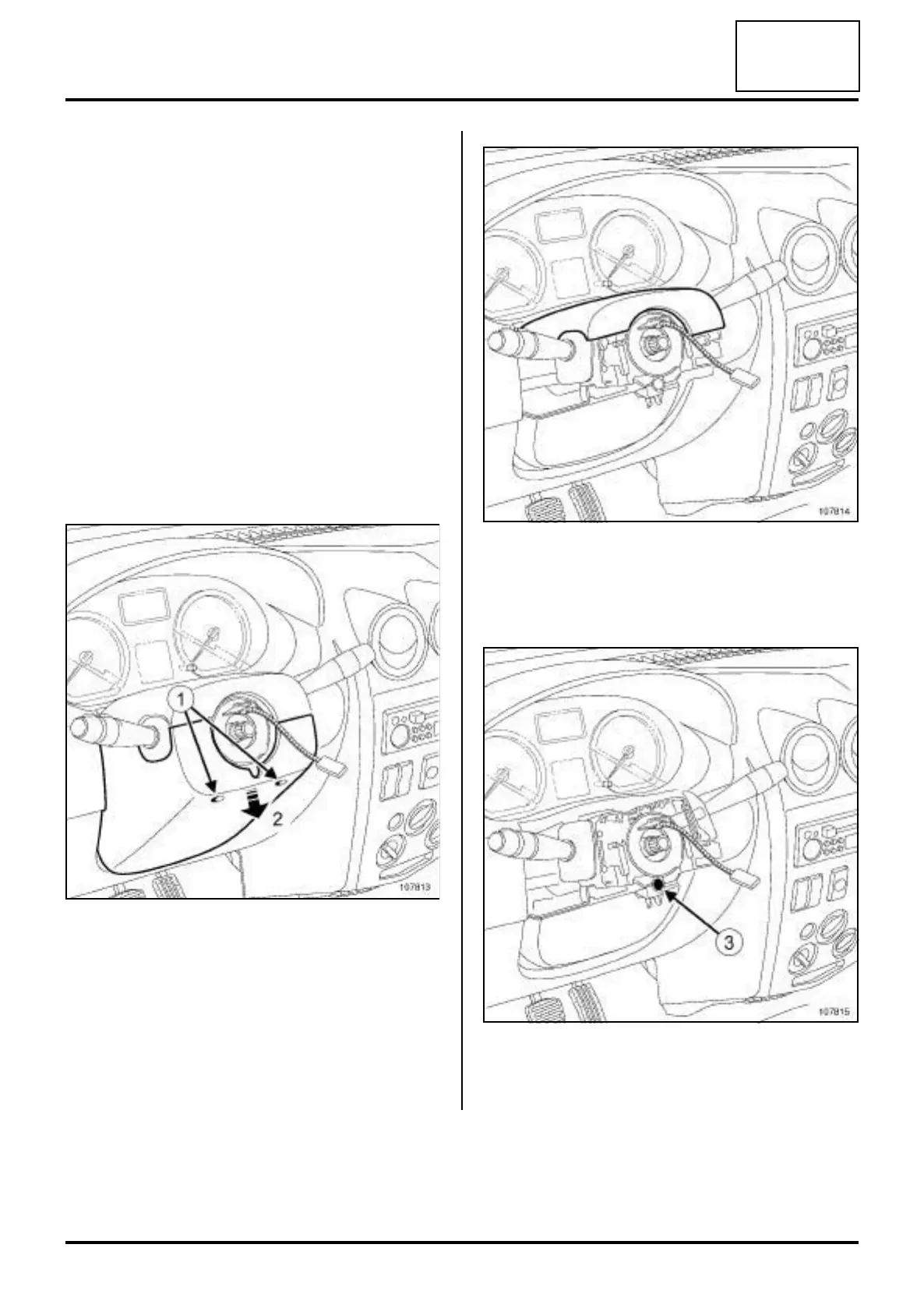

a Remove the two lower bolts (1) .
a Unclip the lower half-shell in the direction of the ar-
row (2) .
a Unclip the upper half-shell.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Loosen the bolts (3) securing the rotary switch.
a Tap the head of a screwdriver to unlock the cone
and release the steering column assembly.
107813
107814
107815
