88A-6
WIRING HARNESS
Engine wiring: Removal - Refitting
K4M
88A

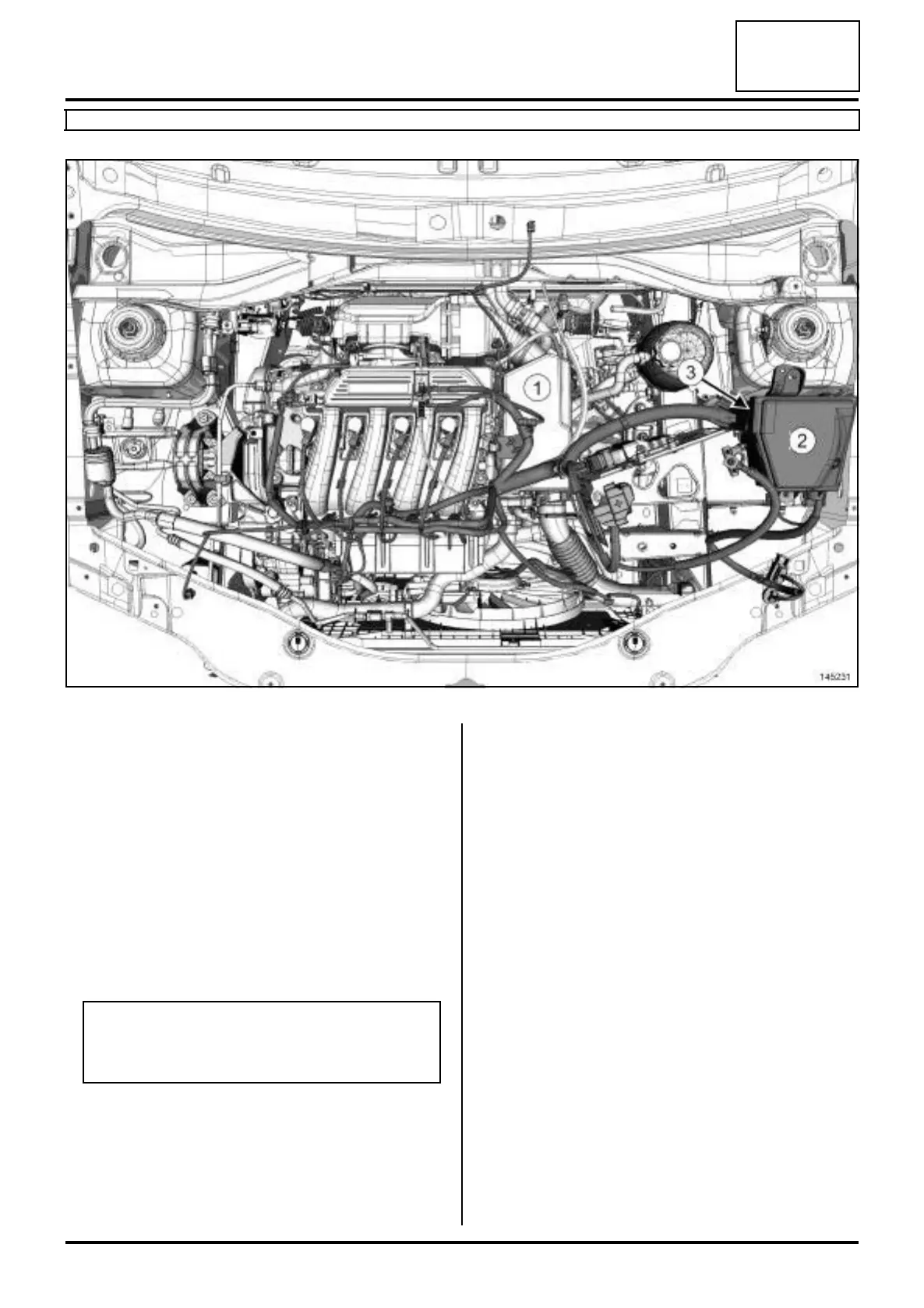

a Remove:
-the air resonator (1) (see Air resonator: Removal
- Refitting) (12A, Fuel mixture),
-the cover to access the engine compartment fuse
and relay box (2) ,
-the closure component (3) of the engine compart-
ment fuse and relay box,
-the engine undertray bolts,
-the engine undertray.
a Unclip the fuse holders and the engine harness re-
lays from their mountings.
If replacing the engine wiring
a Remove the fuses.
145231
Note:
Mark the position of the fuses and relays before
removal.
