88A-23
WIRING HARNESS
Engine wiring: Removal - Refitting
K9K, and 796
88A
a Disconnect all the connectors.

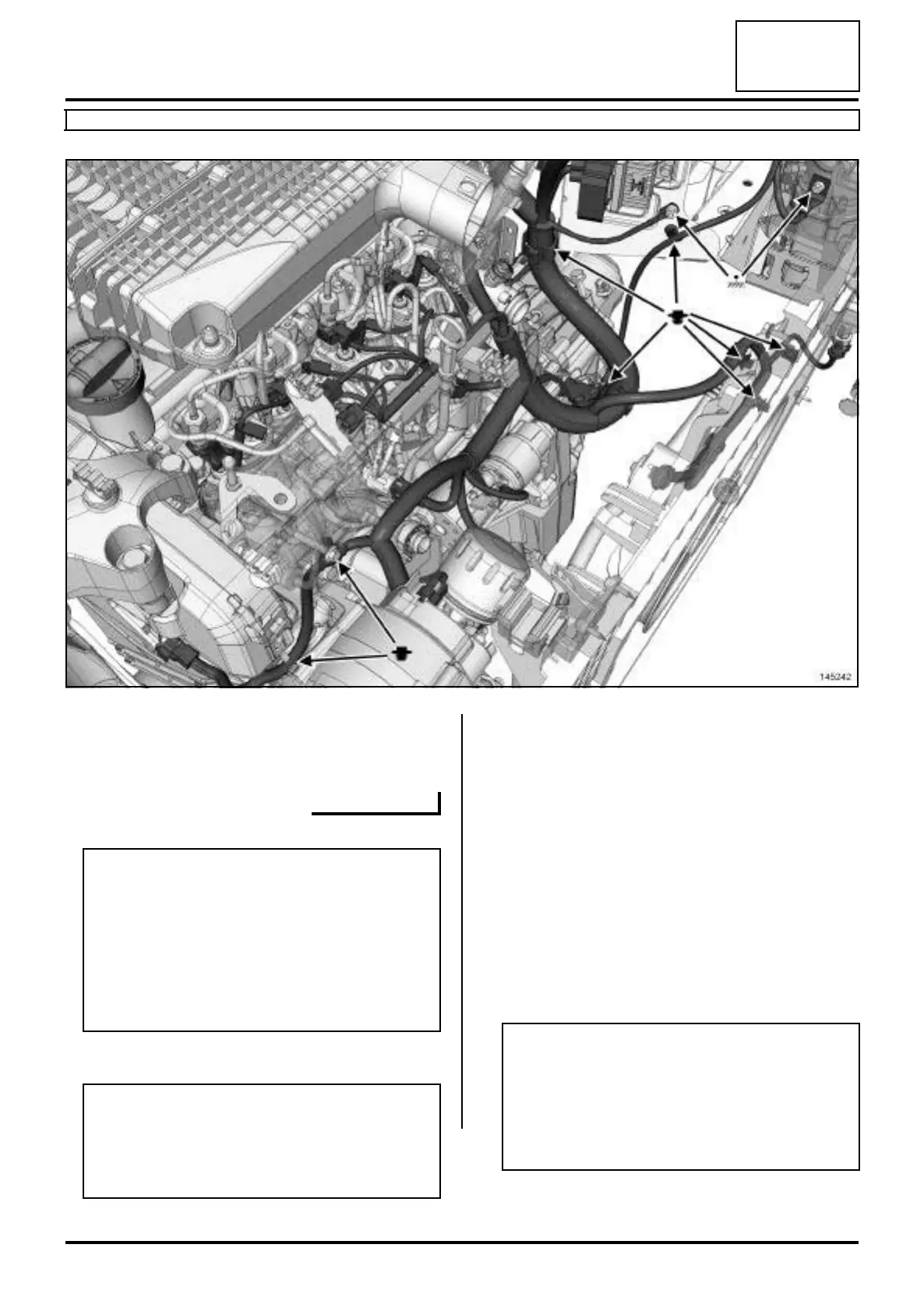

a Unclip the engine wiring where indicated.
a
a Remove the earth terminals.
a Remove the engine wiring.
REFITTING
I - REFITTING PREPARATION OPERATION
If replacing the engine wiring
a Refit the fuses.
a If replacing with a complete wiring harness, lock the
unused connectors (see Connectors: Sealing and
locking) (Technical Note 6015A, 88A, Wiring).
II - REFITTING OPERATION
a Proceed in the reverse order to removal.
a Torque tighten:
- the manual gearbox earth cable bolt (24 N.m),
145242
Note:
Before removing the earth terminal, mark its
position using a indelible pencil by drawing a
line on the earth terminal and on the gearbox
casing.
When reassembling, improper positioning of the
earth terminal on the gearbox casing could result
in damage to the earth terminal or earth wiring.
WARNING
To prevent any damage during the removal oper-
ation, check that the wiring is free from its mount-
ings (retaining clip, plastic clip, adhesive tape,
connector, etc.).
Note:
Refit the earth terminal, aligning the indelible
marks on the gearbox casing.
When reassembling, improper positioning of the
earth terminal on the gearbox casing could result
in damage to the earth terminal or earth wiring.
