Renault Duster 2007 - Page 999

88A-27
WIRING HARNESS
Passenger compartment front wiring: Removal - Refitting
88A
3 - Passenger compartment front wiring section on
the floor
a Remove:
-the front seats (see Front seat assembly: Ex-
ploded view) (75A, Front seat frames and mecha-
nisms),
-the central console (see Centre console: Remov-
al - Refitting) (57A, Interior equipment),
-the floor carpet (see Roof trim assembly: Explod-
ed view) (71A, Body internal trim),
-the B-pillar trim (see Interior body side trim as-
sembly: Exploded view) (71A, Body internal trim).
4 - Passenger compartment front wiring section in
the front doors
a Remove the front side door trim (see Front side
door trim: Removal - Refitting) (72A, Side opening
elements trim).
5 - Passenger compartment front wiring section in
the roof
a Remove:
- the windscreen pillar trim (see Interior body side
trim assembly: Exploded view) (71A, Body inter-
nal trim).
- the headlining partially (see Roof trim assembly:
Exploded view) (71A, Body internal trim).
II - REMOVAL OPERATION

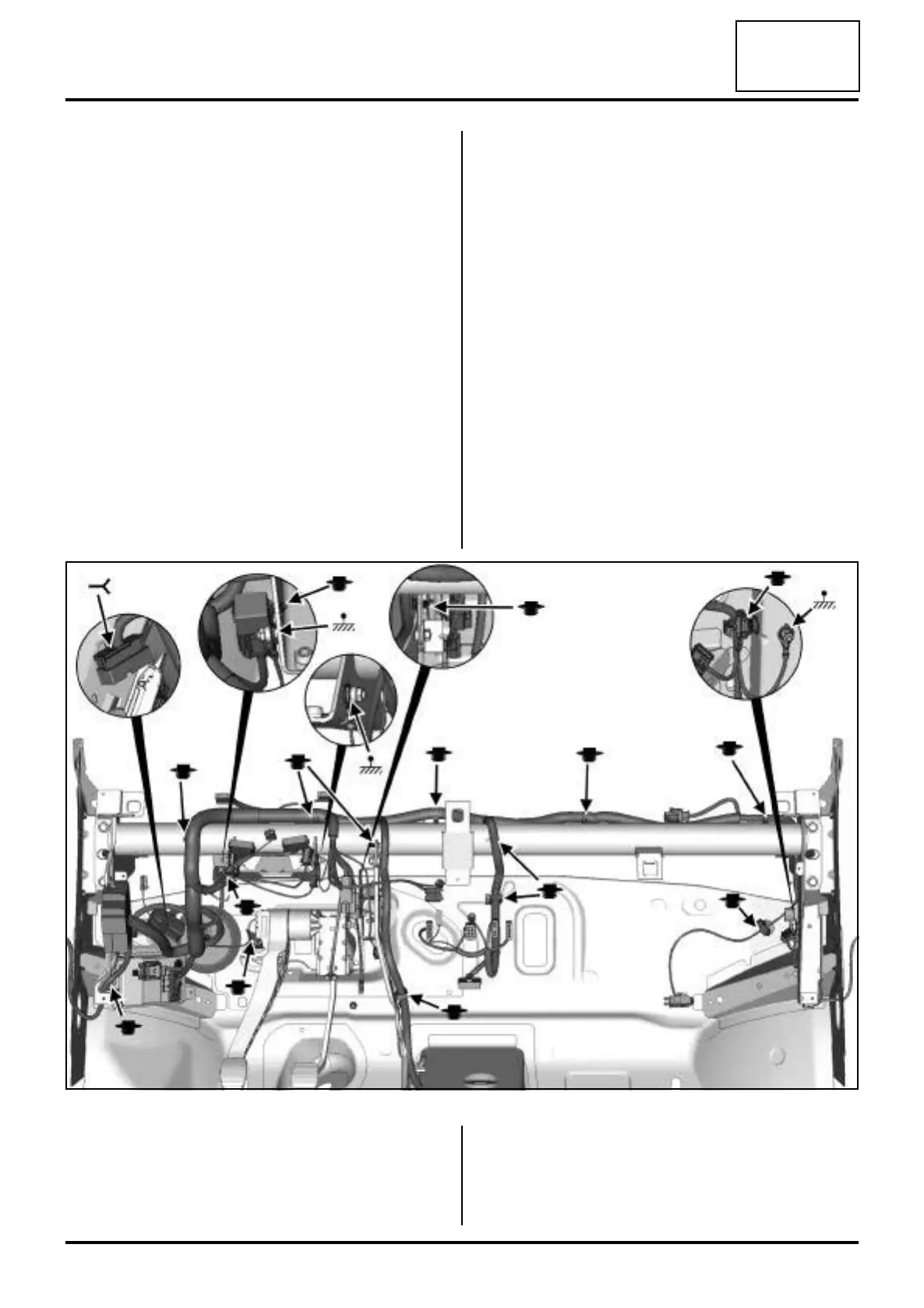

1 - Passenger compartment front wiring section on
the dashboard cross member
a Disconnect all the connectors.
a Unclip the wiring section where indicated.
a Remove the earth terminals where indicated.
a Remove the wiring section.
144393
