10.1.64 SHLD (Shift Logical Dynamically): Shift Instruction
Format Operation Instruction Code Cycle T Bit
SHLD Rm, Rn When Rm ≥ 0,
Rn << Rm → Rn
When Rm < 0,
Rn >> Rm → [0 → Rn]
0100nnnnmmmm1101 1 —
Description: This instruction logically shifts the contents of general register Rn. General register
Rm specifies the shift direction and the number of bits to be shifted.
Rn register contents are shifted to the left if the Rm register value is positive, and to the right if
negative. In a shift to the right, 0s are added at the upper end.
The number of bits to be shifted is specified by the lower 5 bits (bits 4 to 0) of the Rm register. If
the value is negative (MSB = 1), the Rm register is represented as a two's complement. The left
shift range is 0 to 31, and the right shift range, 1 to 32.

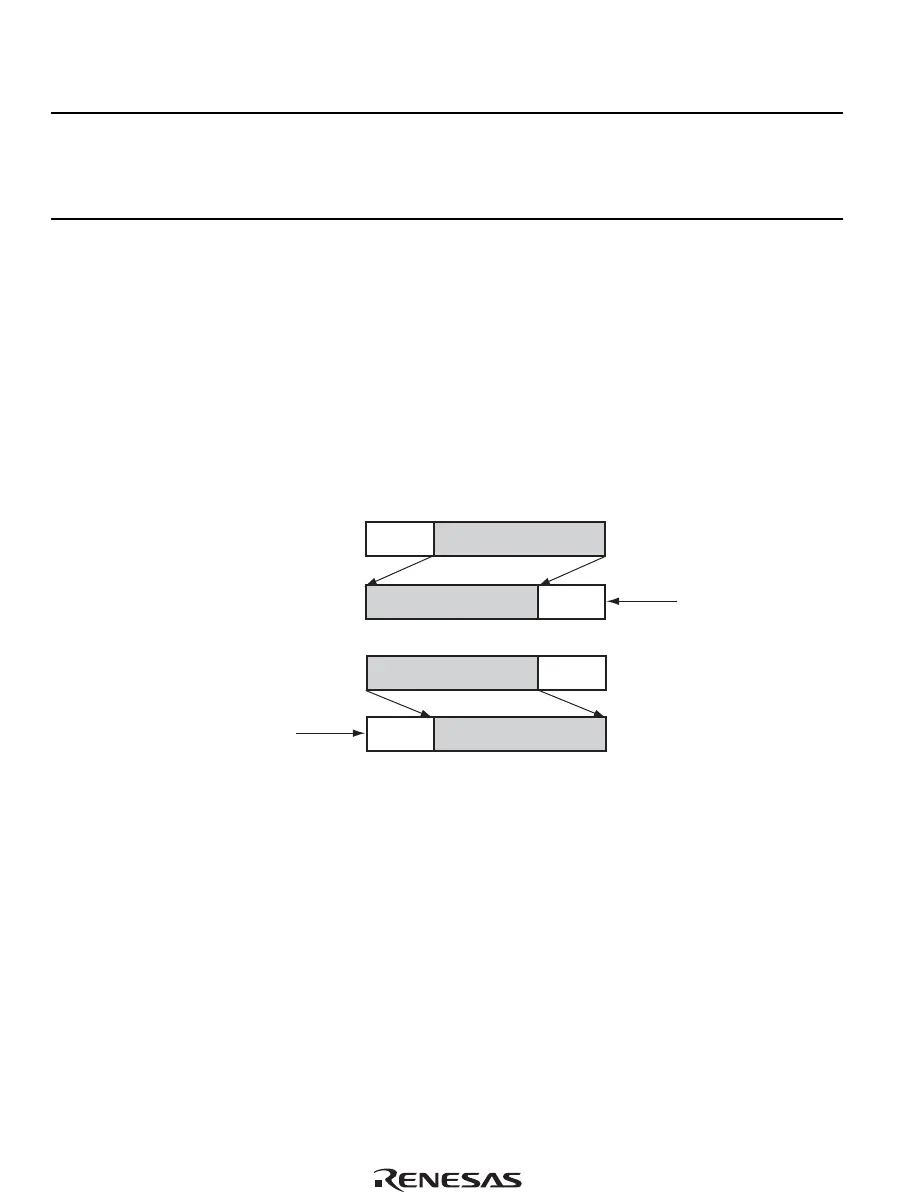

MSB LSB
MSB
0
LSB
0
Rm ≥ 0
Rm < 0
Notes: None
