Renesas SuperH SH-4A User Manual

Rev. 1.50, 10/04, page 25 of 448
3.2 Addressing Modes
Addressing modes and effective address calculation methods are shown in table 3.2. When a
location in virtual memory space is accessed (AT in MMUCR = 1), the effective address is
translated into a physical memory address. If multiple virtual memory space systems are selected
(SV in MMUCR = 0), the least significant bit of PTEH is also referenced as the access ASID. For
details, see section 7, Memory Management Unit (MMU).

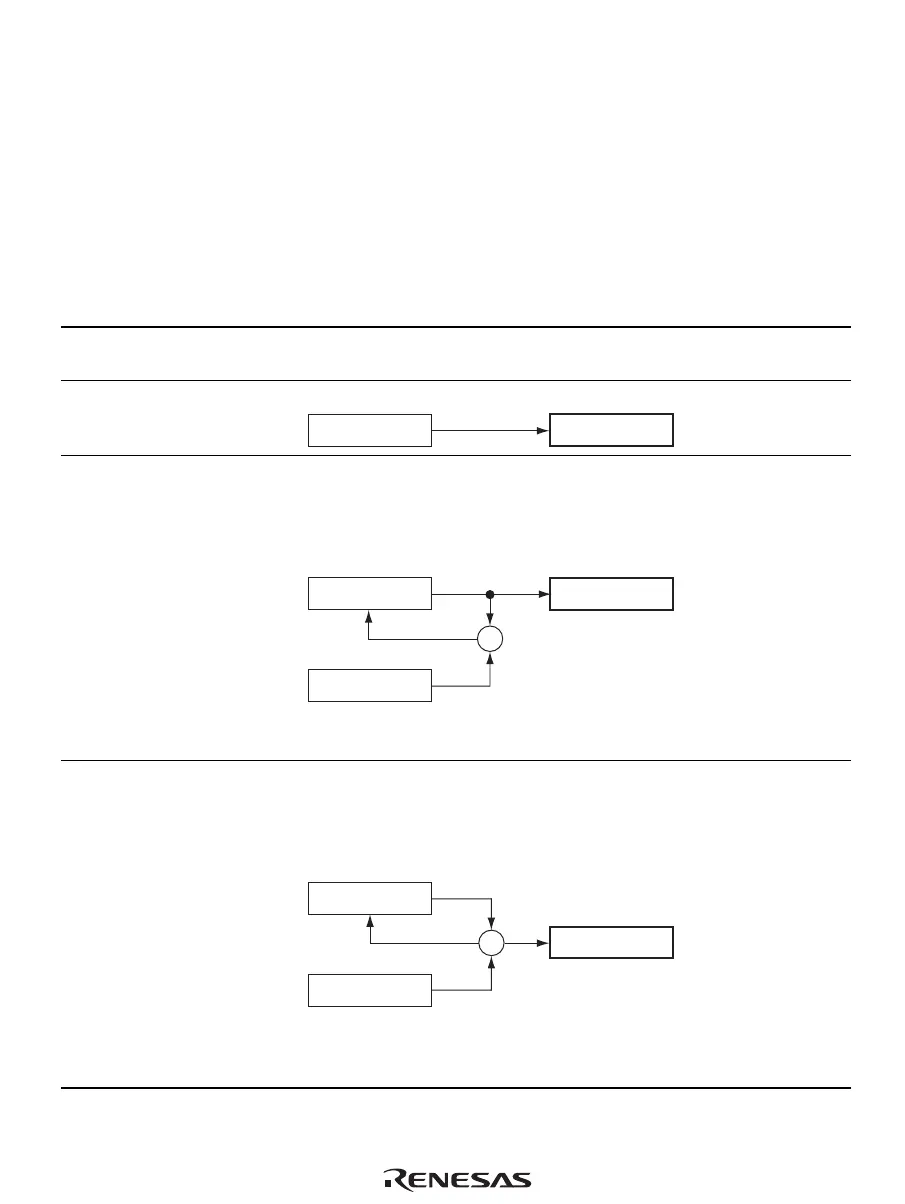

Table 3.2 Addressing Modes and Effective Addresses
Addressing
Mode
Instruction
Format Effective Address Calculation Method
Calculation
Formula
Register
direct
Rn Effective address is register Rn.
(Operand is register Rn contents.)
—
Register
indirect
@Rn Effective address is register Rn contents.
Rn Rn
Rn → EA
(EA: effective
address)
Register
indirect
with post-
increment
@Rn+ Effective address is register Rn contents.
A constant is added to Rn after instruction
execution: 1 for a byte operand, 2 for a word
operand, 4 for a longword operand, 8 for a
quadword operand.
Rn Rn
1/2/4
+
Rn + 1/2/4
Rn → EA
After
instruction
execution
Byte:
Rn + 1 → Rn
Word:
Rn + 2 → Rn
Longword:
Rn + 4 → Rn
Quadword:
Rn + 8 → Rn
Register
indirect
with pre-
decrement
@–Rn Effective address is register Rn contents,
decremented by a constant beforehand:
1 for a byte operand, 2 for a word operand,
4 for a longword operand, 8 for a quadword
operand.
Rn
1/2/4
Rn – 1/2/4/8
–
Rn – 1/2/4
Byte:
Rn – 1 → Rn
Word:
Rn – 2 → Rn
Longword:
Rn – 4 → Rn
Quadword:
Rn – 8 → Rn
Rn → EA
(Instruction
executed
with Rn after
calculation)
