RFL Electronics RFL 9300 - Figure 5-1. Mounting Dimensions of RFL 9300 Chassis Without Single Pole Option

To Next Page

To Previous Page

NOTE: Overall depth of chassis is 16 in. (40.6 cm)

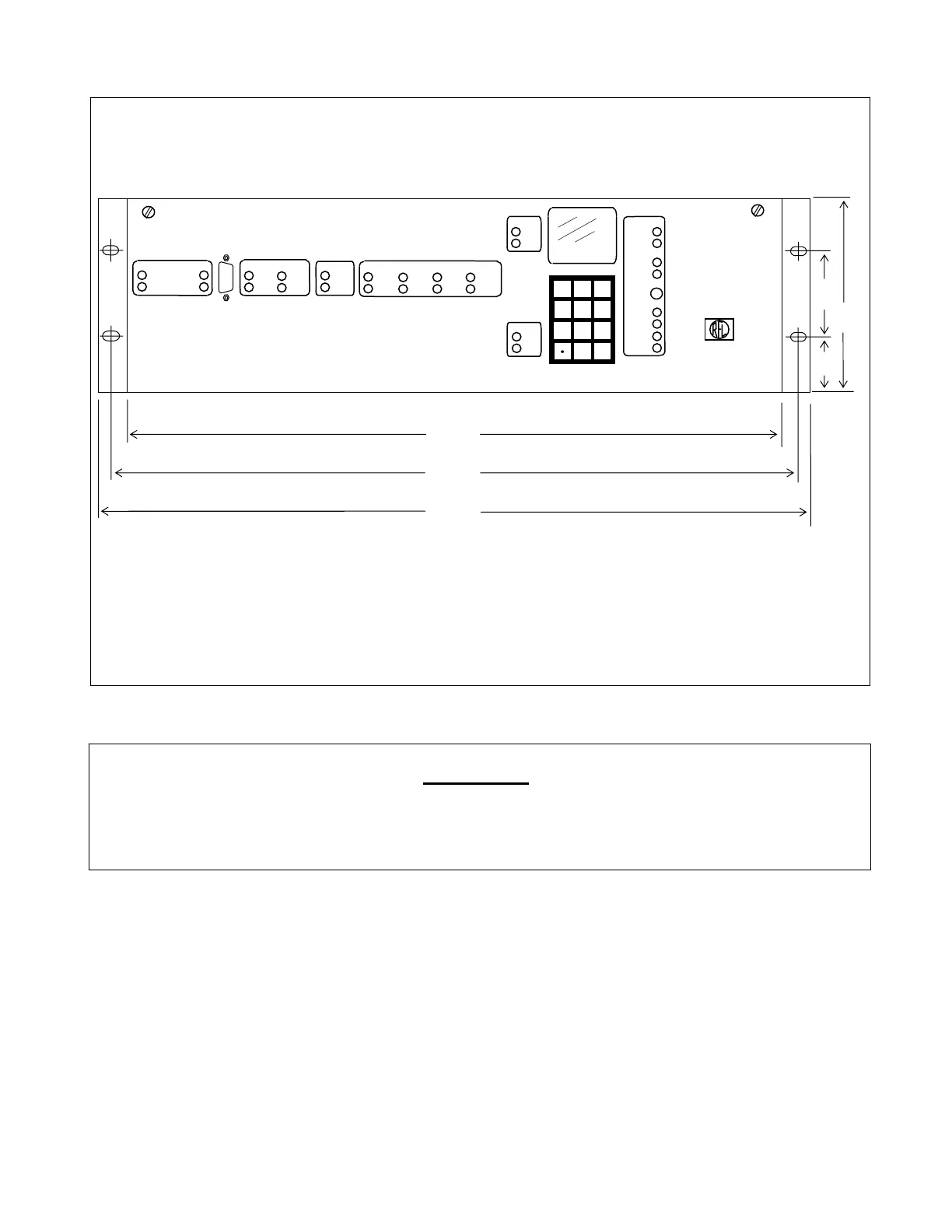

Figure 5-1. Mounting dimensions of RFL 9300 chassis without single pole option

WARNING

ON INITIAL INSTALLATION ENSURE THAT THE CPU AND DRIVER MODULES

ARE FULLY SEATED INTO CONNECTORS BEFORE POWERING ON UNIT

17.157 in.

(43.18 cm)

18.312 in.

(46.51 cm)

19.000 in.

(48.26 cm)

RFL 9300

Charge Comparison System

ENT

CH1 CH2

ALARM ALARM

TX ON TX ON

CH1

P - P

BER

CH2

P - P

BER

ALARMS

TX/RX

SYS

A B C G

ALARM ALARM ALARM ALARM

FD FD FD FD

TRIP

DTT

RESET

PROTECTION

DIS/RD

EN/GN

BACKUP

DTT

1.48 in.

(3.76 cm)

2.250 in.

(5.71 cm)

5.219 in.

(13.26

cm)

RFL Electronics Inc.

RS232

RFL 9300 RFL Electronics Inc.

October 20, 2004 5-3 (973) 334-3100
